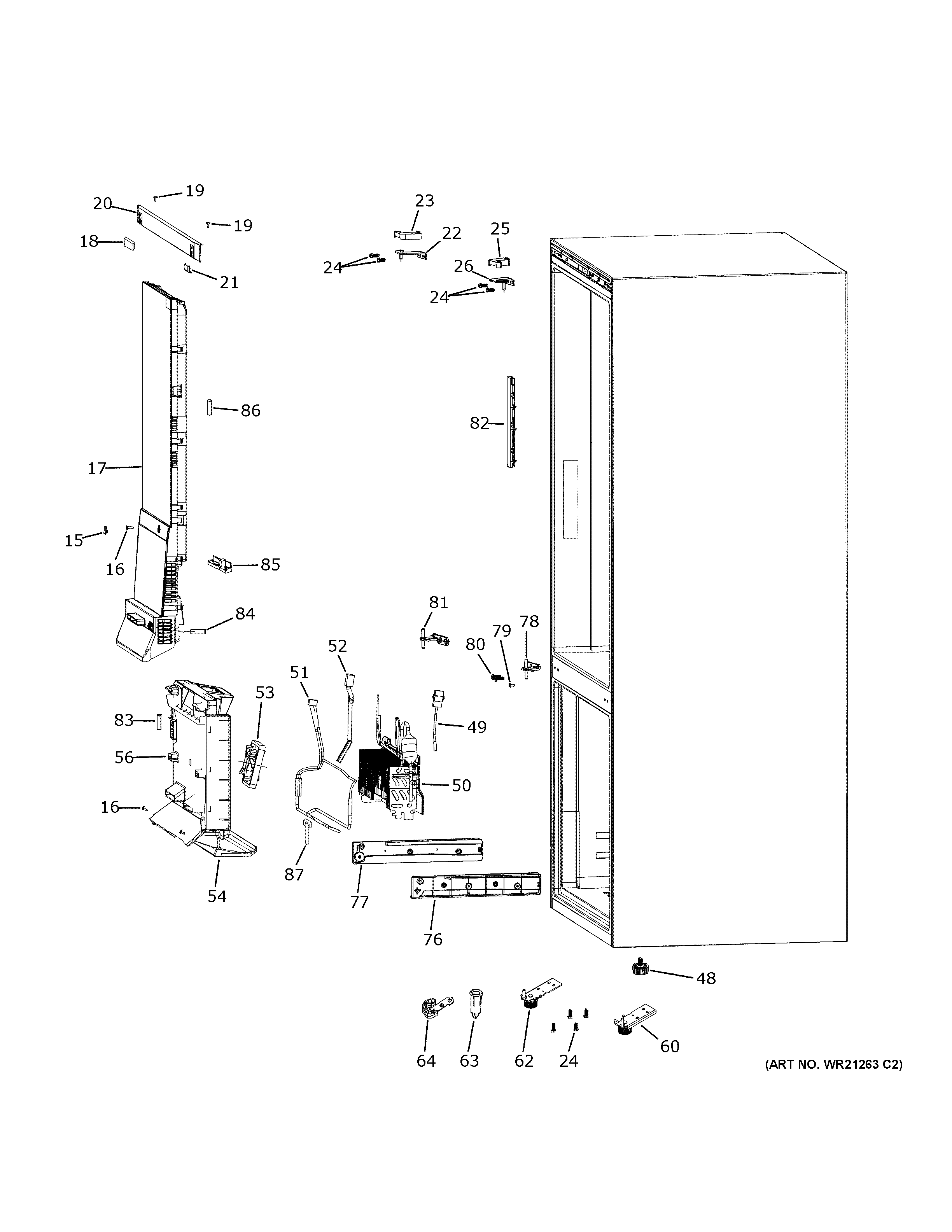

GBE17HYRBFS CABINET

Products

Position	Product
15	AIR TOWER SCREW HOLE COVER
16	WR01X28345 GE Screw
17	WR14X39777 GE Air Tower
18	WR55X31994 GE Refrigerator Reed Switch
19	SCREW ST3.9 X 12
20	WR02X39778 GE Top Front Cap
21	BOX COVER
22	WR13X29732 GE Refrigerator Top Hinge
23	TOP HINGE COVER – LEFT
24	WR01X28375 GE M5 x 16 Screw
25	WR13X42146 GE Top Right Hinge Cover
26	WR13X29735 GE Refrigerator Top Right Hinge
48	LEVELING LEG
49	WR55X29702 GE Refrigerator Defrost Sensor
50	EVAPORATOR
51	WR09X29703 GE Defrost Heater
52	WR55X30491 GE Refrigerator Defrost Harness
53	WR60X32088 GE Refrigerator Freezer Evaporator Fan Assembly
54	WR14X29705 GE Drain Trough
56	WR13X39792 GE Evaporator Cover
60	BOTTOM LEFT HINGE & LEVELING LEG
62	WR13X37799 GE Refrigerator Bottom Left Hinge & Leveling Leg
63	WR13X39794 GE Bushing Hinge
64	WR01X39795 GE Door Stop
76	FREEZER GLIDE – RIGHT
77	FREEZER GLIDE – LEFT
78	WR13X39810 GE Right Middle Hinge
79	SCREW
80	SCREW
81	REVERSIBLE MIDDLE HINGE
82	TEMPERTURE CONTROL BOARD ASM
83	WR09X27791 GE Refrigerator Freezer Temperature Control
84	WR55X28411 GE Refrigerator Freezer Sensor
85	WR14X29701 GE Refrigerator Damper
86	WR55X28330 GE Refrigerator Upper Fresh Food Thermistor
87	WR02X44465 GE Heat Probe Washer
