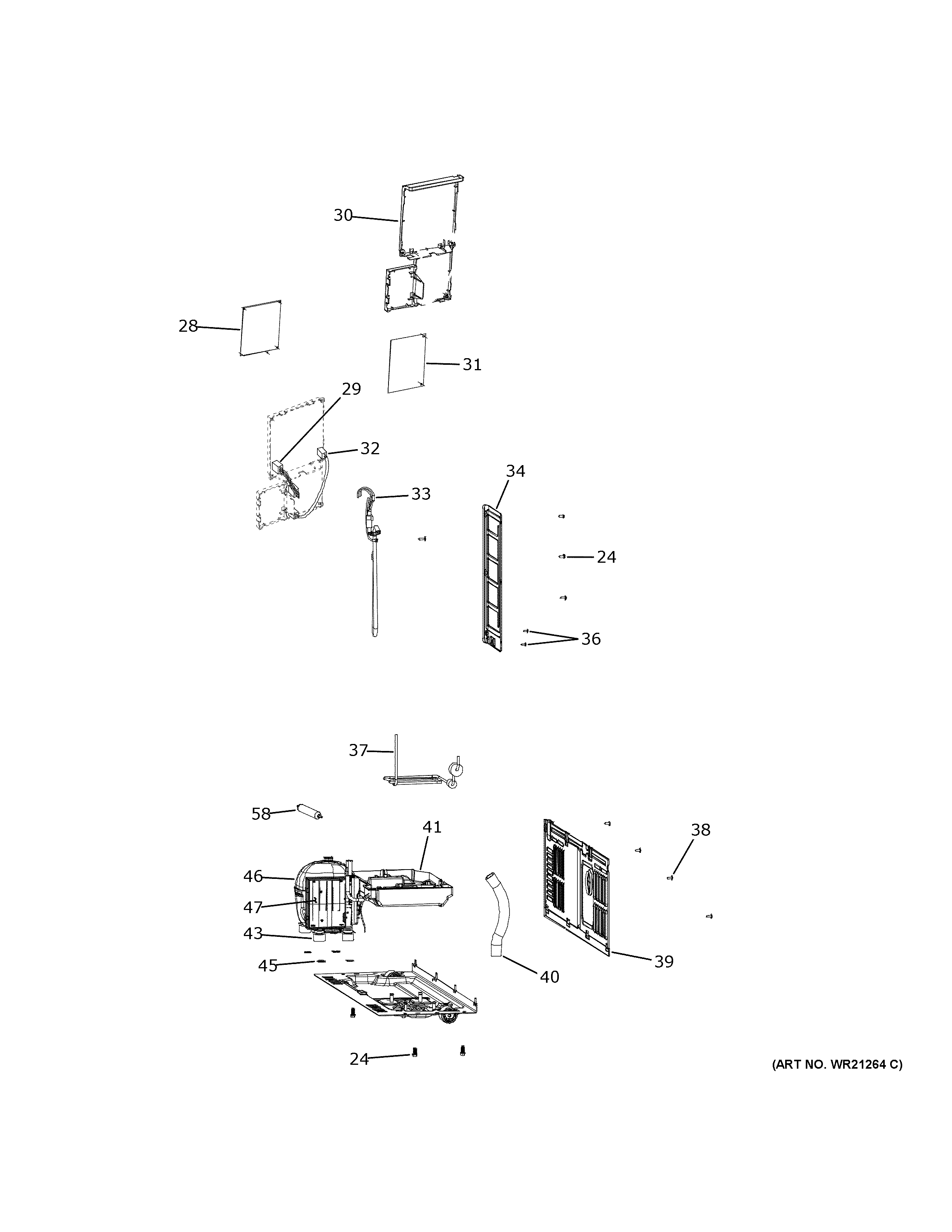

GBE17HYRCFS MACHINE COMPARTMENT

Products

Position	Product
24	WR01X28375 GE M5 x 16 Screw
28	WR02X39779 GE Main Control Board
29	BOARD HARNESS – DC
30	CONTROL BOARD BRACKET
31	WR55X33545 GE Refrigerator Power Supply Board
32	BOARD HARNESS – AC
33	WR55X28528 GE Refrigerator Power Cord
34	CONTROL BOARD COVER
36	WR01X27757 GE Screw
37	AUXILIARY CONDENSER
38	WR01X29729 GE Screw
39	ACCESS COVER
40	WR02X39787 GE Drain Tube
41	AUXILIARY CONDENSER DRAIN PAN
43	GROMMET
45	COMPRESSOR CLIP
46	COMPRESSOR
47	INVERTER
58	WR87X30875 GE Refrigerator R600 Dryer with Red Cap
