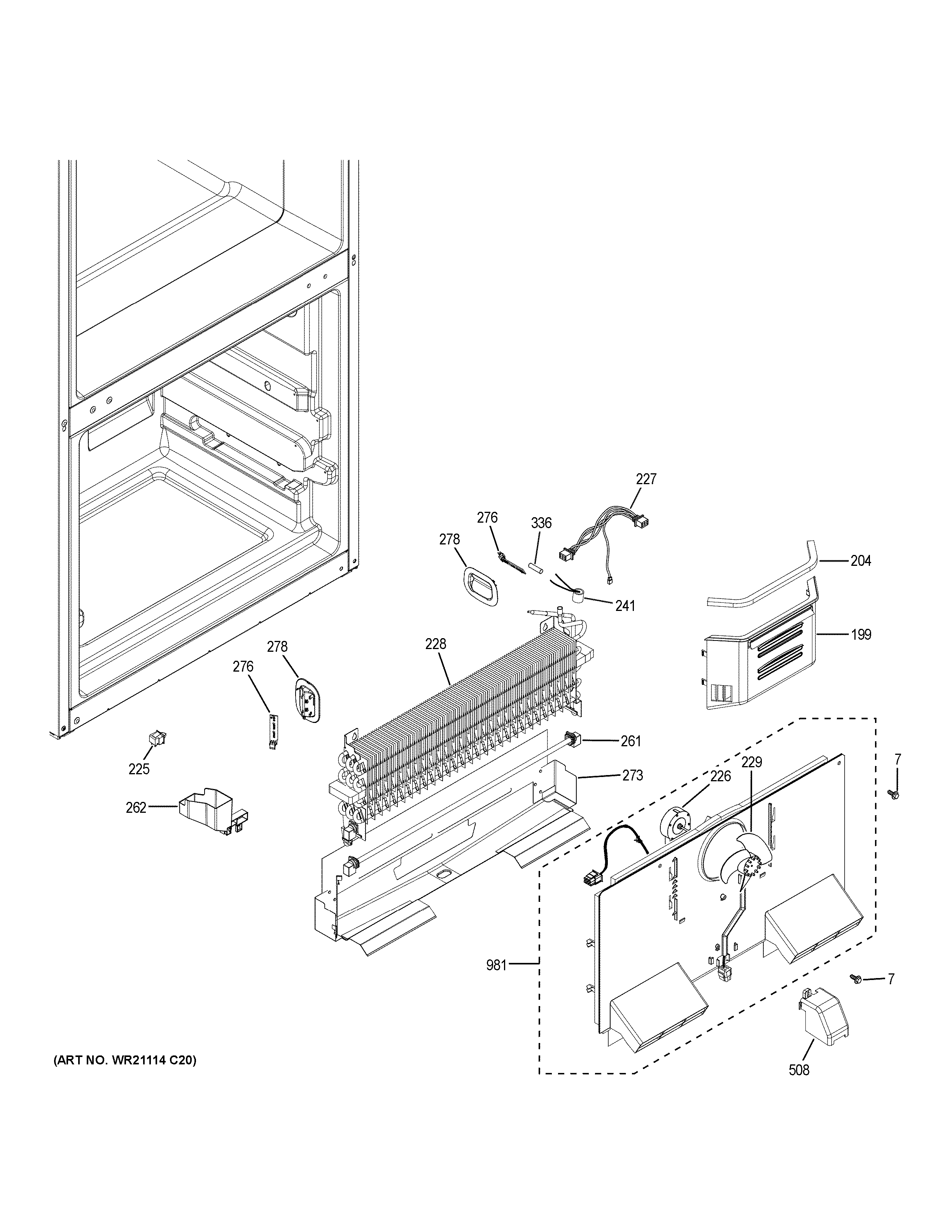

GBE21DGKARBB FREEZER SECTION

GBE21DGKARBB FREEZER SECTION

Written by

in

GBE21DGKARBB FREEZER SECTION

Products

PositionProduct
7WR01X10606 GE Refrigerator Screw 8-18 CA HX 1/2 S
199WR17X40007 GE Refrigerator Evaporator Cover & Fan
204WR14X24804 GE Refrigerator Adhesive Foam Strip
225WR23X37285 GE Light Switch
226WR60X10185 GE Refrigerator Evaporator Fan Motor
227WR55X28649 GE Refrigerator Evaporator Harness
228WR85X25309 GE Refrigerator Low Side Assembly
229EVAPORATOR FAN BLADE
241THERMOSTAT DEF
261WR51X25156 GE Refrigerator Heater Defrost Assembly
262WR29X31008 GE Refrigerator Cup Fill IM Assembly
273TROUGH DRAIN ASM
276WR55X24870 GE Refrigerator Board LED Light Assembly
278WR02X38285 GE Light Shield
336WR55X10025 GE Refrigerator Temperature Sensor
508WR02X40125 GE Refrigerator Connector Cover
981WR49X40250 GE Refrigerator Evaporator Cover and Fan
