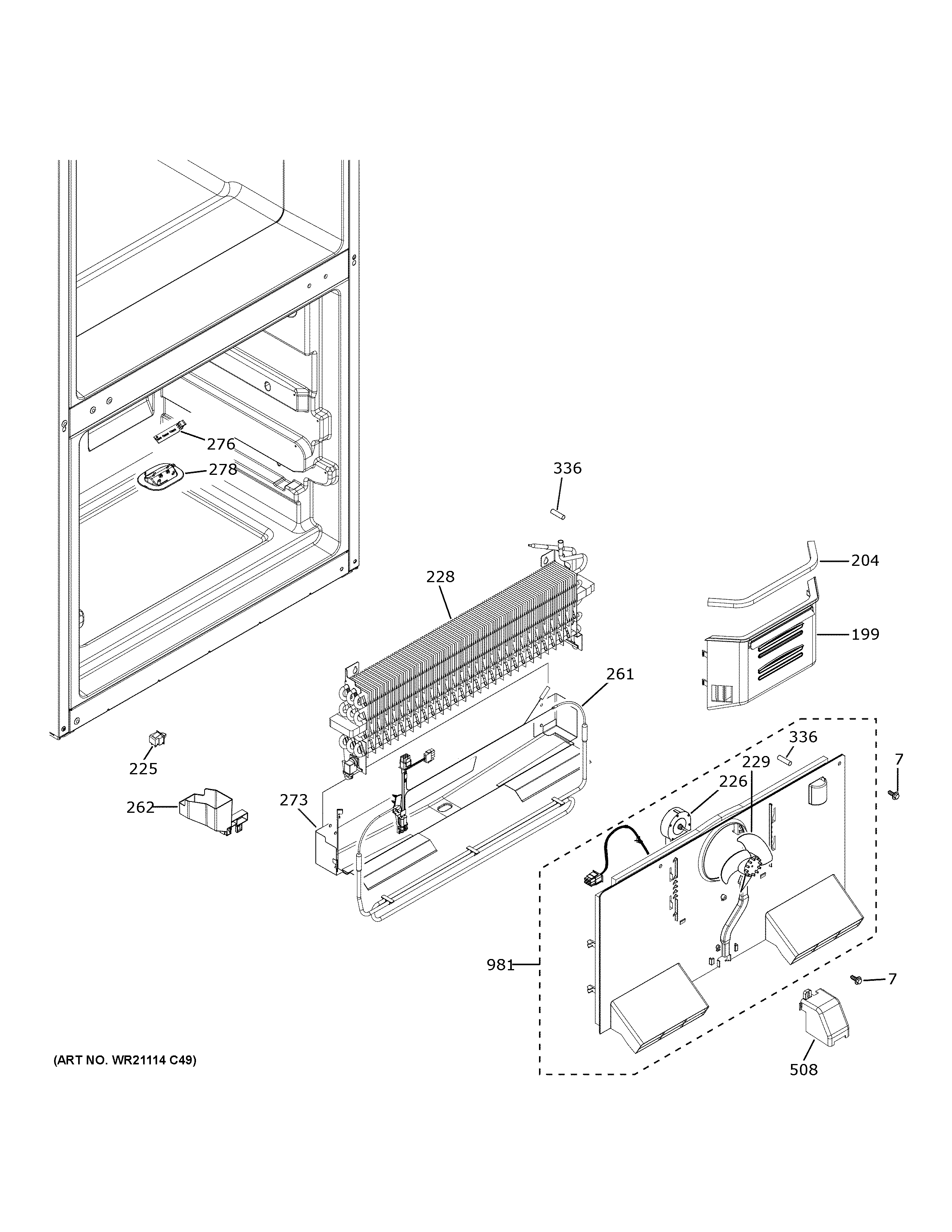

GBE21DYKFRFS FREEZER SECTION

GBE21DYKFRFS FREEZER SECTION

Written by

in

GBE21DYKFRFS FREEZER SECTION

Products

PositionProduct
7WR01X10606 GE Refrigerator Screw 8-18 CA HX 1/2 S
199WR17X40007 GE Refrigerator Evaporator Cover & Fan
204WR14X24804 GE Refrigerator Adhesive Foam Strip
225WR23X39269 GE Light Switch
226MOTER DC EVAP FAN
228WR85X40010 GE Evaporator Assembly
229EVAPORATOR FAN BLADE
261WR51X39445 GE Defrost Heater and Harness
262WR29X31008 GE Refrigerator Cup Fill IM Assembly
273TROUGH DRAIN ASM
276WR55X24870 GE Refrigerator Board LED Light Assembly
278WR02X38285 GE Light Shield
336WR55X10025 GE Refrigerator Temperature Sensor
508WR02X40125 GE Refrigerator Connector Cover
981WR49X40246 GE Evaporator Cover and Fan
