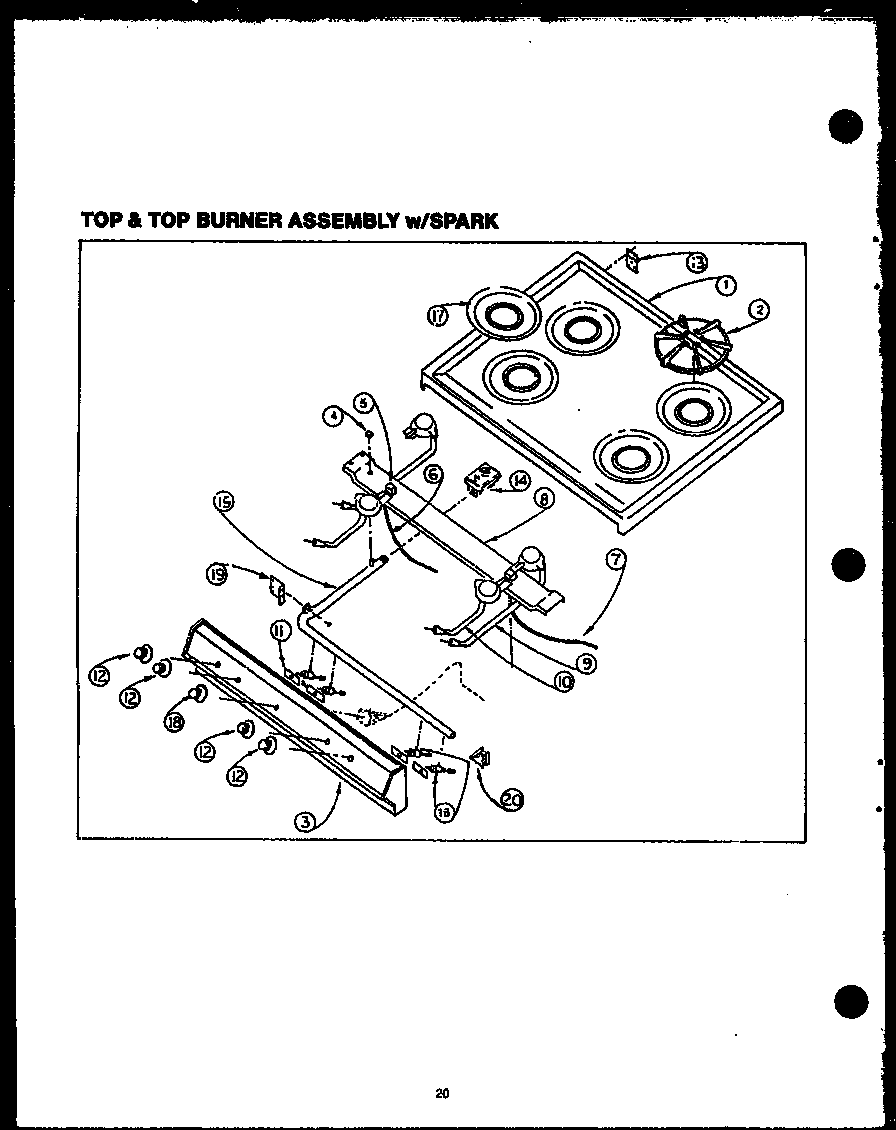

GBK26FB 06 – TOP AND TOP BURNER ASSY WITH SPARK
Written by
in
GBK26FB 06 – TOP AND TOP BURNER ASSY WITH SPARK
Products
Position
Product
NI
MAY 0310219
1
MAY 57241A
1
MAY 57241C
1
MAY 57241H
1
MAY 57241W
1
MAY 57241L
2
MAY 57311
3
MAY Y07622003A
4
MAY 0088650
5
SEE NOTE GROUND WIRE, GREEN
6
MAY Y0056134
7
MAY 56133
8
MAY 311024E
9
MAY Y0057358
10
MAY 57343
11
MAY Y0088874
12
MAY Y0086994
13
MAY 0088782
14
MAY Y0088783
15
MAY 0057336
16
MAY Y0057338
17
MAY Y0057287
18
MAY Y0086991
19
MAY 0086725
20
MAY 0057340
←
