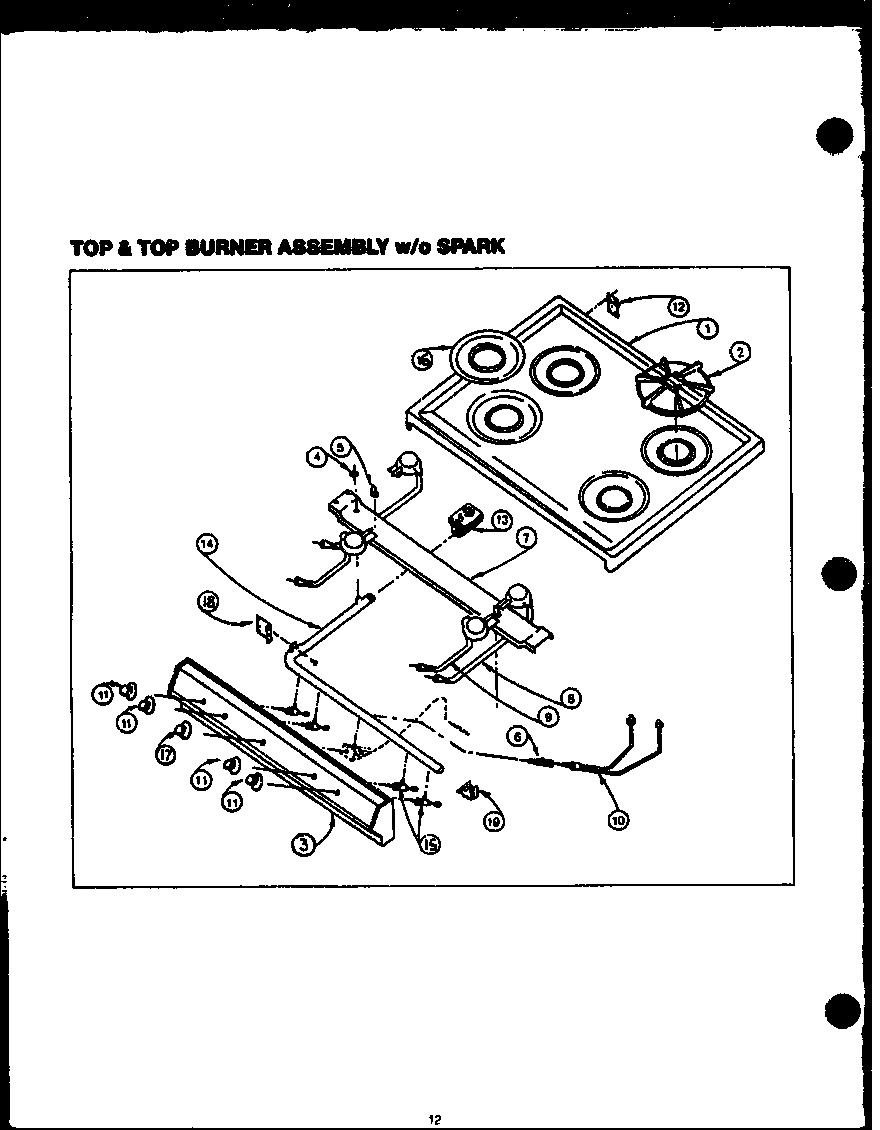

GBP24CB 06 – TOP & TOP BURNER ASSY W/O SPARK

GBP24CB 06 – TOP & TOP BURNER ASSY W/O SPARK

Written by

in

GBP24CB 06 – TOP & TOP BURNER ASSY W/O SPARK

Products

PositionProduct
NIMAY 0310219
1MAY 57240A
1MAY 57240C
1MAY 57240W
1MAY 57240H
1MAY 57240L
2MAY 57311
3MAY Y0310487
4MAY 0088650
5MAY 0086797
6SEE NOTE GROUND WIRE, GREEN
7MAY 311023E
8MAY Y0057358
9MAY 57343
10MAY 0088578
11MAY Y0086994
12MAY 0088782
13MAY Y0088783
14MAY 0057335
15MAY Y0057338
19MAY 0057340
