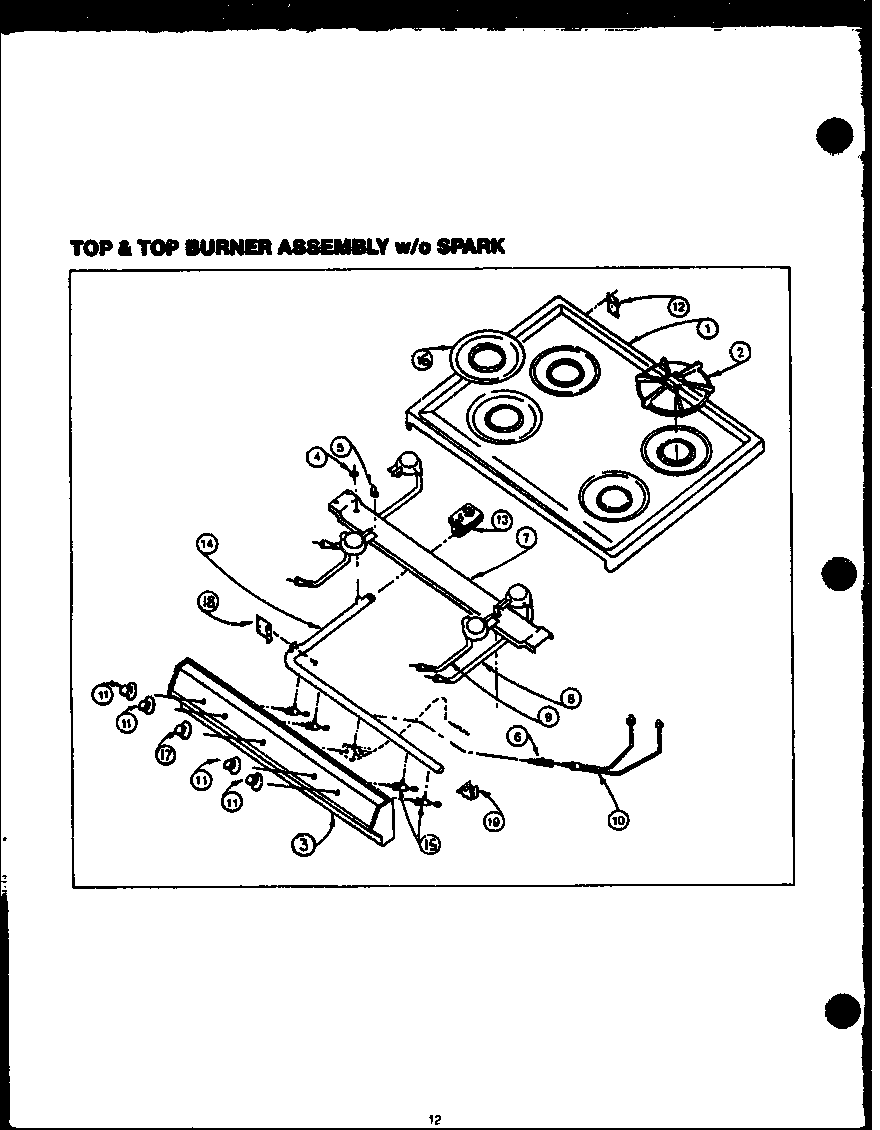

GBP24CC 06 – TOP & TOP BURNER ASSY W/O SPARK

GBP24CC 06 – TOP & TOP BURNER ASSY W/O SPARK

Written by

in

GBP24CC 06 – TOP & TOP BURNER ASSY W/O SPARK

Products

Position	Product
NI	MAY Y0310516
NI	MAY 0310219
1	MAY 57240A
1	MAY 57240C
1	MAY 57240H
1	MAY 57240L
1	MAY 57240W
2	MAY 57311
3	MAY 0311068
4	MAY 0088650
5	MAY 0086797
6	SEE NOTE GROUND WIRE, GREEN
7	MAY 311023E
8	MAY Y0057358
9	MAY 57343
10	MAY 0088578
11	MAY Y0086994
12	MAY 0088782
13	MAY Y0088783
14	MAY 0057335
15	MAY Y0057338
19	MAY 0057340
