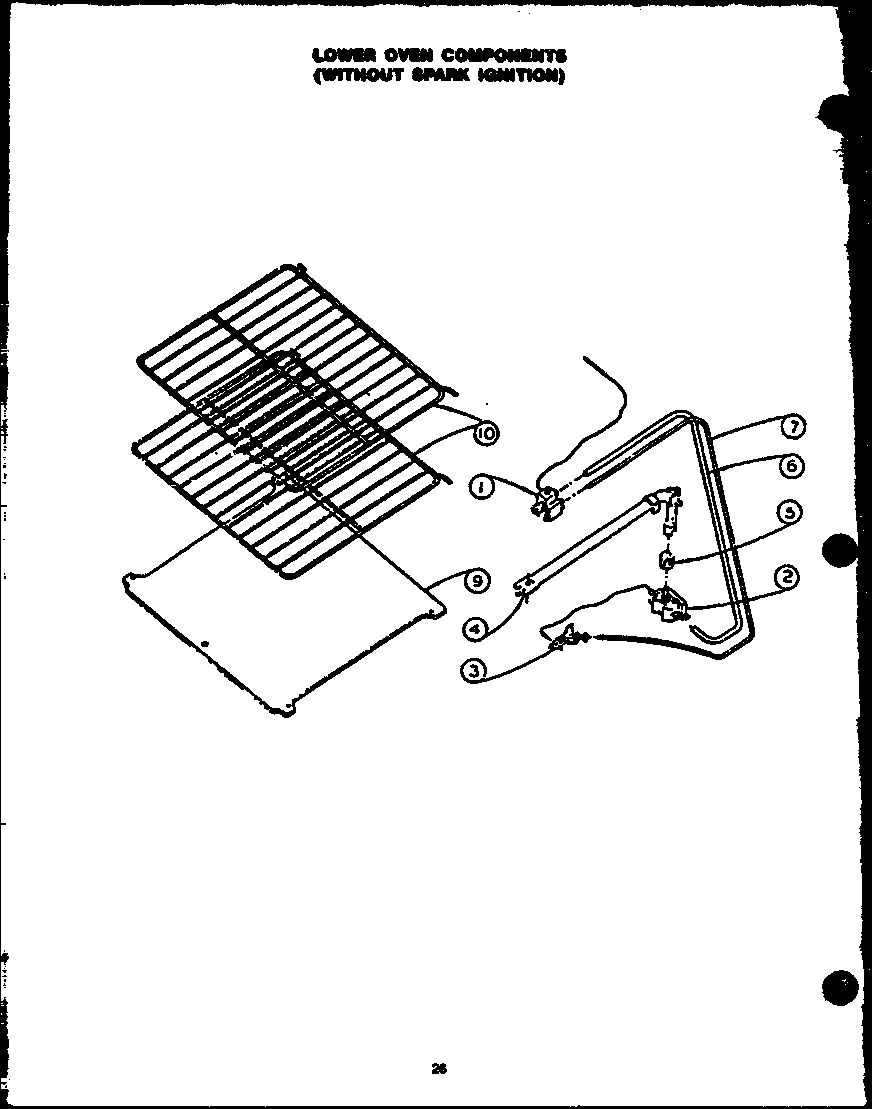

GBP26DC 03 – LOWER OVEN COMPONENTS
Products
| Position | Product |
|---|---|
| 1 | MAY Y0057346 |
| 2 | MAY Y0089062 |
| 3 | MAY Y0089063 |
| 4 | MAY 0056137 |
| 5 | SEE NOTE GROUND WIRE, GREEN |
| 6 | MAY 0088801 |
| 7 | MAY Y0088802 |
| 9 | MAY 88886CG |
| 10 | MAY Y0088671 |
