GBS277PDB0 03 – OVEN DOOR

GBS277PDB0 03 – OVEN DOOR

Written by

in

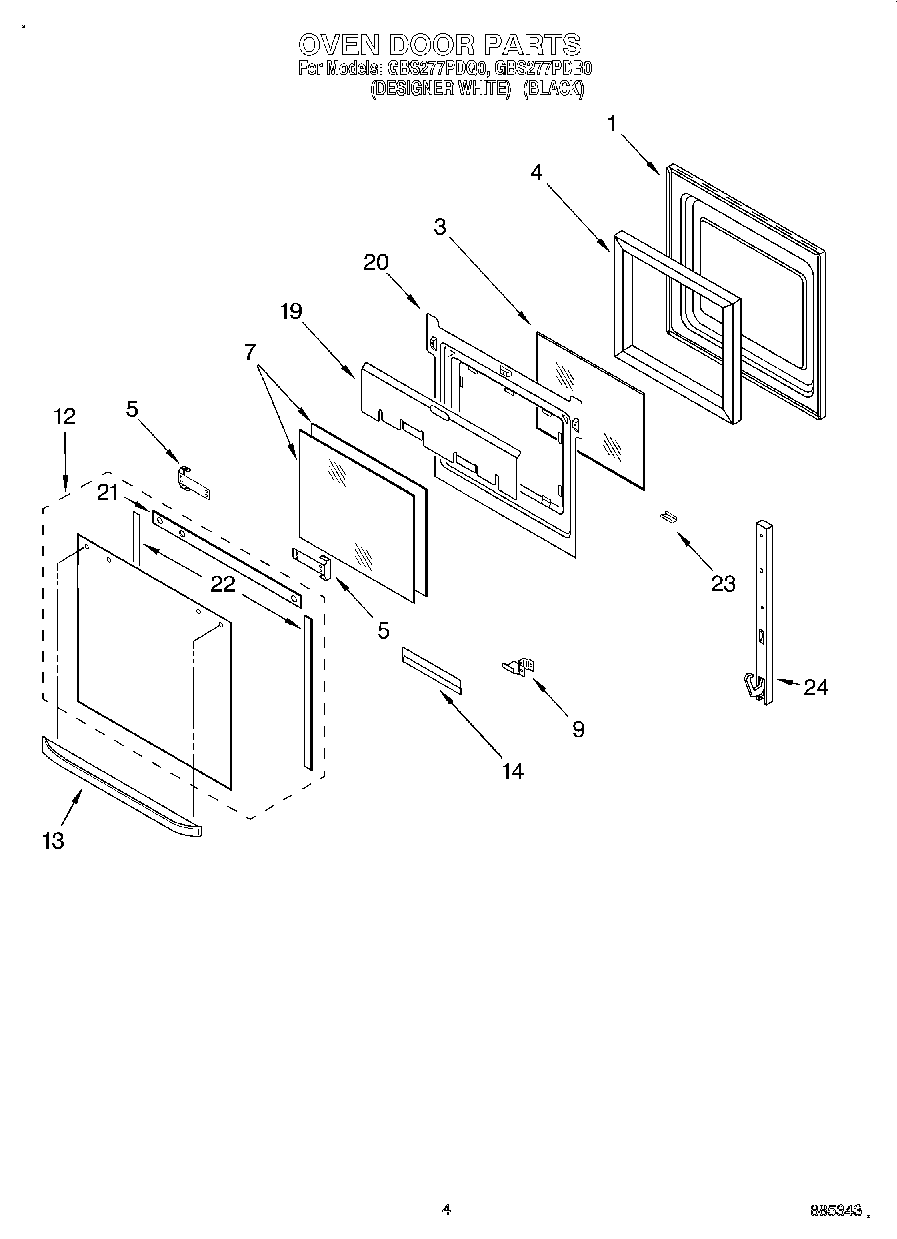

GBS277PDB0 03 – OVEN DOOR

Products

Position	Product
1	Door Liner
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Bracket, Handle
5	Screw
7	WP4449257 Whirlpool Door Glass
9	Retainer, Glass
12	Door Glass, Outer (White)
12	Door Glass, Outer (Black Model)
13	Handle, Door (White Model)
13	Handle, Door (Black Model)
14	Retainer, Glass
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Top
22	Seal, Sides
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
24	WP4455524 Whirlpool Door Hinge
24	WP4449743 Whirlpool Screw
