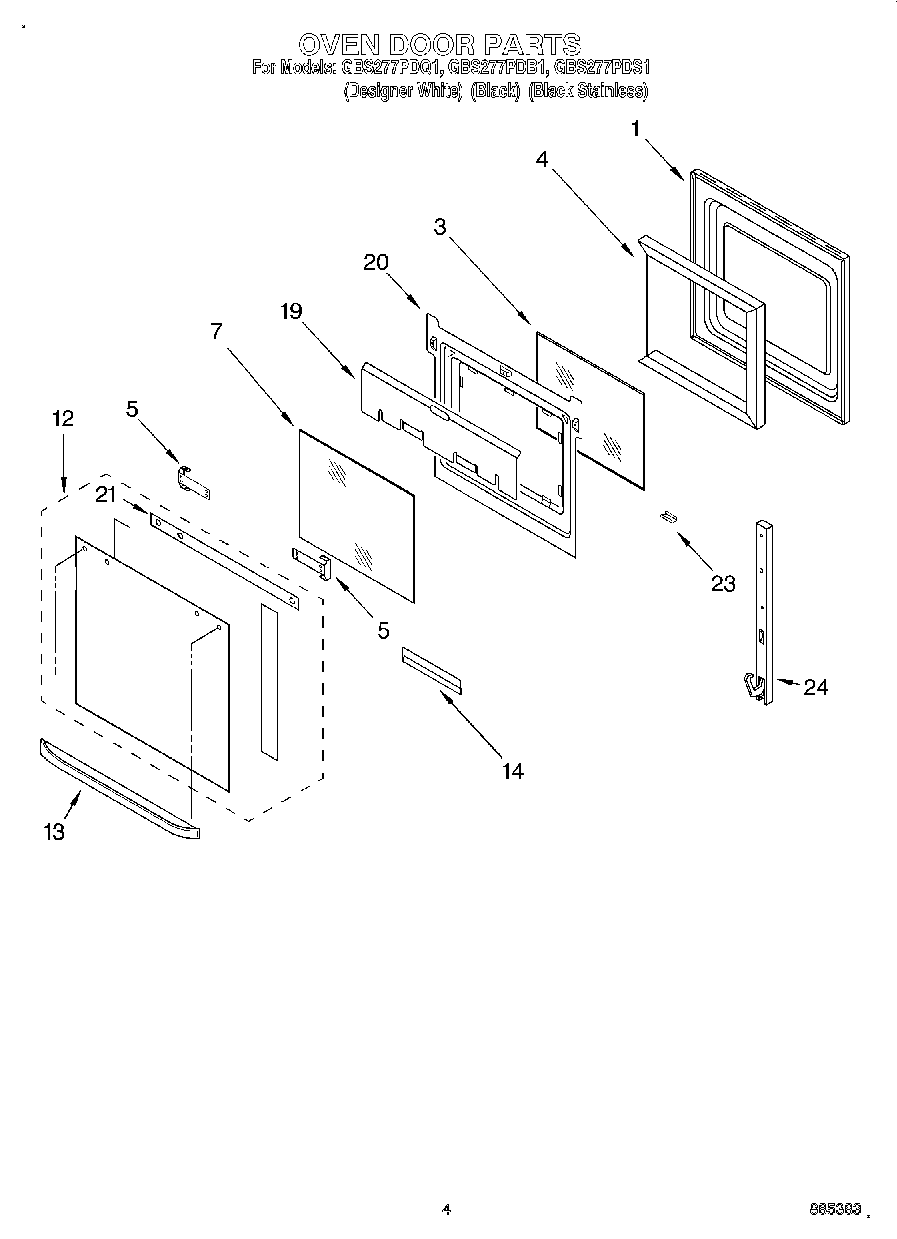

GBS277PDB1 03 – OVEN DOOR

Products

Position	Product
1	Door Liner
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Bracket, Handle
5	Screw
7	WP4449257 Whirlpool Door Glass
12	Door Glass, Assy (White Model)
12	Door Glass Assy (Black Model)
12	Door Glass, Assy (Black, Stainless Model)
13	Handle, Door (White Model)
13	Handle, Door (Black Model)
14	Retainer, Glass
19	Shield, Heat
20	WP4449809 Whirlpool Screw
20	Retainer, Glass
21	Seal, Top
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
24	WP4455523 Whirlpool Oven Door Hinge
24	WP4449743 Whirlpool Screw
24	WP4455525 Whirlpool Oven Door Hinge
