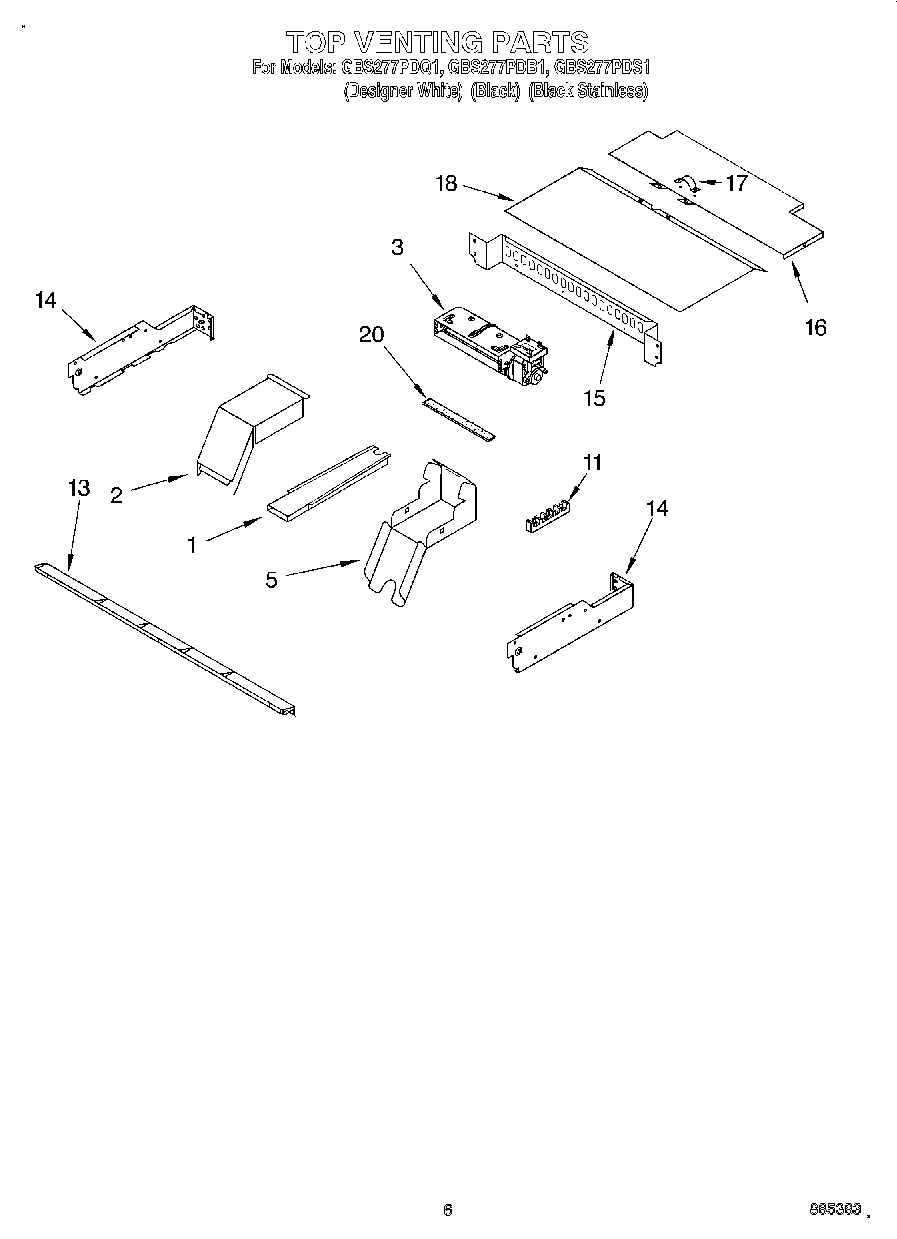

GBS277PDB1 05 – TOP VENTING, OPTIONAL

Products

Position	Product
1	4451759 Whirlpool Oven Exhaust Vent
2	4455178 Whirlpool Oven Top Elbow
3	WPW10016550 Whirlpool Blower Cooling Fan
5	4455177 Whirlpool Oven Bottom Elbow
11	WP3387230 Whirlpool Screw
11	WP8203546 Whirlpool Terminal Block
13	Vent, (Control Panel)
13	WP4450038 Whirlpool Screw
14	W10790240 Whirlpool Side Assembly Complete
14	W10755214 Whirlpool Side Complete
15	Back, Control
16	Cover, Top Rear
18	Cover, Top Front
20	Wire (14 Ga. 200 c Brown)
20	1
20	18 Ga. 80~c Rating (Red)
20	Wire (12 Ga. 150 c Black)
20	WPL 591014
20	Harness, Wire (Main)
20	4451761 Whirlpool Oven Support Bracket
20	WP4450952 Whirlpool Conduit
20	261900 Whirlpool Microwave Spray
20	Seal, Foam
20	Wire (14 Ga. 150 c Yellow)
20	Wire (14 Ga. 150 c Orange)
20	4450800 Whirlpool Oven Screw
20	4448664 Whirlpool Oven Mounting Bracket
20	Wire, 25“ Roll (White 14 GA.)
20	Wire, 25` Roll (Red 14 Ga.)
20	Wire, 25` Roll (Black 14 Ga.)
20	WP112432 Whirlpool Nut Assembly
20	WP4449809 Whirlpool Screw
20	72017 Whirlpool Appliance Touch-Up Paint White
20	WPW10339879 Whirlpool Wire Tie
20	285006 Whirlpool Spray
20	72032 Whirlpool Touch Up Paint Black
20	Wire (14 Ga. 150 c Green)
20	Wire (14 Ga. 150 c Brown)
20	Wire (14 Ga. 150 c Blue)
20	WP261869 Whirlpool Microwave Paint
20	242831 Whirlpool Oven Wire
20	WP4448950 Whirlpool Screw
20	814381 Whirlpool Pin
20	WP482338 Whirlpool Refrigerator Adhesive
20	350930 Whirlpool White Spray Paint
