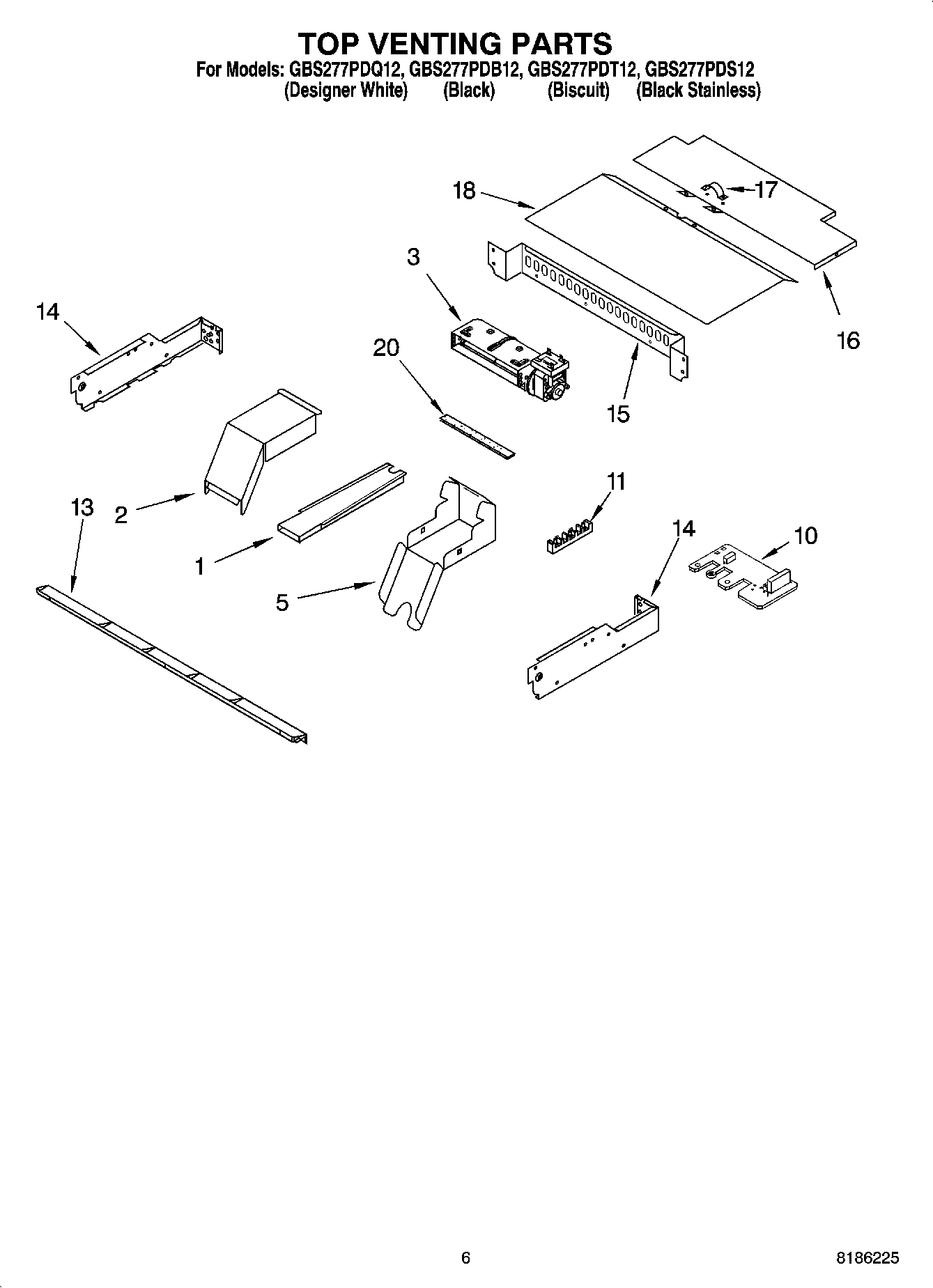

GBS277PDB12 05 – TOP VENTING PARTS, OPTIONAL PARTS (NOT INCLUDED)

GBS277PDB12 05 – TOP VENTING PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

GBS277PDB12 05 – TOP VENTING PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI58864A2
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
18 Ga. 80~c Rating (Red)
Wire (14 Ga. 200 c Brown)
1
WPL 591014
4451761 Whirlpool Oven Support Bracket
WP4450952 Whirlpool Conduit
261900 Whirlpool Microwave Spray
WPL ARI58865A4
8301399 Whirlpool Oven Wire Harness
ADHESIVE
SPLIC
WPL ARI58863A4
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
4450800 Whirlpool Oven Screw
72017 Whirlpool Appliance Touch-Up Paint White
WP4449809 Whirlpool Screw
WP112432 Whirlpool Nut Assembly
Wire, 25` Roll (Black 14 Ga.)
4448664 Whirlpool Oven Mounting Bracket
Wire, 25“ Roll (White 14 GA.)
Wire, 25` Roll (Red 14 Ga.)
350930 Whirlpool White Spray Paint
WPW10339879 Whirlpool Wire Tie
285006 Whirlpool Spray
242831 Whirlpool Oven Wire
Spacer, Harness
WP4448950 Whirlpool Screw
814381 Whirlpool Pin
WP482338 Whirlpool Refrigerator Adhesive
72032 Whirlpool Touch Up Paint Black
14451759 Whirlpool Oven Exhaust Vent
24455178 Whirlpool Oven Top Elbow
3WPW10176670 Whirlpool Blower
54455177 Whirlpool Oven Bottom Elbow
10WP4451985 Whirlpool Noise Filter Board
11Screw
11WP8203546 Whirlpool Terminal Block
13WP4450038 Whirlpool Screw
13Vent, (Control Panel)
14W10755214 Whirlpool Side Complete
14W10790240 Whirlpool Side Assembly Complete
15Back, Control
16Cover, Top Rear
18Cover, Top Front
20W10491987 Whirlpool Foam Seal
