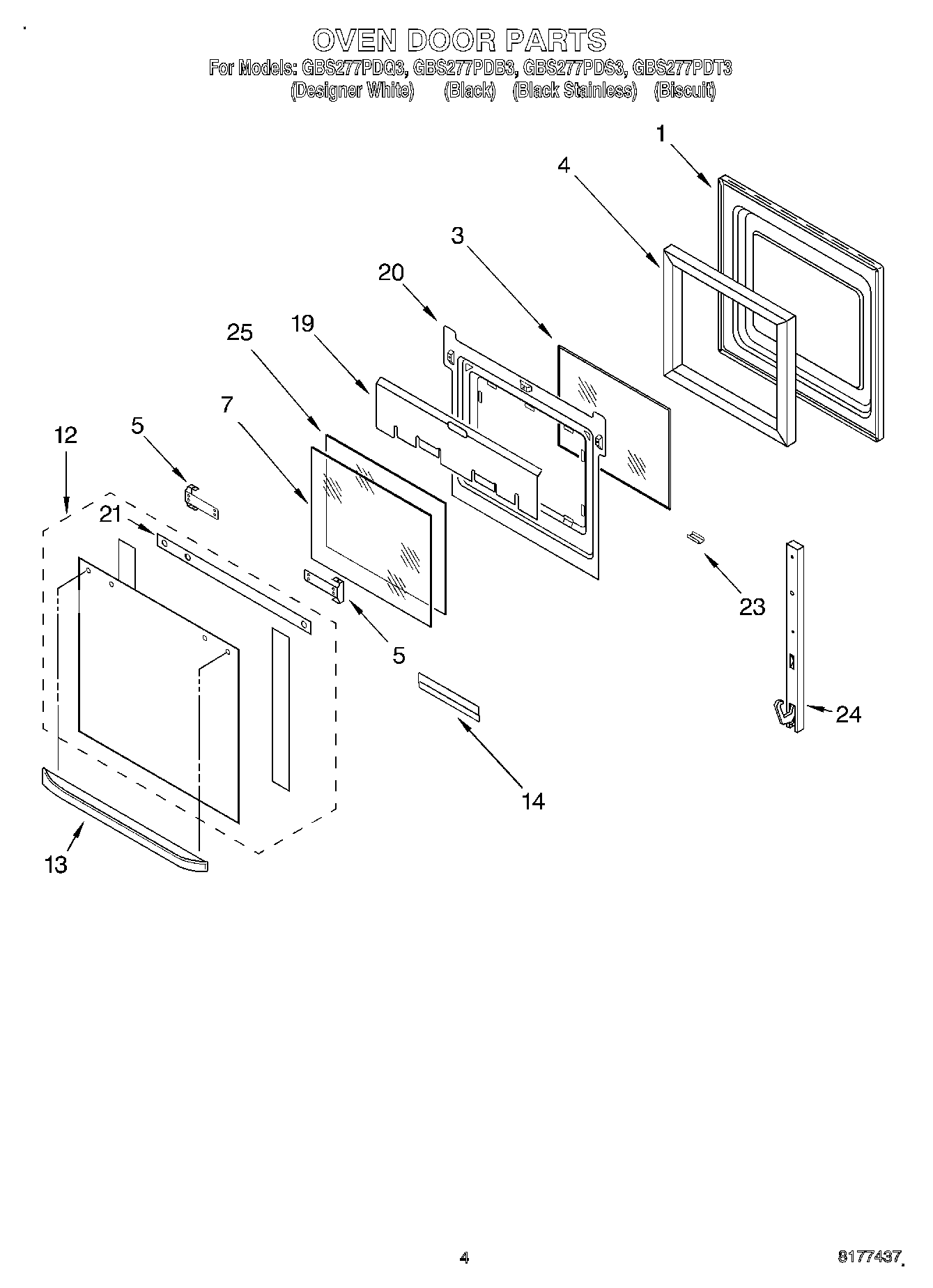

GBS277PDB3 03 – OVEN DOOR

GBS277PDB3 03 – OVEN DOOR

Written by

in

GBS277PDB3 03 – OVEN DOOR

Products

PositionProduct
1Door Liner
3WP4449253 Whirlpool Glass Window
4Insulation, Sides
5Screw
5Bracket, Handle
7WP4449257 Whirlpool Door Glass
12Door Glass Assy (Biscuit)
12Door Glass Assy (Black Model)
12Door Glass, Assy (White Model)
13Handle, Door (White Model)
13Door Handle (Biscuit Model)
13Handle, Door (Black Model)
14Retainer, Glass
19Shield, Heat
20WP4449809 Whirlpool Screw
20Retainer, Glass
21Seal, Top
23Clip, Retainer (White Model)
23Clip, Retainer (Black Model)
24WP4449743 Whirlpool Screw
24WP4455523 Whirlpool Oven Door Hinge
25Glass, Inner
