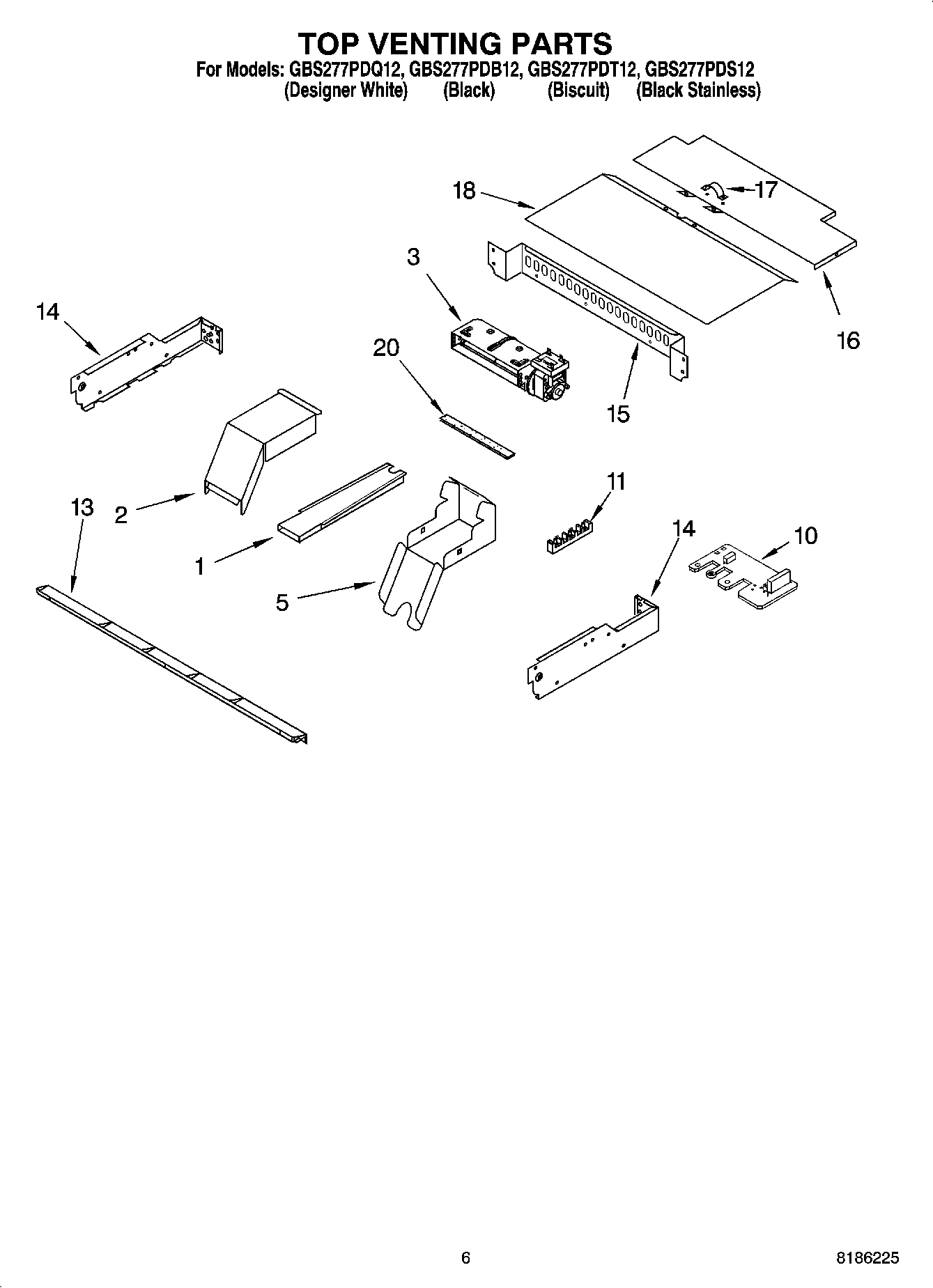

GBS277PDQ12 05 – TOP VENTING PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	WPL ARI58887A9
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	WPL 591014
	4451761 Whirlpool Oven Support Bracket
	WP4450952 Whirlpool Conduit
	261900 Whirlpool Microwave Spray
	WPL ARI58888A2
	8301399 Whirlpool Oven Wire Harness
	ADHESIVE
	SPLIC
	WPL ARI58886A4
	Wire (14 Ga. 150 c Blue)
	WP261869 Whirlpool Microwave Paint
	4450800 Whirlpool Oven Screw
	72017 Whirlpool Appliance Touch-Up Paint White
	WP4449809 Whirlpool Screw
	WP112432 Whirlpool Nut Assembly
	Wire, 25` Roll (Black 14 Ga.)
	4448664 Whirlpool Oven Mounting Bracket
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	350930 Whirlpool White Spray Paint
	WPW10339879 Whirlpool Wire Tie
	285006 Whirlpool Spray
	242831 Whirlpool Oven Wire
	Spacer, Harness
	WP4448950 Whirlpool Screw
	814381 Whirlpool Pin
	WP482338 Whirlpool Refrigerator Adhesive
	72032 Whirlpool Touch Up Paint Black
1	4451759 Whirlpool Oven Exhaust Vent
2	4455178 Whirlpool Oven Top Elbow
3	WPW10176670 Whirlpool Blower
5	4455177 Whirlpool Oven Bottom Elbow
10	WP4451985 Whirlpool Noise Filter Board
11	Screw
11	WP8203546 Whirlpool Terminal Block
13	WP4450038 Whirlpool Screw
13	Vent, (Control Panel)
14	W10755214 Whirlpool Side Complete
14	W10790240 Whirlpool Side Assembly Complete
15	Back, Control
16	Cover, Top Rear
18	Cover, Top Front
20	W10491987 Whirlpool Foam Seal
