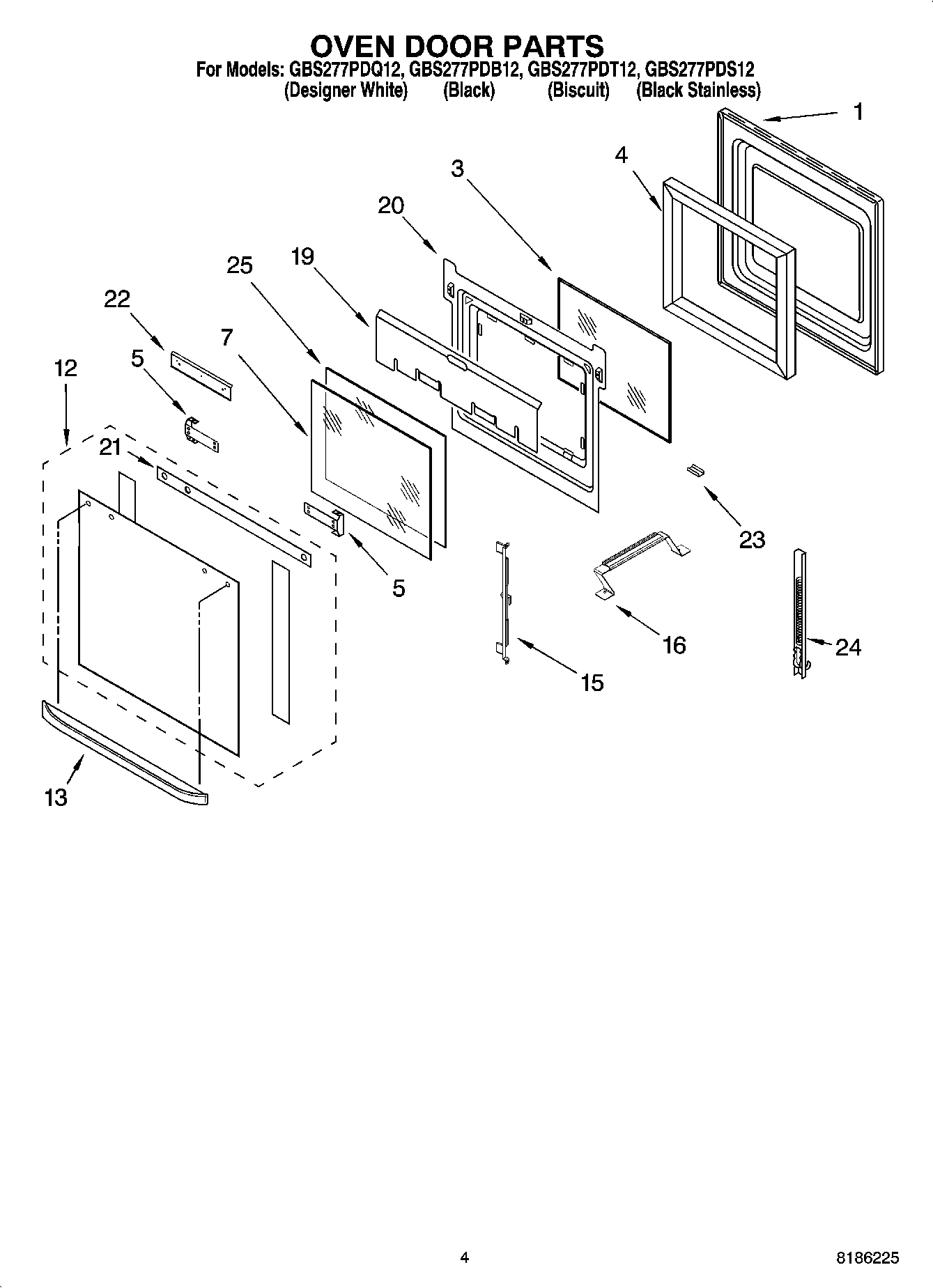

GBS277PDS12 03 – OVEN DOOR PARTS

Products

Position	Product
1	Door Liner
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Screw
5	Bracket, Handle
7	Glass, Inner
12	Door Glass, Assy (White Model)
12	Door Glass, Assy (Black Model)
12	Door Glass, Assy (Black, Stainless Model)
12	Door Glass Assy (Biscuit)
13	Door Handle (Biscuit Model)
13	Handle, Door (White Model)
13	Handle, Door (Black Model)
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
19	Shield, Heat
20	WP4449809 Whirlpool Screw
20	Retainer, Glass
21	Seal, Door Top
22	Shield, Heat (Bottom)
23	WP3400832 Whirlpool Screw
23	Clip, Retainer (Black Model)
23	RETAINER,GLASS CLIP (BISCUIT)
23	Clip, Retainer (White Model)
24	Hinge, Door (White, Black & Biscuit Models) (Left Side (Black Stainless Model))
24	WP4449743 Whirlpool Screw
24	WP9760571 Whirlpool Door Hinge
24	WP9760572 Whirlpool Door Hinge
24	9760569 Whirlpool Door Hinge
25	WP9759227 Whirlpool Glass Door
