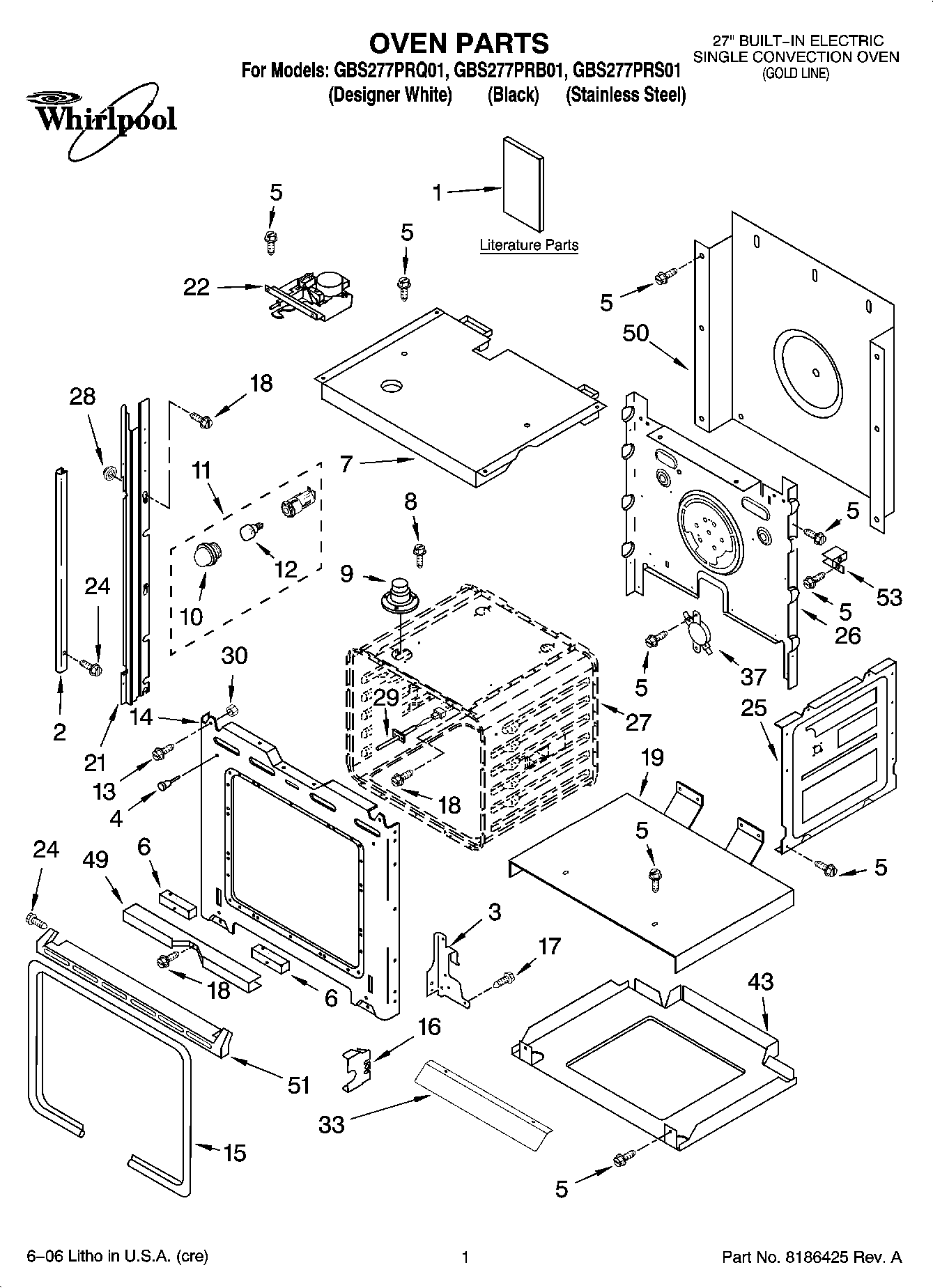

GBS277PRB01 01 – OVEN PARTS

GBS277PRB01 01 – OVEN PARTS

Written by

in

GBS277PRB01 01 – OVEN PARTS

Products

PositionProduct
1Safe Cooking Tips (French)
1Safe Cooking Tips
1Installation, MWO Trim Kit
1Installation Instructions (Undercounter, Oven)
1English
1French
1Installation Instructions
1Tech Sheet
2Trim, Side (RH S.Steel)
2Trim, Side (RH Black)
2Trim, Side (LH S.Steel)
2WPW10339493 Whirlpool Trim Assembly
2Trim, Side (RH White)
2Trim, Side (LH White)
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
5WP4449809 Whirlpool Screw
6Spacer, Foam
7Top, Chassis
8SCREW
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13Screw
14Frame, Front
15WP4455381 Whirlpool Door Gasket
164452152 Whirlpool Oven Mounting Bracket
17WP4449743 Whirlpool Screw
18WP4449154 Whirlpool Screw
19Support, Insulation
218303115 Whirlpool Oven Mounting Rail
218303116 Whirlpool Oven Mounting Rail
22WP9760889 Whirlpool Door Latch
24WP3400832 Whirlpool Screw
24WP3400805 Whirlpool Screw Assembly
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
28WP4448444 Whirlpool Grommet
29WPW10131825 Whirlpool Oven Temperature Sensor
30WP4450118 Whirlpool Nut
33Deflector, Vent
37WP9759243 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
51WPL 8302940
51Trim,
51Trim, Bottom (Black Model)
53WPL 4449315
53WPL 4449845
53WPL 4450364
53FOLLOWING PARTS NOT ILLUSTRATED INSULATION
