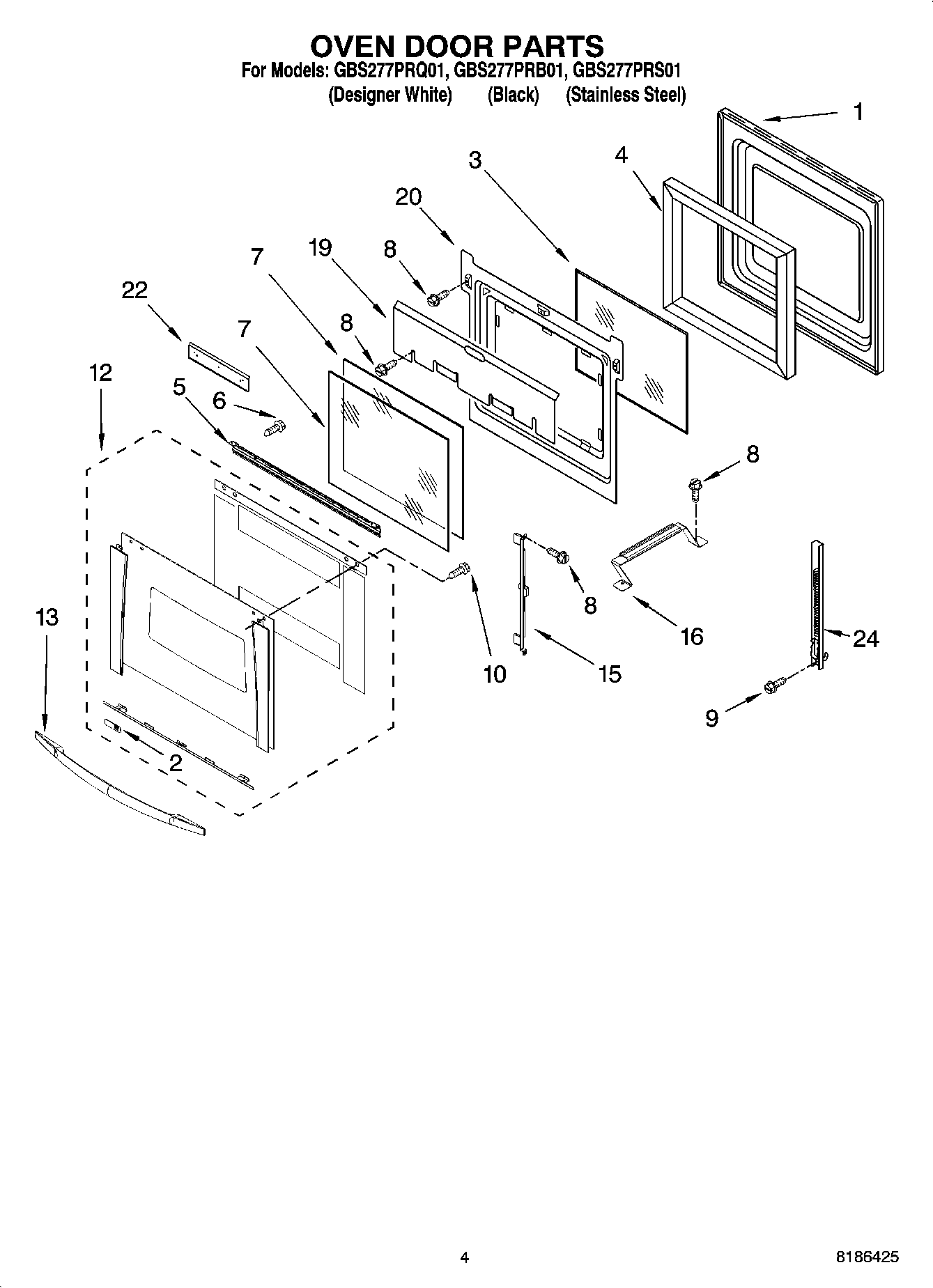

GBS277PRQ01 03 – OVEN DOOR PARTS

Products

Position	Product
1	Door Liner
2	Name Plate
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Bracket, Handle
6	Screw
7	Glass, Inner
8	WP4449809 Whirlpool Screw
9	WP4449743 Whirlpool Screw
10	WP3400832 Whirlpool Screw
12	Door Glass, Assy (Upper) (S.Steel)
12	Door Glass, Assy (Upper) (Black)
12	Door Glass, Assy (Upper) (White)
13	Handle, Door (Black Model)
13	Handle, Door (White Model)
13	Handle, Door (S.Steel Model)
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
19	Shield, Heat
20	Retainer, Glass
22	Shield, Heat (Bottom)
24	HINGE-DOOR
24	WP9760576 Whirlpool Door Hinge (Left)
