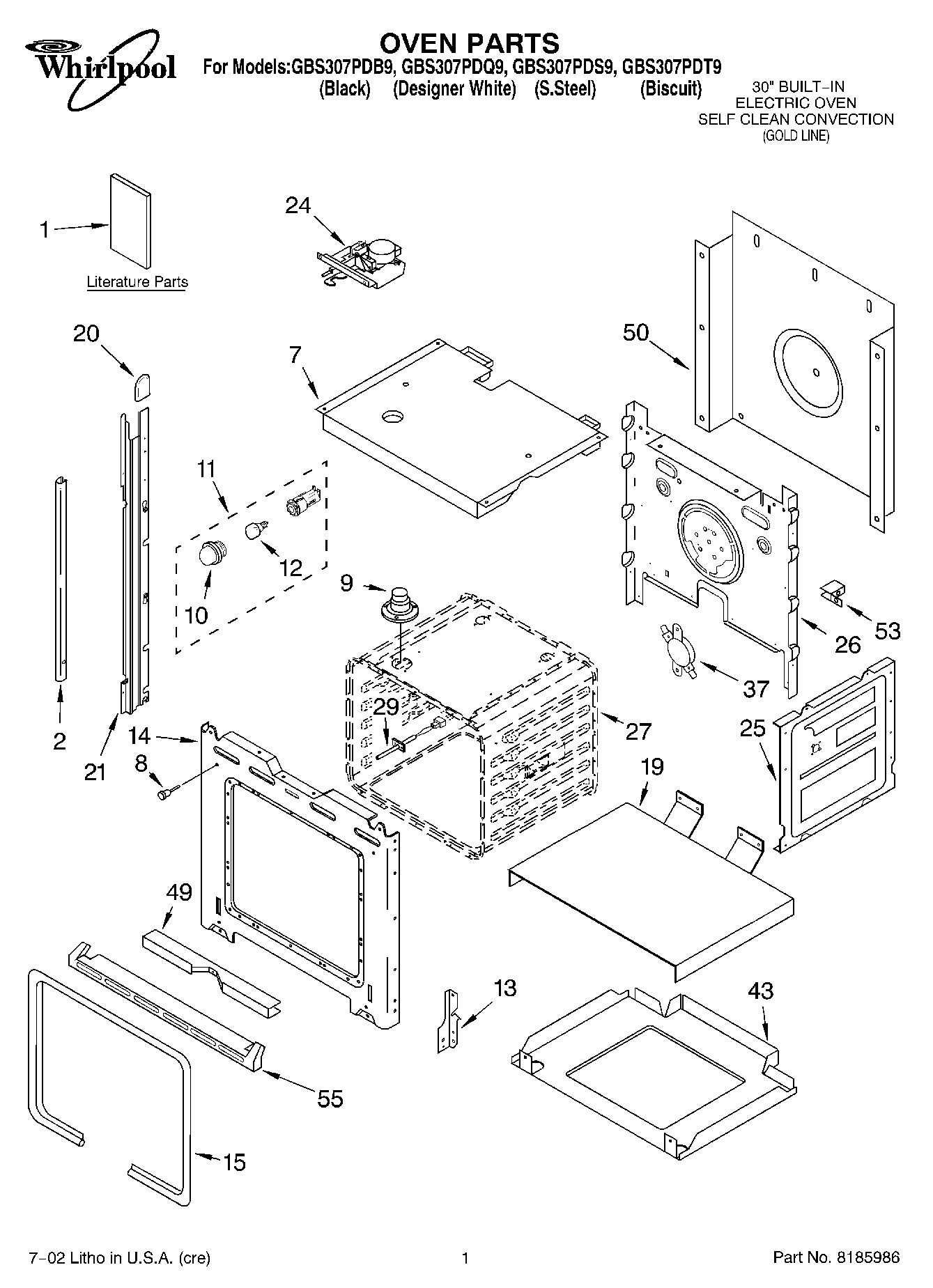

GBS307PDS9 01 – OVEN, LITERATURE

Products

Position	Product
1	Safer Cooking Tips
1	Cookbook, T/C Ovens
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Installation Instructions)
1	Literature Parts (Installation/ MWO Trim Kit)
1	Literature Parts (Tech Sheet)
1	Literature Parts (Installation/ Undercounter)
2	Trim, Side (RH Biscuit)
2	Trim, Side (LH Biscuit)
2	Trim, Side (LH White Screw)
2	Trim, Side (LH Black)
2	Trim, Side (White, Right)
2	WP8281236 Whirlpool Screw
2	Trim, Side (White)
2	Trim, Side (RH Black)
7	Top, Chassis
8	4448520 Whirlpool Oven Bumper
9	SCREW
9	W10861715 Whirlpool Vent Tube
10	Lens, Light
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
13	WP4455605 Whirlpool Left Hand Hinge
13	WP4455606 Whirlpool Right Hand Hinge
14	WP4450118 Whirlpool Nut
14	Screw
14	Frame, Front
15	W11675844 Whirlpool Oven Gasket
19	Support, Insulation
20	Cap, Spacer
21	814371 Whirlpool Oven Rail Mount
21	814372 Whirlpool Oven Rail Mount
21	WP4448444 Whirlpool Grommet
24	WP9760889 Whirlpool Door Latch
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Lin
29	WPW10131825 Whirlpool Oven Temperature Sensor
37	WP9759243 Whirlpool Thermostat
43	WPL 4455530
49	WP4448933 Whirlpool Retainer
49	WP4449154 Whirlpool Screw
50	WP4451747 Whirlpool Rear Cover
53	WPL 4449845
53	WP4449809 Whirlpool Screw
55	W11684730 Whirlpool Insulation
55	WP3400832 Whirlpool Screw
55	WPL 4450365
55	WPL 4448478
55	WPL 4448477
55	WPL 4452415
