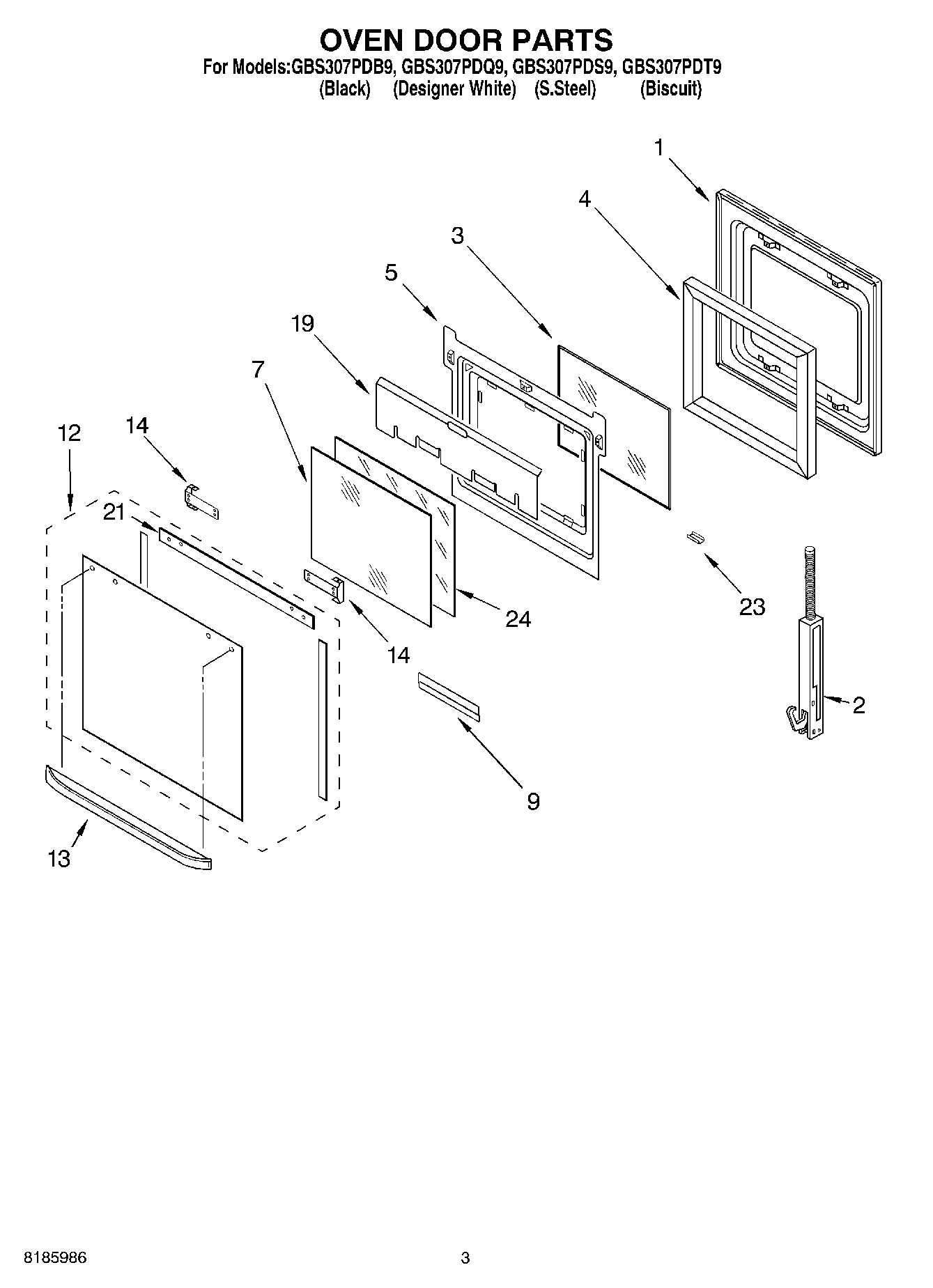

GBS307PDS9 02 – OVEN DOOR

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP9760572 Whirlpool Door Hinge
2	HINGE-DOOR LH/SS DOOR SPRING
2	WP9760571 Whirlpool Door Hinge
2	Hinge, Door (R.Side)
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
5	Retainer, Glass
7	WP4449263 Whirlpool Inner Door Glass
9	Retainer, Glass
12	Door Glass (Biscuit)
12	Door Glass, Assy (White Model)
12	WP9759074 Whirlpool Outer Door Glass
12	WP9759641 Whirlpool Outer Door Glass
13	Door Handle (White Model)
13	Door Handle (Black Model)
14	Screw
14	Bracket, Handle
19	WP4449809 Whirlpool Screw
19	Shield, Heat
21	Seal, Door Top
23	Clip, Retainer (White Model)
23	WP4449743 Whirlpool Screw
23	Clip, Retainer (Black Model)
24	Glass, Inner
