GBS307PDT7 01 – OVEN, LITERATURE

GBS307PDT7 01 – OVEN, LITERATURE

Written by

in

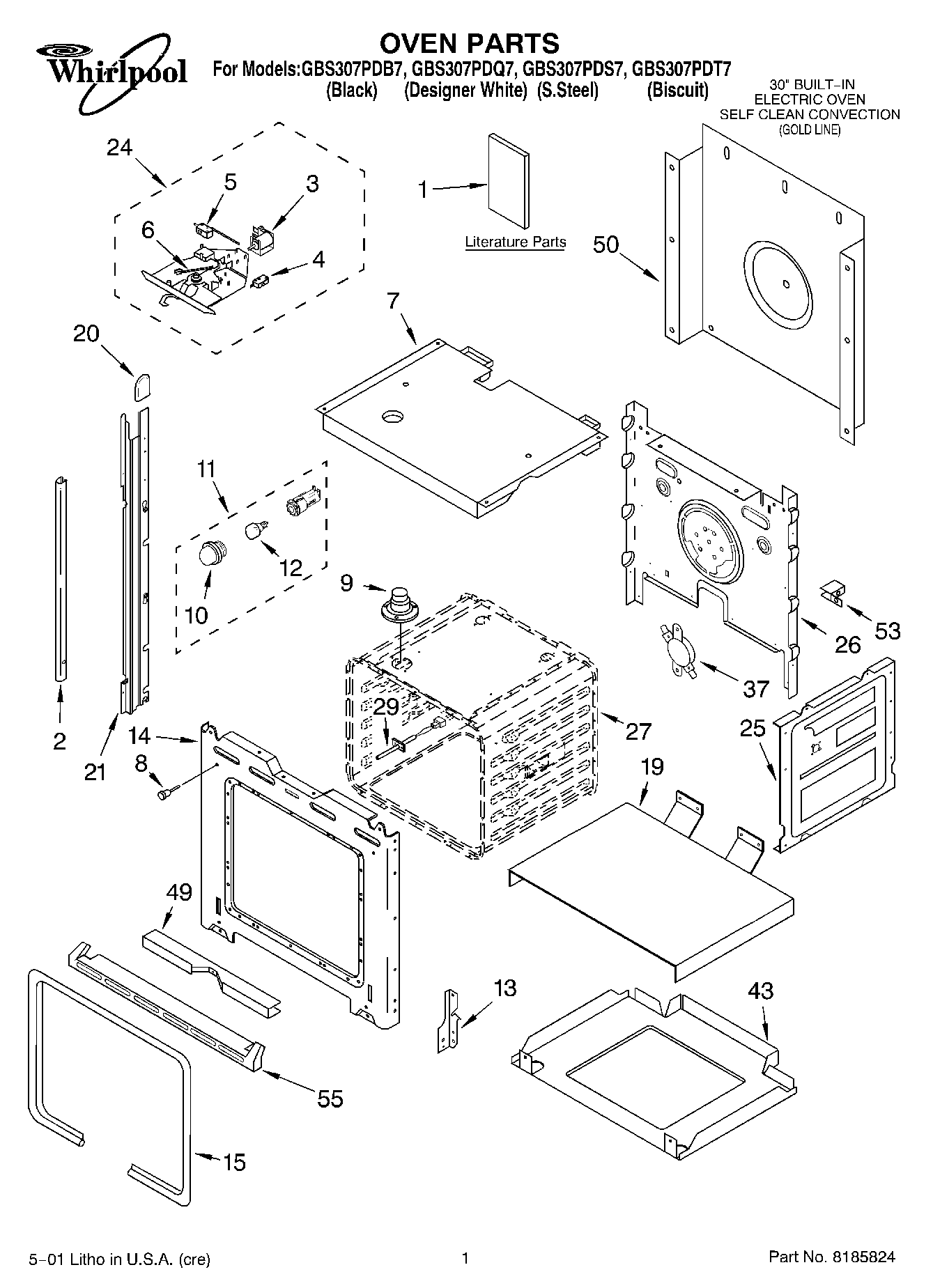

GBS307PDT7 01 – OVEN, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Tech Sheet)
1Cookbook, T/C Ovens
1Literature Parts (Use & Care Guide)
1Literature Parts (Installation Instructions)
1Literature Parts (Installation/ MWO Trim Kit)
1Literature Parts (Installation/ Undercounter)
2Trim, Side (RH Biscuit)
2Trim, Side (LH White Screw)
2Trim, Side (LH Black)
2Trim, Side (White, Right)
2Trim, Side (White)
2WP8281236 Whirlpool Screw
2Trim, Side (LH Biscuit)
2Trim, Side (RH Black)
3Solenoid
4Microswitch N.C.
5Microswitch
6Spring, Latch
7Top, Chassis
84448520 Whirlpool Oven Bumper
9SCREW
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13WP4455605 Whirlpool Left Hand Hinge
13WP4455606 Whirlpool Right Hand Hinge
14Screw
14Frame, Front
14WP4450118 Whirlpool Nut
15W11675844 Whirlpool Oven Gasket
19Support, Insulation
20Cap, Spacer
21814371 Whirlpool Oven Rail Mount
21814372 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
24Latch Assembly
25W10782197 Whirlpool Side Panel
26Back, Chassis
27WPL ARI59138A8
29WPW10131825 Whirlpool Oven Temperature Sensor
37WP9759243 Whirlpool Thermostat
43WPL 4455530
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
53WPL 4449845
53WP4449809 Whirlpool Screw
55WPL 4450365
55W11684730 Whirlpool Insulation
55WPL 4448477
55WPL 4448478
55WP3400832 Whirlpool Screw
55WPL 4452415
