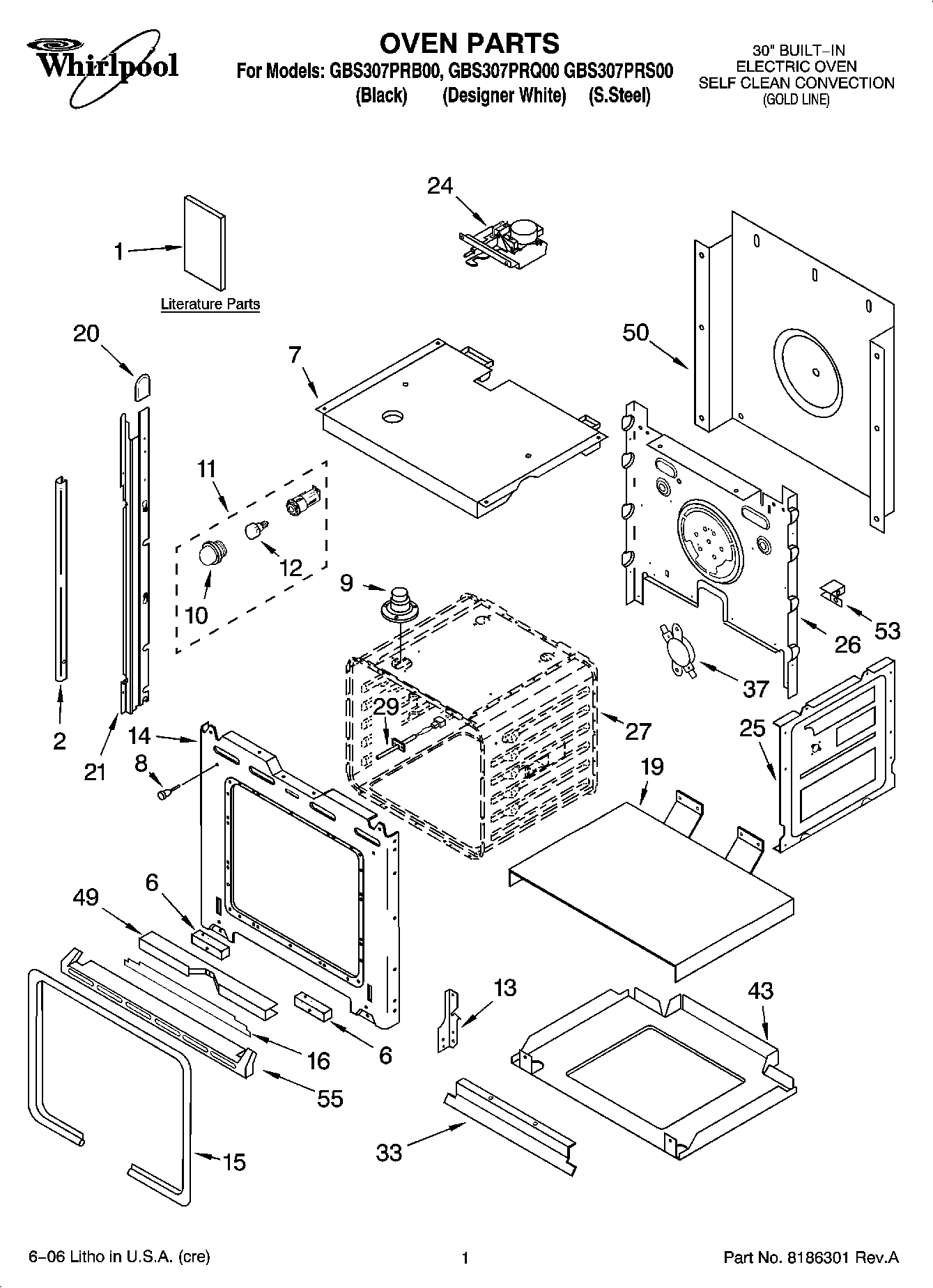

GBS307PRQ00 01 – OVEN PARTS

GBS307PRQ00 01 – OVEN PARTS

Written by

in

GBS307PRQ00 01 – OVEN PARTS

Products

PositionProduct
1Installation, MWO Trim Kit
1Installation/ Undercounter
1Use & Care Guide
1Installation Instructions Owners Manual (Sgl/Dbl Oven)
1Cookbook, WP Conv.
1Safe Cooking Tips (French)
1Tech Sheet
2WPW10339493 Whirlpool Trim Assembly
2Trim, Side (RH White)
2Trim, Side (LH White)
2Trim, Side (RH S.Steel)
2Trim, Side (RH Black)
2Trim, Side (LH S.Steel)
6Spacer, Foam
7Top, Chassis
84448520 Whirlpool Oven Bumper
9SCREW
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13WP4455606 Whirlpool Right Hand Hinge
13WP4455605 Whirlpool Left Hand Hinge
14Screw
14WP4450118 Whirlpool Nut
14Frame, Front
15W11675844 Whirlpool Oven Gasket
16Insulation Bottom Vent
19Support, Insulation
20Cap, Spacer
218303115 Whirlpool Oven Mounting Rail
218303116 Whirlpool Oven Mounting Rail
21WP4448444 Whirlpool Grommet
24WP9760889 Whirlpool Door Latch
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
339760677 Whirlpool Oven Vent Deflector
37WP9759243 Whirlpool Thermostat
43Base, Chassis
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
53WP4449809 Whirlpool Screw
53WPL 4449845
55W11684730 Whirlpool Insulation
55WPL 4450365
55WP3400832 Whirlpool Screw
554452152 Whirlpool Oven Mounting Bracket
55Vent, Bottom Trim (Stainless)
55WPW10207689 Whirlpool Trim Kit
55WPL ARI59162A4
