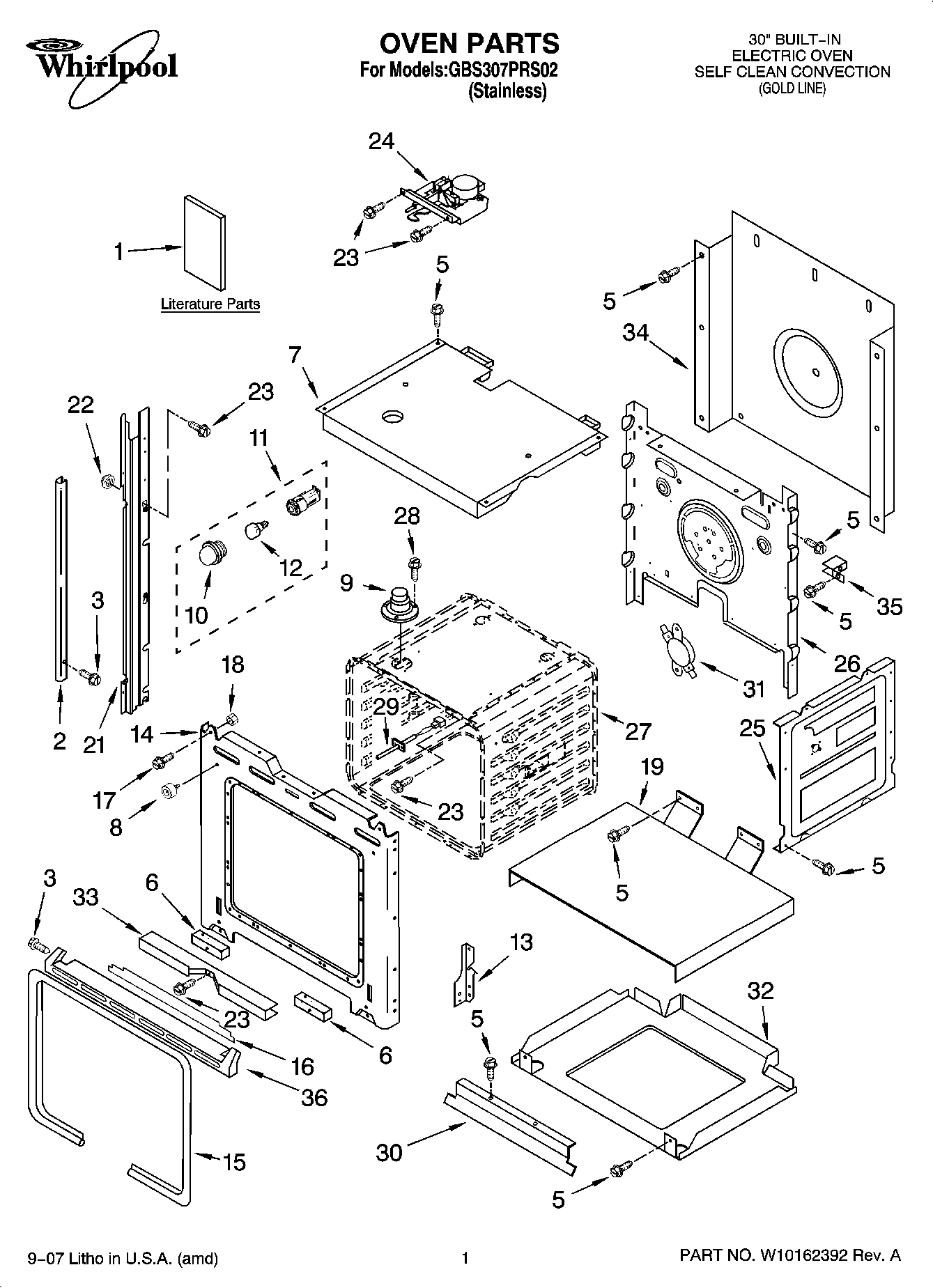

GBS307PRS02 01 – OVEN PARTS

Products

Position	Product
1	Safe Cooking Tips
1	English
1	French
1	Installation Instructions Owners Manual (Sgl/Dbl Oven)
1	Tech Sheet
1	Installation, MWO Trim Kit
1	Safe Cooking Tips (French)
2	Trim, Side (LH S.Steel)
2	Trim, Side (RH S.Steel)
3	WP3400832 Whirlpool Screw
5	WP4449809 Whirlpool Screw
6	Spacer, Foam
7	Top Chassis
8	W10105790 Whirlpool Bumper
9	W10861715 Whirlpool Vent Tube
10	Lens, Light (2)
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
13	WP4455606 Whirlpool Right Hand Hinge
13	WP4455605 Whirlpool Left Hand Hinge
14	WPW10115831 Whirlpool Front Frame
15	W11675844 Whirlpool Oven Gasket
16	Insulation Bottom Vent
17	Screw
18	WP4450118 Whirlpool Nut
19	Support, Insulation
21	8303116 Whirlpool Oven Mounting Rail
21	8303115 Whirlpool Oven Mounting Rail
22	WP4448444 Whirlpool Grommet
23	WP4449154 Whirlpool Screw
24	WP9760889 Whirlpool Door Latch
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Liner, Oven (Not serviceable)
28	SCREW
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	9760677 Whirlpool Oven Vent Deflector
31	WP9759243 Whirlpool Thermostat
32	Base, Chassis
33	WP4448933 Whirlpool Retainer
34	WP4451747 Whirlpool Rear Cover
35	WPL 4449845
36	Vent, Bottom Trim (Stainless)
36	W11684730 Whirlpool Insulation
36	4452152 Whirlpool Oven Mounting Bracket
36	WPL 4450365
36	FOLLOWING PARTS NOT ILLUSTRATED INSULATION
