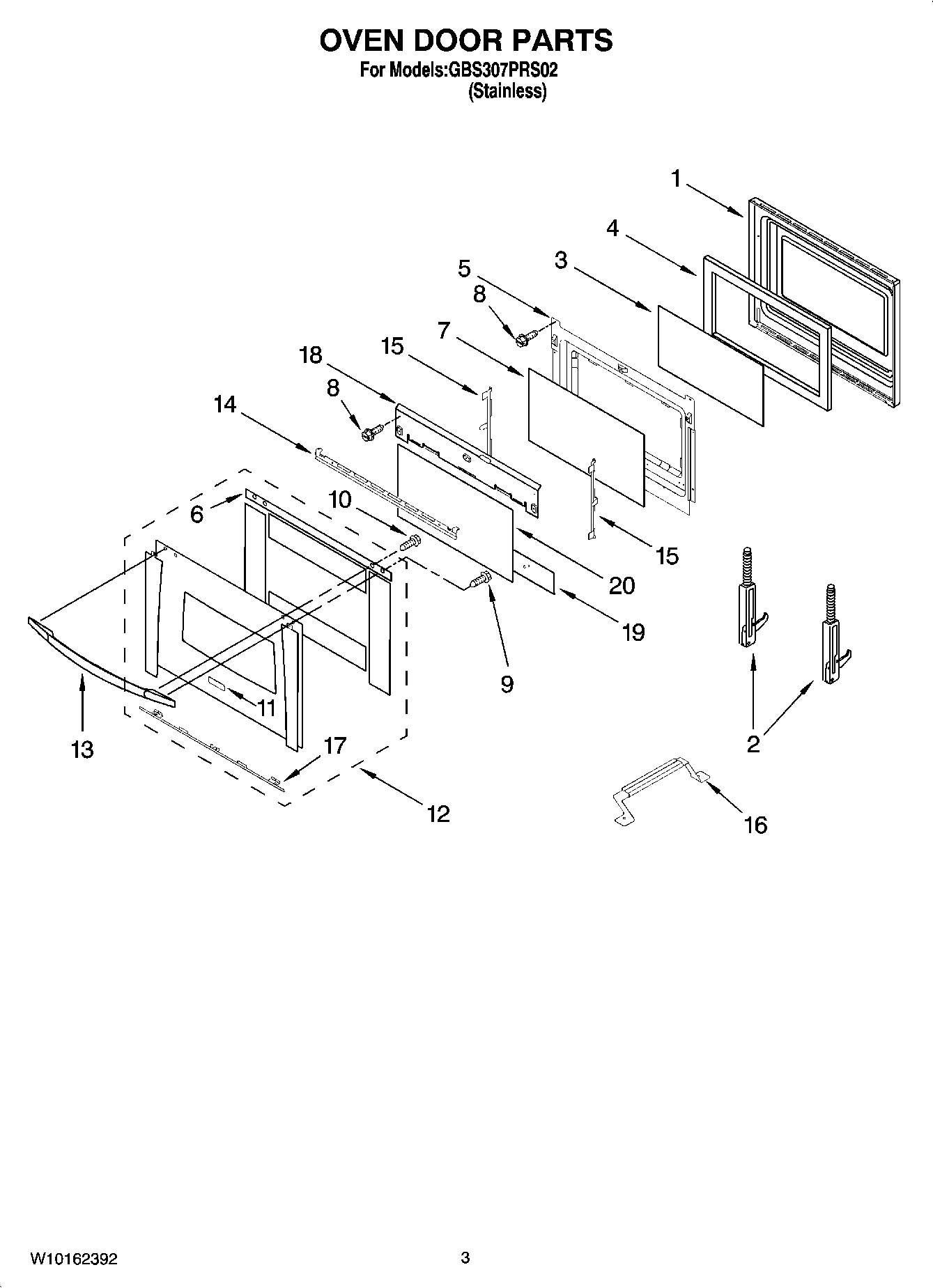

GBS307PRS02 02 – OVEN DOOR PARTS

GBS307PRS02 02 – OVEN DOOR PARTS

Written by

in

GBS307PRS02 02 – OVEN DOOR PARTS

Products

PositionProduct
1WP9759413 Whirlpool Door Liner
14448520 Whirlpool Oven Bumper
2WP9760578 Whirlpool Oven Left Door Hinge
2WP9760577 Whirlpool Oven Right Door Hinge
3WP4449259 Whirlpool Glass Window
4WP4451722 Whirlpool Door Insulation Assembly
5WP4457132 Whirlpool Retainer
6Seal – Door
7WP9759225 Whirlpool Inner Door Glass
8WP4449809 Whirlpool Screw
9Screw
10WP4449743 Whirlpool Screw
11Name Plate
12Assembly (Upper)
13Door Handle (S.Steel)
15Bracket, Handle
16Bracket (3rd Glsss)
17Clip, Door (Black)
18Shield, Heat
194457114 Whirlpool Oven Heat Shield
20Glass, Inner
