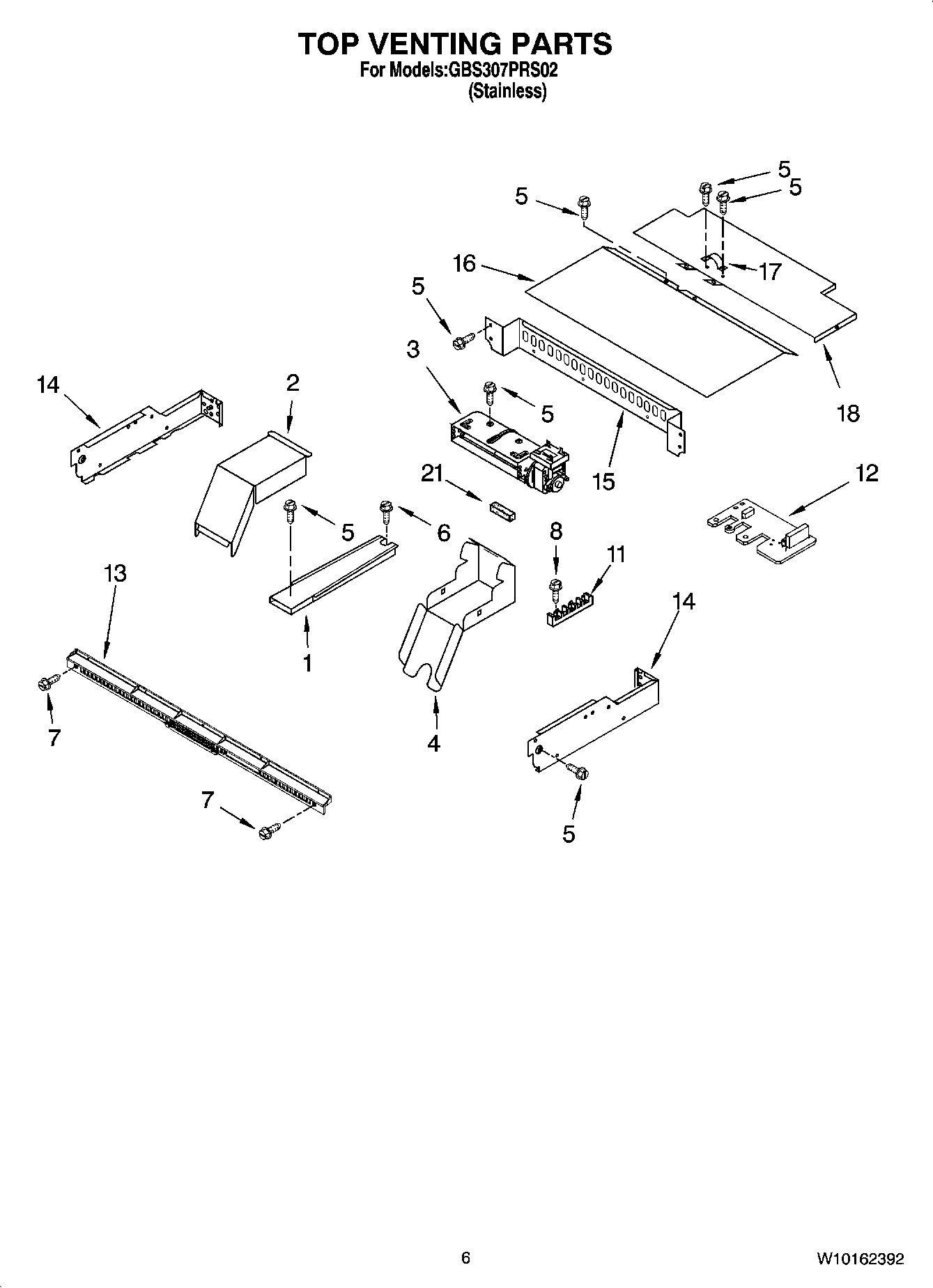

GBS307PRS02 05 – TOP VENTING PARTS, OPTIONAL PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Wire (14 Ga. 150 c Blue)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	SPLICING WIRES–25FT. LENGTH
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 200 c Brown)
	ADHESIVE
	WPL 591014
	8301399 Whirlpool Oven Wire Harness
	261900 Whirlpool Microwave Spray
	Miscellaneous
	4451761 Whirlpool Oven Support Bracket
	WP261869 Whirlpool Microwave Paint
	242831 Whirlpool Oven Wire
	4452400 Whirlpool Microwave Wire Harness
	72017 Whirlpool Appliance Touch-Up Paint White
	WP4449809 Whirlpool Screw
	WIRING HARNESS PARTS
	WP112432 Whirlpool Nut Assembly
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	4448664 Whirlpool Oven Mounting Bracket
	4450800 Whirlpool Oven Screw
	WPW10339879 Whirlpool Wire Tie
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	WP482338 Whirlpool Refrigerator Adhesive
	8528351 Whirlpool Clip
	WP4448950 Whirlpool Screw
	WP4450952 Whirlpool Conduit
1	4451759 Whirlpool Oven Exhaust Vent
2	4455178 Whirlpool Oven Top Elbow
3	WPW10176670 Whirlpool Blower
4	4455177 Whirlpool Oven Bottom Elbow
6	Screw
7	WP4450038 Whirlpool Screw
8	Screw
11	WP8203546 Whirlpool Terminal Block
12	WP4451985 Whirlpool Noise Filter Board
13	8303497 Whirlpool Oven Vent Control
14	W10790240 Whirlpool Side Assembly Complete
14	W10755214 Whirlpool Side Complete
15	Back, Control
16	WP4450551 Whirlpool Top Cabinet
18	WP4452367 Whirlpool Top Cover
21	W10491987 Whirlpool Foam Seal
