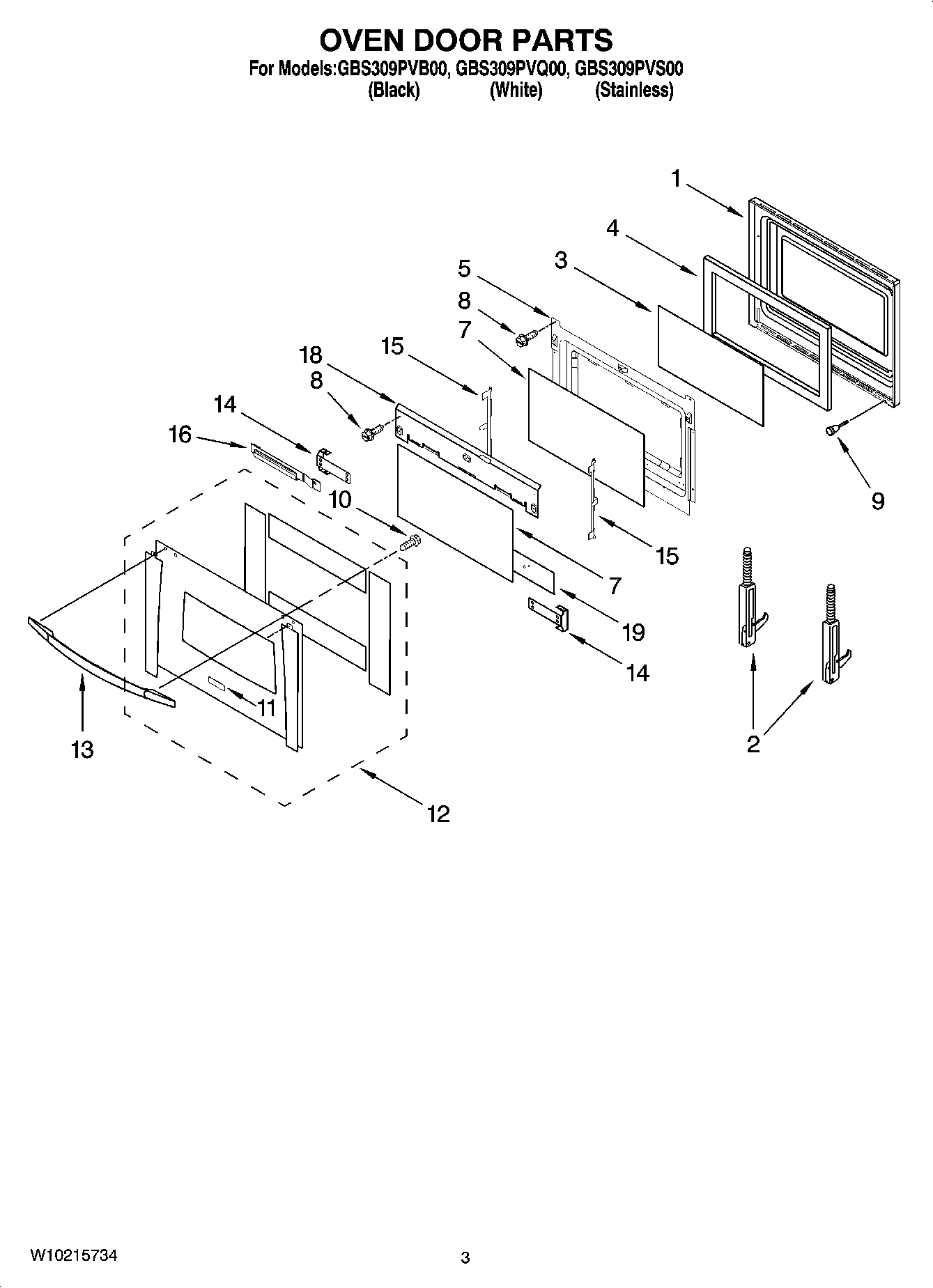

GBS309PVQ00 02 – OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP9760576 Whirlpool Door Hinge (Left)
2	Hinge, Door (For Stainless Model Only) (Right)
2	HINGE-DOOR
2	HINGE-DOOR LH/SS DOOR SPRING
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
5	WP4457132 Whirlpool Retainer
7	WP9759225 Whirlpool Inner Door Glass
8	WP4449809 Whirlpool Screw
9	4448520 Whirlpool Oven Bumper
10	WP4449743 Whirlpool Screw
11	Name Plate
12	Assembly, Door Glass (White)
12	Assembly, Door Glass (Black)
12	W10401225 Whirlpool Oven Outer Door Glass
13	Door Handle (Stainless)
13	Door Handle (Black)
13	Door Handle (White)
14	4455803 Whirlpool Oven Bracket
14	Bracket, Handle (L.Hand)
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
18	Shield, Heat
19	4457114 Whirlpool Oven Heat Shield
