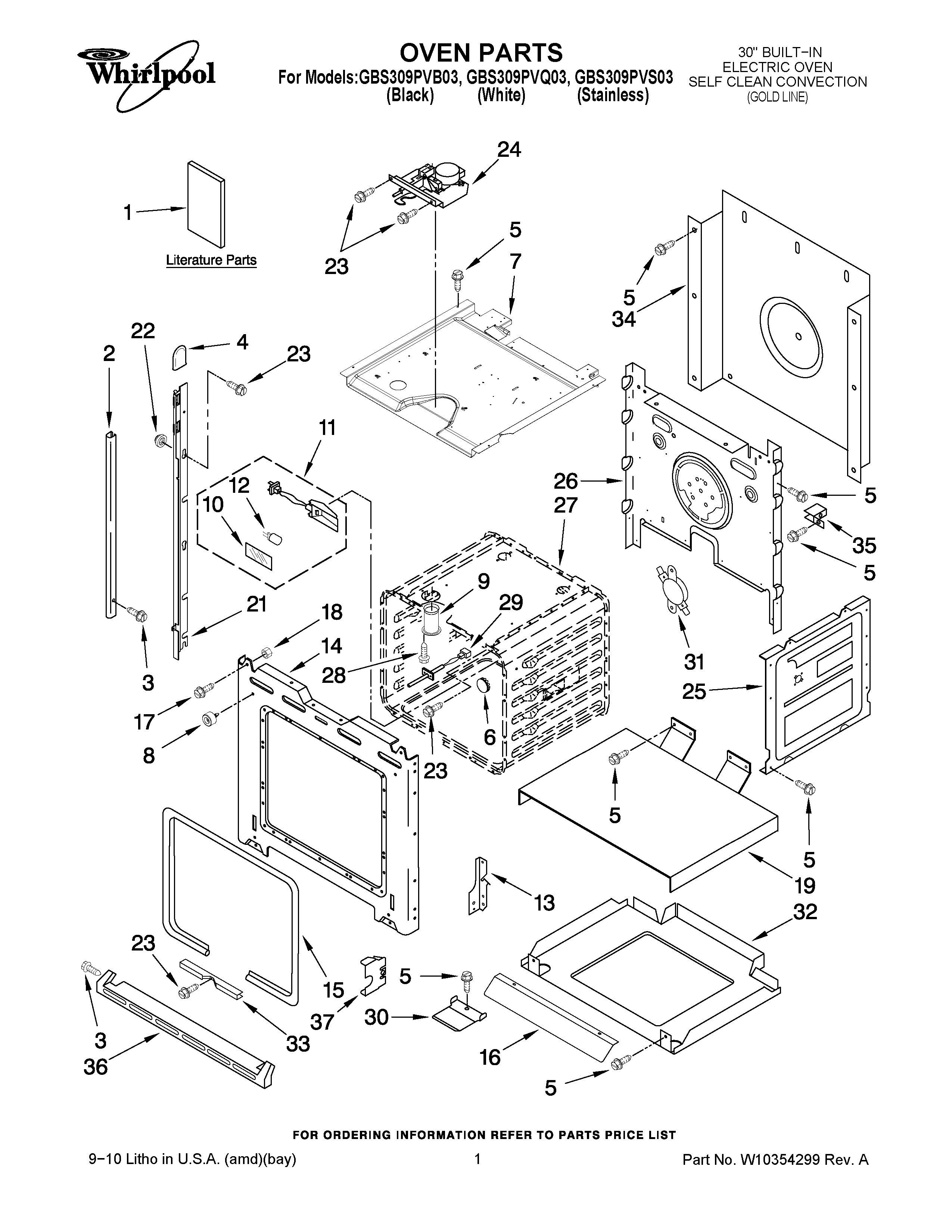

GBS309PVQ03 01 – OVEN PARTS
Written by
in
GBS309PVQ03 01 – OVEN PARTS
Products
Position
Product
NI
W11684730 Whirlpool Insulation
NI
WPL 4450365
1
Tech Sheet (French)
1
Installation Instructions (Bottom Trim)
1
Tech Sheet
1
Guide, Easy Set
1
Installation Instructions
1
Installation Instructions (Undercounter Oven)
1
Safer Cooking Tips (French)
1
SAFER COOKING TIPS (ENGLISH
2
Trim, Side Left (White)
2
Trim, Side Right (Black)
2
Trim, Side Right (White)
2
Trim, Side Right (Stainless)
2
Trim, Side Left (Stainless)
2
WPW10339493 Whirlpool Trim Assembly
3
WP3400832 Whirlpool Screw
4
Cap, Spacer
5
WP4449809 Whirlpool Screw
6
Plug, Button
7
Top Chassis
8
W10105790 Whirlpool Bumper
9
W10861715 Whirlpool Vent Tube
10
W10169756 Whirlpool Light Lens
11
WPW10307114 Whirlpool Light
12
BULB-LIGHT
13
WP4455605 Whirlpool Left Hand Hinge
13
WP4455606 Whirlpool Right Hand Hinge
14
WPW10115831 Whirlpool Front Frame
15
W11675844 Whirlpool Oven Gasket
16
9760677 Whirlpool Oven Vent Deflector
17
Screw
18
WP4450118 Whirlpool Nut
19
Support, Insulation
21
8303115 Whirlpool Oven Mounting Rail
21
8303116 Whirlpool Oven Mounting Rail
22
WP4448444 Whirlpool Grommet
23
SCREW
24
WPW10195934 Whirlpool Door Latch
25
W10782197 Whirlpool Side Panel
26
Back, Chassis
27
CABINET (NOT A SERVICEABLE PART)
28
SCREW
29
WPW10131825 Whirlpool Oven Temperature Sensor
30
4455807 Whirlpool Oven Vent Deflector
31
WP9759242 Whirlpool Thermostat
32
Base, Chassis
33
WP4448933 Whirlpool Retainer
34
WP4451747 Whirlpool Rear Cover
35
WPL 4449845
36
WPW10207689 Whirlpool Trim Kit
36
Trim, Bottom Vent (Stainless)
37
4452152 Whirlpool Oven Mounting Bracket
←
