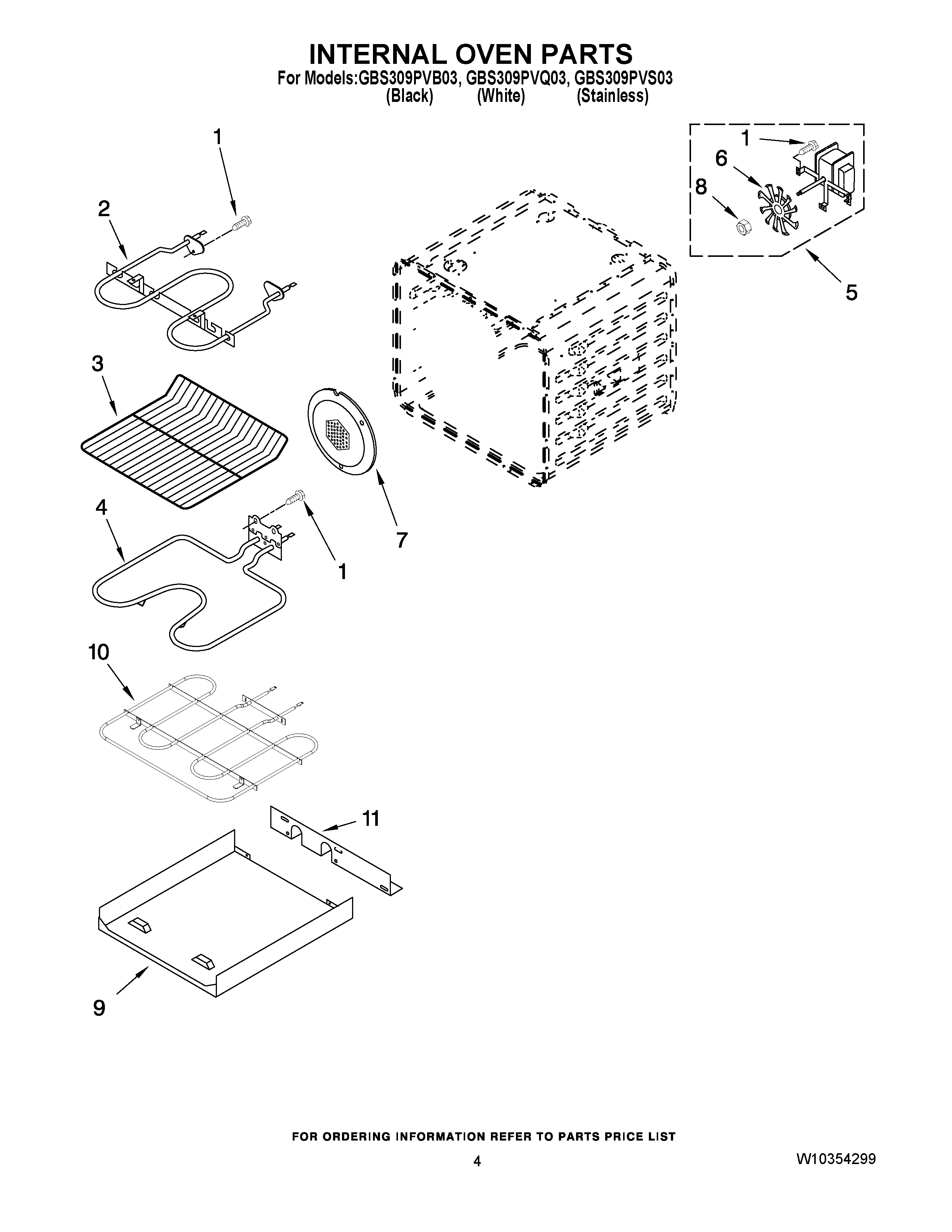

GBS309PVQ03 03 – INTERNAL OVEN PARTS

Written by

Products

Position	Product
1	SCREW
2	WPW10207400 Whirlpool Broil Element
3	WPW10179152 Whirlpool Rack Oven
4	WP9760769 Whirlpool Element Assembly
5	W10794022 Whirlpool Oven Cooktop Fan Motor
6	W10758272 Whirlpool Convection Fan
7	WPW10160821 Whirlpool Fan Cover
8	WPW10116349 Whirlpool Nut
9	Tray, Hidden Bake
10	ELMNT-BAKE
11	4450039 Whirlpool Oven Access Cover
