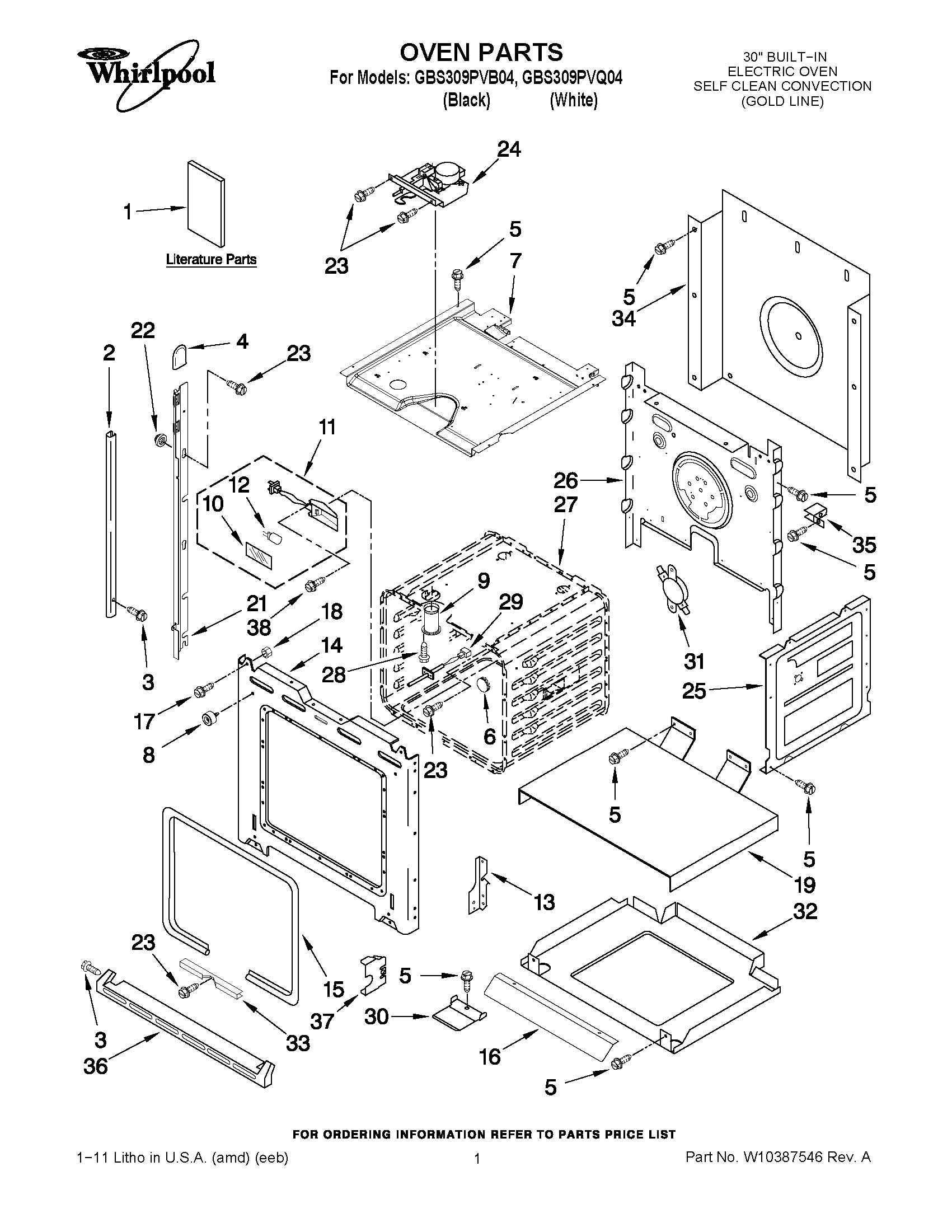

GBS309PVQ04 01 – OVEN PARTS

GBS309PVQ04 01 – OVEN PARTS

Written by

in

GBS309PVQ04 01 – OVEN PARTS

Products

PositionProduct
NIWPL 4450365
NIW11684730 Whirlpool Insulation
1Installation Instructions (Bottom Trim)
1Installation Instructions (Undercounter Oven)
1Guide, Easy Set
1Installation Instructions
1TECH SHEET (ENGLISH)
1SAFER COOKING TIPS (ENGLISH
1TECH SHEET (FRENCH)
1Safer Cooking Tips (French)
2TRIM, SIDE RIGHT (WHITE)
2TRIM, SIDE LEFT (WHITE)
2TRIM, SIDE RIGHT (BLACK)
2WPW10339493 Whirlpool Trim Assembly
3WP3400832 Whirlpool Screw
4Cap, Spacer
5SCREW
6Plug, Button
7Top Chassis
8W10105790 Whirlpool Bumper
9W10861715 Whirlpool Vent Tube
10W10169756 Whirlpool Light Lens
11WPW10307114 Whirlpool Light
12BULB-LIGHT
13WP4455606 Whirlpool Right Hand Hinge
13WP4455605 Whirlpool Left Hand Hinge
14WPW10115831 Whirlpool Front Frame
15W11675844 Whirlpool Oven Gasket
169760677 Whirlpool Oven Vent Deflector
17Screw
18WP4450118 Whirlpool Nut
19Support, Insulation
218303115 Whirlpool Oven Mounting Rail
218303116 Whirlpool Oven Mounting Rail
22WP4448444 Whirlpool Grommet
23SCREW
24WPW10195934 Whirlpool Door Latch
25W10782197 Whirlpool Side Panel
26Back, Chassis
27CABINET (NOT A SERVICEABLE PART)
28Screw
29WPW10131825 Whirlpool Oven Temperature Sensor
304455807 Whirlpool Oven Vent Deflector
31WP9759242 Whirlpool Thermostat
32Base, Chassis
33WP4448933 Whirlpool Retainer
34WP4451747 Whirlpool Rear Cover
35WPL 4449845
36WPW10207689 Whirlpool Trim Kit
374452152 Whirlpool Oven Mounting Bracket
384449748 Whirlpool Oven Screw
