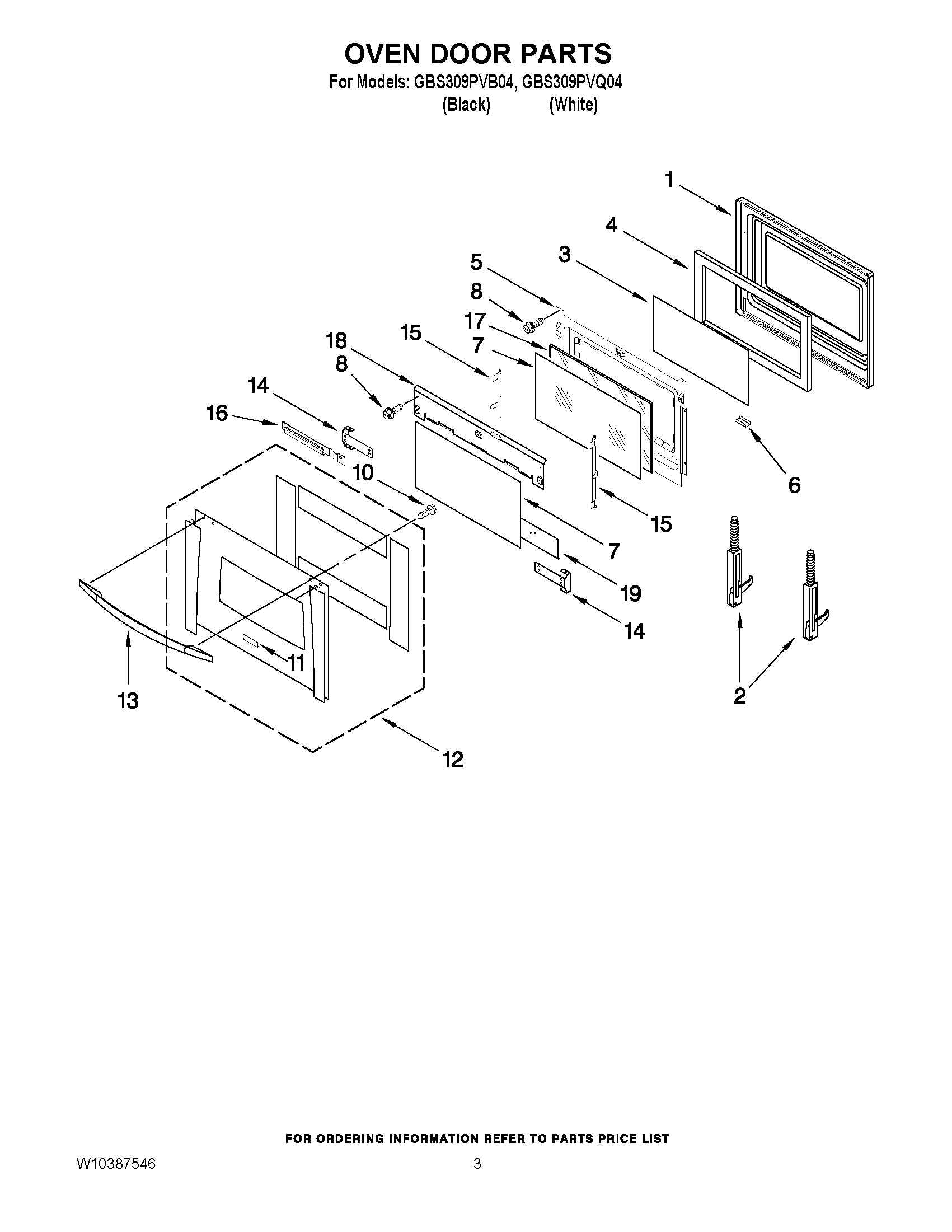

GBS309PVQ04 02 – OVEN DOOR PARTS

Products

PositionProduct
1WP9759413 Whirlpool Door Liner
2WP9760576 Whirlpool Door Hinge (Left)
2HINGE-DOOR
3WP4449259 Whirlpool Glass Window
4WP4451722 Whirlpool Door Insulation Assembly
5WP4457132 Whirlpool Retainer
6RETAINER, CLIP (BLACK)
7WP9759225 Whirlpool Inner Door Glass
8SCREW
10WP4449743 Whirlpool Screw
11NAMEPLATE
12Assembly, Door Glass (White)
12Assembly, Door Glass (Black)
13Door Handle (Black)
13Door Handle (White)
14Bracket, Handle (L.Hand)
144455803 Whirlpool Oven Bracket
15WP9759229 Whirlpool Mounting Bracket
16Bracket (3rd Glsss)
17Glass, Inner
18SHIELD, HEAT TOP
194457114 Whirlpool Oven Heat Shield
