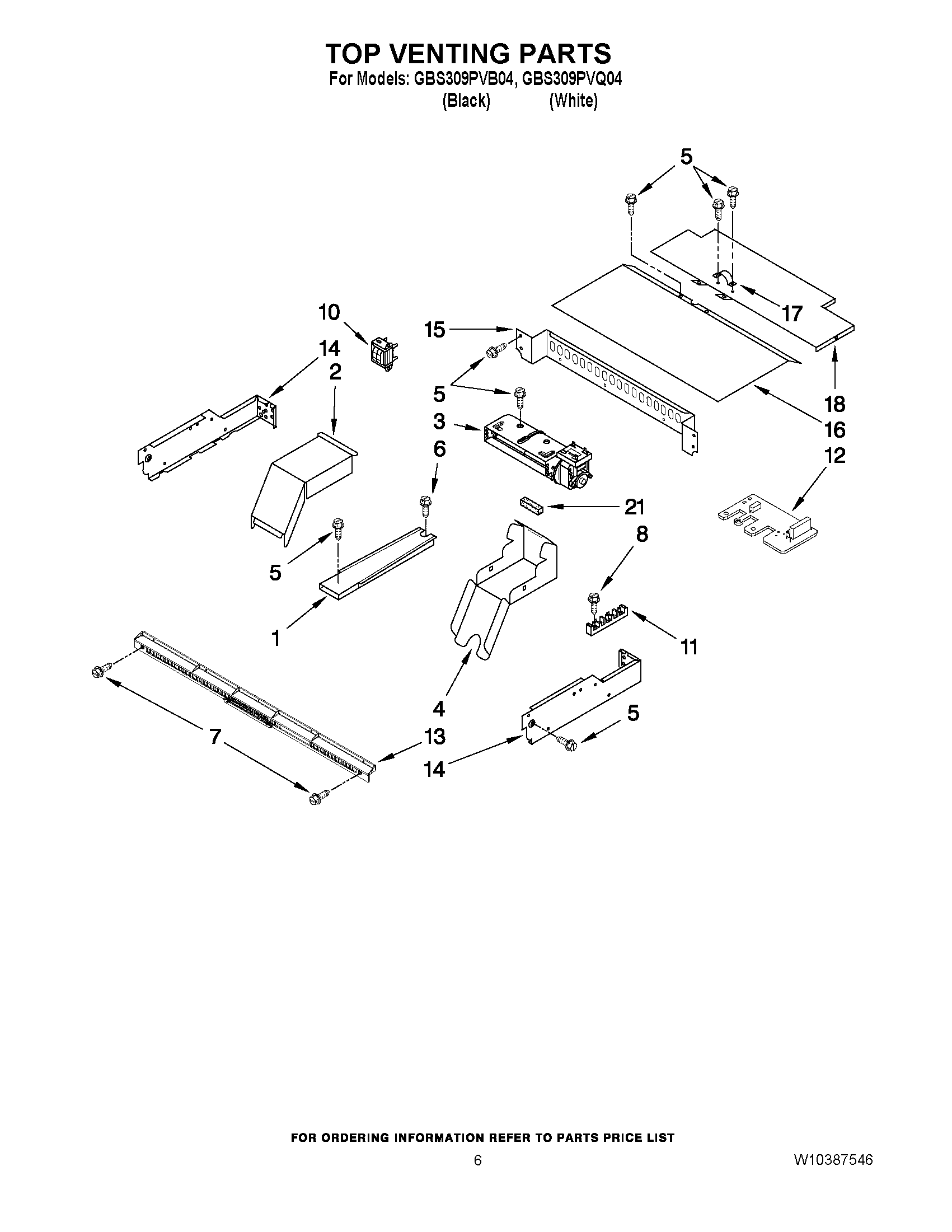

GBS309PVQ04 05 – TOP VENTING PARTS

GBS309PVQ04 05 – TOP VENTING PARTS

Written by

in

GBS309PVQ04 05 – TOP VENTING PARTS

Products

PositionProduct
14451759 Whirlpool Oven Exhaust Vent
24455178 Whirlpool Oven Top Elbow
3WPW10176670 Whirlpool Blower
44455177 Whirlpool Oven Bottom Elbow
5SCREW
6Screw
7WP4449745 Whirlpool Screw
8Screw
10Transformer
11BLOCK, TERMINAL
12WP4451985 Whirlpool Noise Filter Board
138303497 Whirlpool Oven Vent Control
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
15Back, Control
16WP4450551 Whirlpool Top Cabinet
174448664 Whirlpool Oven Mounting Bracket
18WP4452367 Whirlpool Top Cover
21W10491987 Whirlpool Foam Seal
