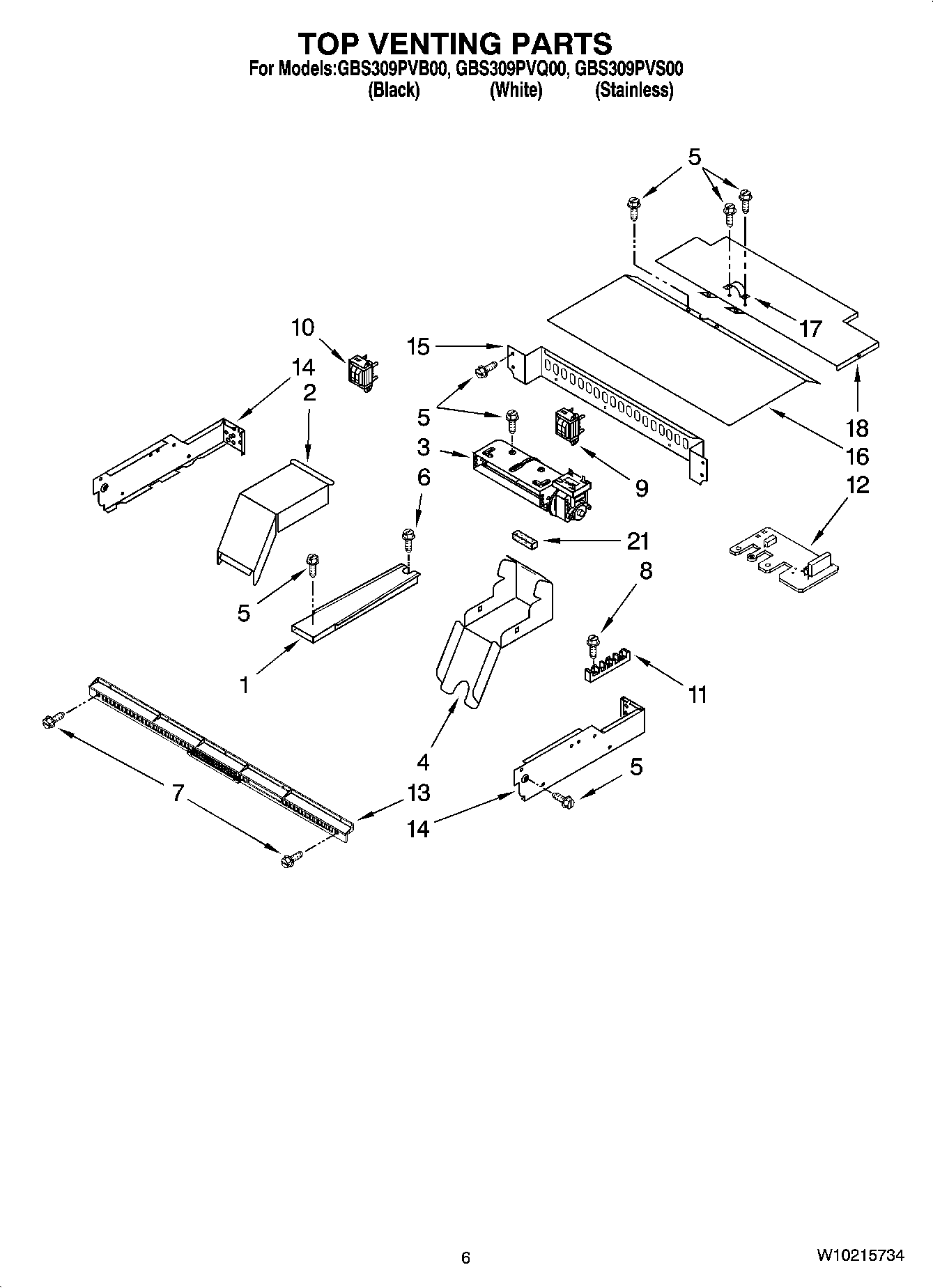

GBS309PVS00 05 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
WIRING HARNESS PARTS
WP261869 Whirlpool Microwave Paint
Wire (14 Ga. 150 c Blue)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Yellow)
Miscellaneous
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 200 c Brown)
WPL 591014
4451761 Whirlpool Oven Support Bracket
WP4450952 Whirlpool Conduit
261900 Whirlpool Microwave Spray
Harness, Main
SPLICING WIRES–25FT. LENGTH
242831 Whirlpool Oven Wire
4452400 Whirlpool Microwave Wire Harness
Nut
Wire, 25` Roll (Black 14 Ga.)
WP4449809 Whirlpool Screw
72017 Whirlpool Appliance Touch-Up Paint White
Wire, 25` Roll (Red 14 Ga.)
350930 Whirlpool White Spray Paint
4448664 Whirlpool Oven Mounting Bracket
4450800 Whirlpool Oven Screw
WPW10339879 Whirlpool Wire Tie
WP4448950 Whirlpool Screw
8528351 Whirlpool Clip
WP482338 Whirlpool Refrigerator Adhesive
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
14451759 Whirlpool Oven Exhaust Vent
24455178 Whirlpool Oven Top Elbow
3WPW10176670 Whirlpool Blower
44455177 Whirlpool Oven Bottom Elbow
6Screw
7WP4449745 Whirlpool Screw
8Screw
9WP9760588 Whirlpool Transformer
10Transformer
11WP8203546 Whirlpool Terminal Block
12WP4451985 Whirlpool Noise Filter Board
138303497 Whirlpool Oven Vent Control
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
15Back, Control
16WP4450551 Whirlpool Top Cabinet
18WP4452367 Whirlpool Top Cover
21W10491987 Whirlpool Foam Seal
