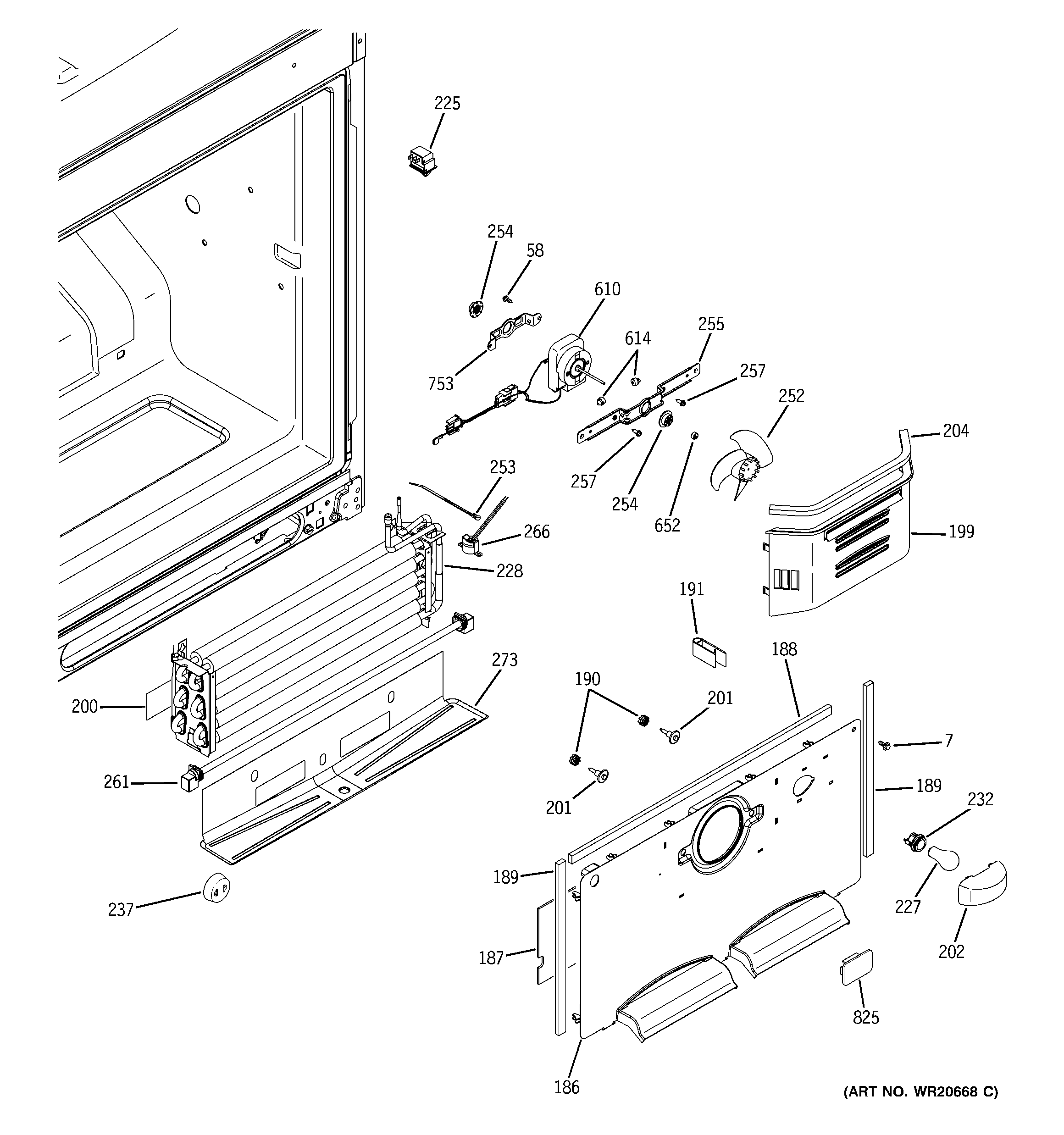

GBSC3HBXCRBB FREEZER SECTION

GBSC3HBXCRBB FREEZER SECTION

Written by

in

GBSC3HBXCRBB FREEZER SECTION

Products

PositionProduct
7WR01X10606 GE Refrigerator Screw 8-18 CA HX 1/2 S
58WR01X10588 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
186GEN WR17X12816
187GEN WR14X10260
188GEN WR14X10261
189GEN WR14X10262
190WR02X11331 GE Refrigerator Grommet
191WR02X10522 GE Refrigerator Clamp Tube
199GEN WR17X12505
200WR14X10317 GE Harness Insulation
201WR01X10685 GE Scraper 8-18 Assembly
202GEN WR02X13315
204GEN WR14X10264
225FREEZER LIGHT SWITCH
227RANGE ONLY 40W 120V APPL BULB
228WR85X10107 GE Refrigerator Low Side Assembly
232WR2X9391 GE Socket and Terminal
237WR02X10693 GE Refrigerator Plug Cover and Gasket Assembly
252EVAPORATOR FAN BLADE
253WR02X11607 GE Refrigerator Wire Tie
255WR17X12507 GE Evaporator Fan Front Bracket
257WR01X10620 GE Refrigerator Screw 10-32
261HEATER DEF ASM
266WR50X10090 GE Refrigerator Defrost Thermostat
273GEN WR17X12506
610WR60X10282 GE Refrigerator Motor & Jumper Assembly
614BUMPER
652WR02X12149 GE Refrigerator Ring
753WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
825GEN WR02X13246
