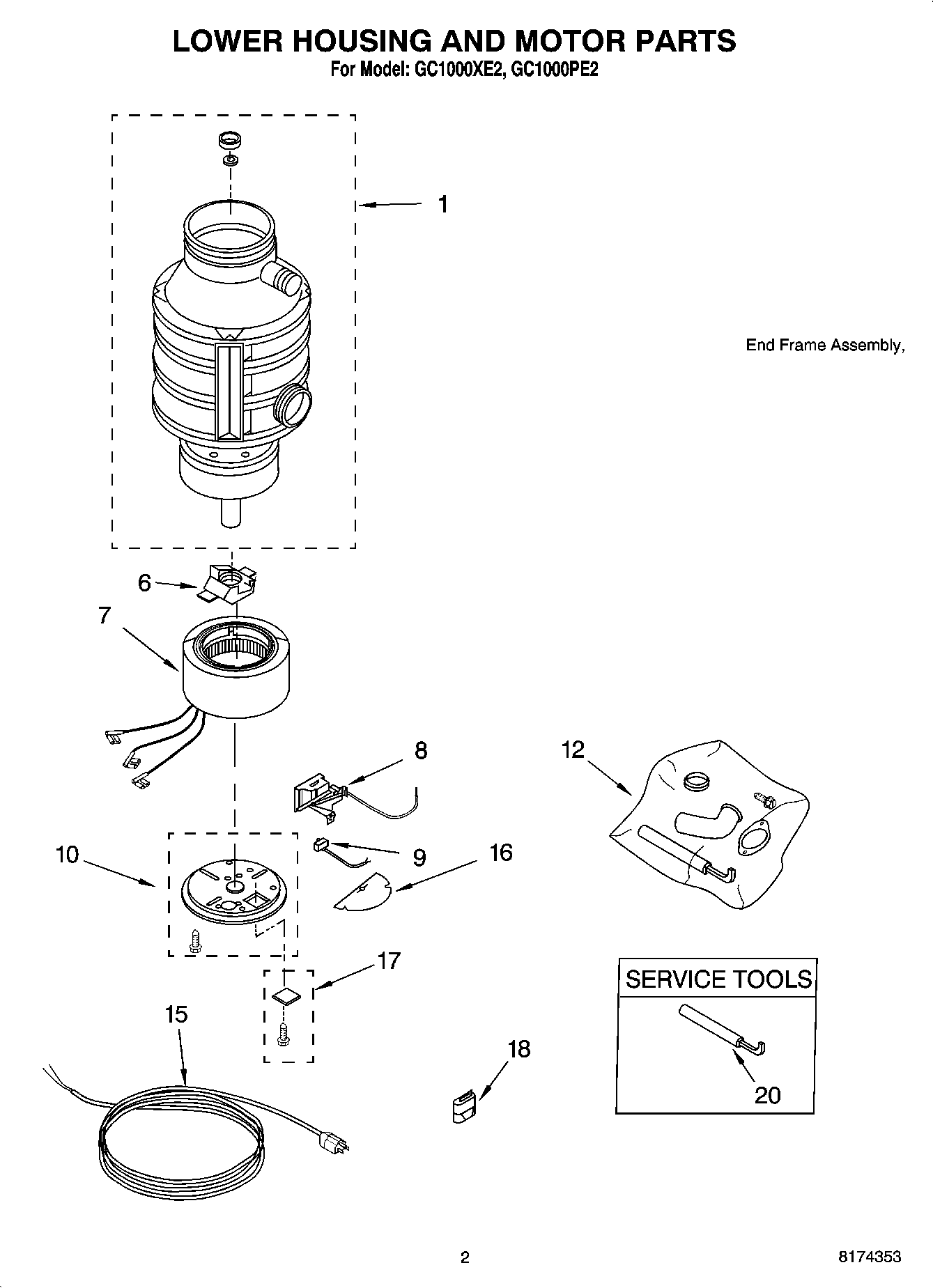

GC1000PE2 02 – LOWER HOUSING AND MOTOR PARTS

GC1000PE2 02 – LOWER HOUSING AND MOTOR PARTS

Written by

in

GC1000PE2 02 – LOWER HOUSING AND MOTOR PARTS

Products

PositionProduct
1Enclosure Assy (Not Serviceable)
64211322 Whirlpool Disposer Actuator
7Stator Assembly
88174312 Whirlpool Disposer Switch
9882726 Whirlpool Disposer Overload Protector
108174345 Whirlpool Frame
128174355A Whirlpool Disposer Installation Kit
15PLUG & CORD (GC1000PE4 ONLY)
174211351 Whirlpool Shield
18BUSHING (GC1000PE4 ONLY)
20Guide, Use And Care
20WP8174310 Whirlpool Disposer Wrench
20FOLLOWING PARTS NOT ILLUSTRATED
