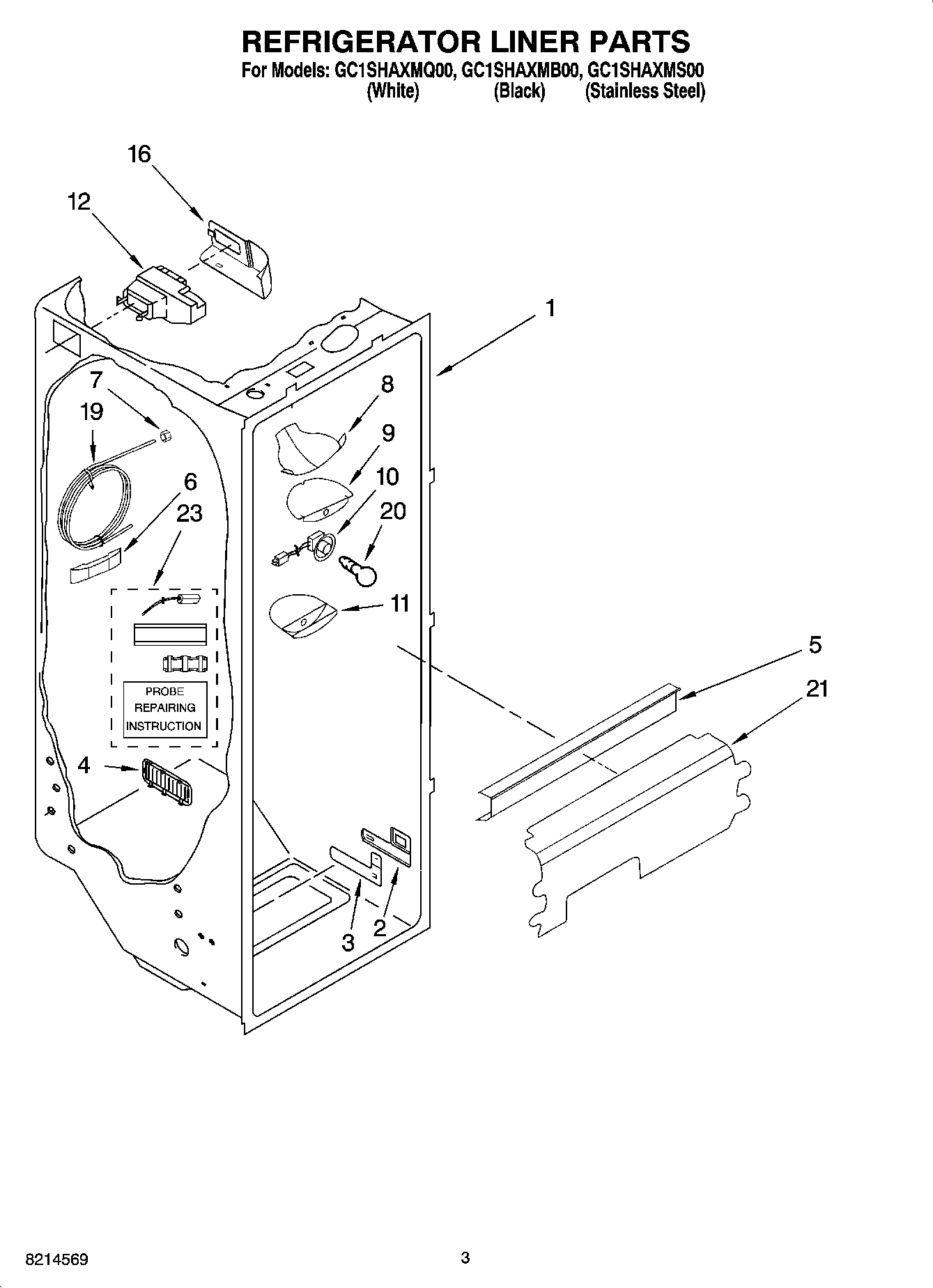

GC1SHAXMB00 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Escutcheon, Meat Pan Control
32182757 Whirlpool Refrigerator Slide
4Louver
5Trim, Light Lens
6Support, Sensor
7Nut, Compression
8COVER
9Bracket
10Socket Assembly
11Housing, Light
12WP2216112 Whirlpool Damper Control Assembly
16Air Diffuser Cover
19WP2256126 Whirlpool Refrigerator Reservoir
20Light Bulb
21Light Lens
23Thermistor Kit
