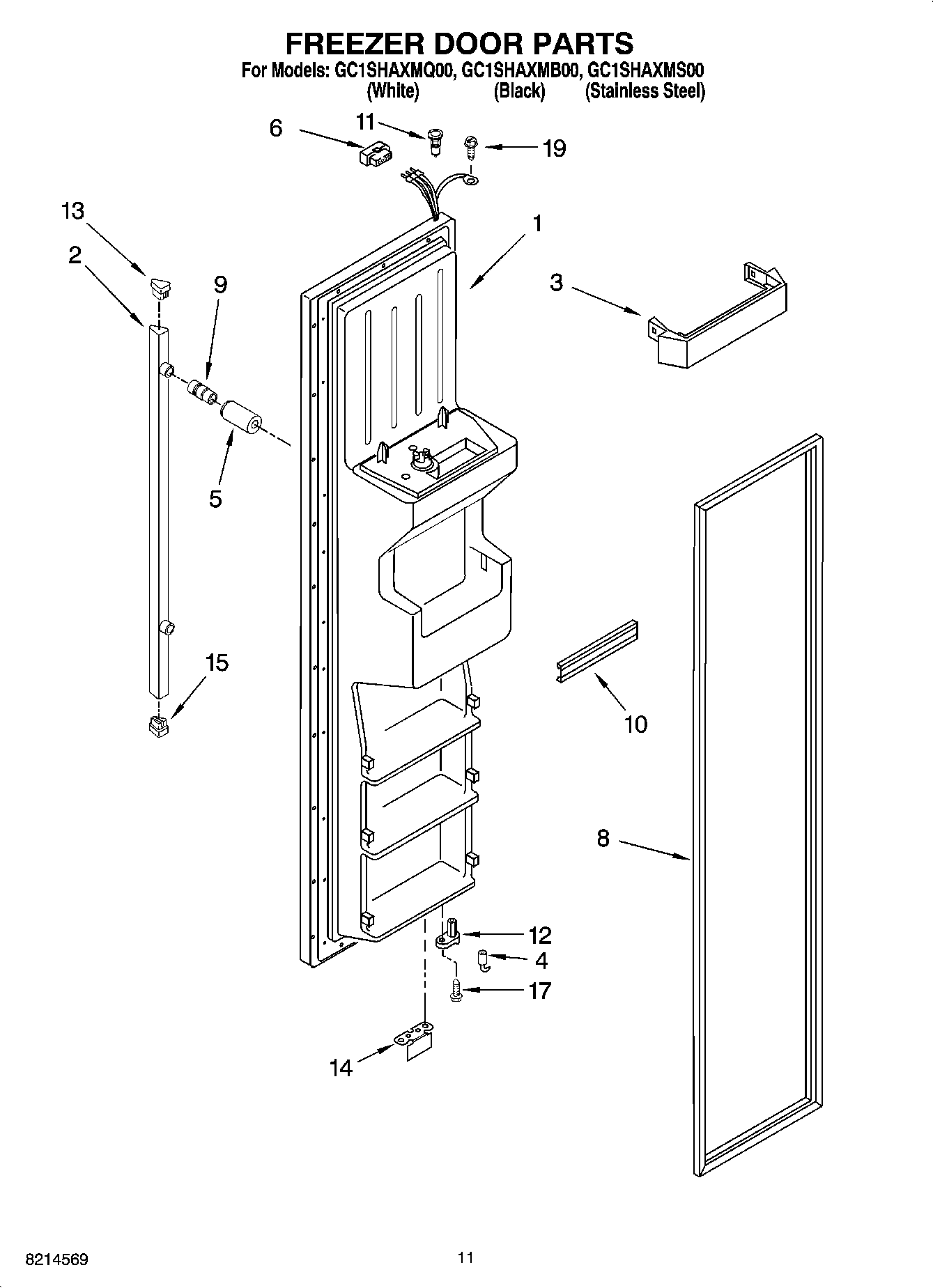

GC1SHAXMB00 07 – FREEZER DOOR PARTSadmin2025-04-26T11:38:29+00:00GC1SHAXMB00 07 – FREEZER DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Freezer Door (Includes 6,8 Note: Doesn`t include Dispenser Assy See page 13 to order parts) (SS) |
| 1 | Freezer Door (Includes 6,8 Note: Doesn`t include Dispenser Assy See page 13 to order parts) (Black) |
| 1 | Freezer Door (Includes 6,8 Note: Doesn`t include Dispenser Assy See page 13 to order parts) (White) |
| 2 | Handle (White) |
| 2 | Handle (Black) |
| 3 | Shelf Bin |
| 4 | WP4373559 Whirlpool Fitting |
| 5 | Support, Inner Handle |
| 6 | Connector Kit |
| 8 | Door Gasket, Magnetic (Black) |
| 8 | Door Gasket, Magnetic (White) |
| 9 | Support, Handle (Black) |
| 9 | Support, Handle (White) |
| 10 | WPW10307490 Whirlpool Door Trim Assembly |
| 11 | Thimble-Top |
| 12 | WP2182179 Whirlpool Cam Closer |
| 13 | Plug, Handle |
| 14 | Bracket, Door Stop (Black) |
| 14 | Bracket, Door Stop (Chrome) |
| 15 | Plug, Handle (Bottom) |
| 17 | WP3400906 Whirlpool Refrigerator Screw |
| 19 | WP3196175 Whirlpool Screw |
