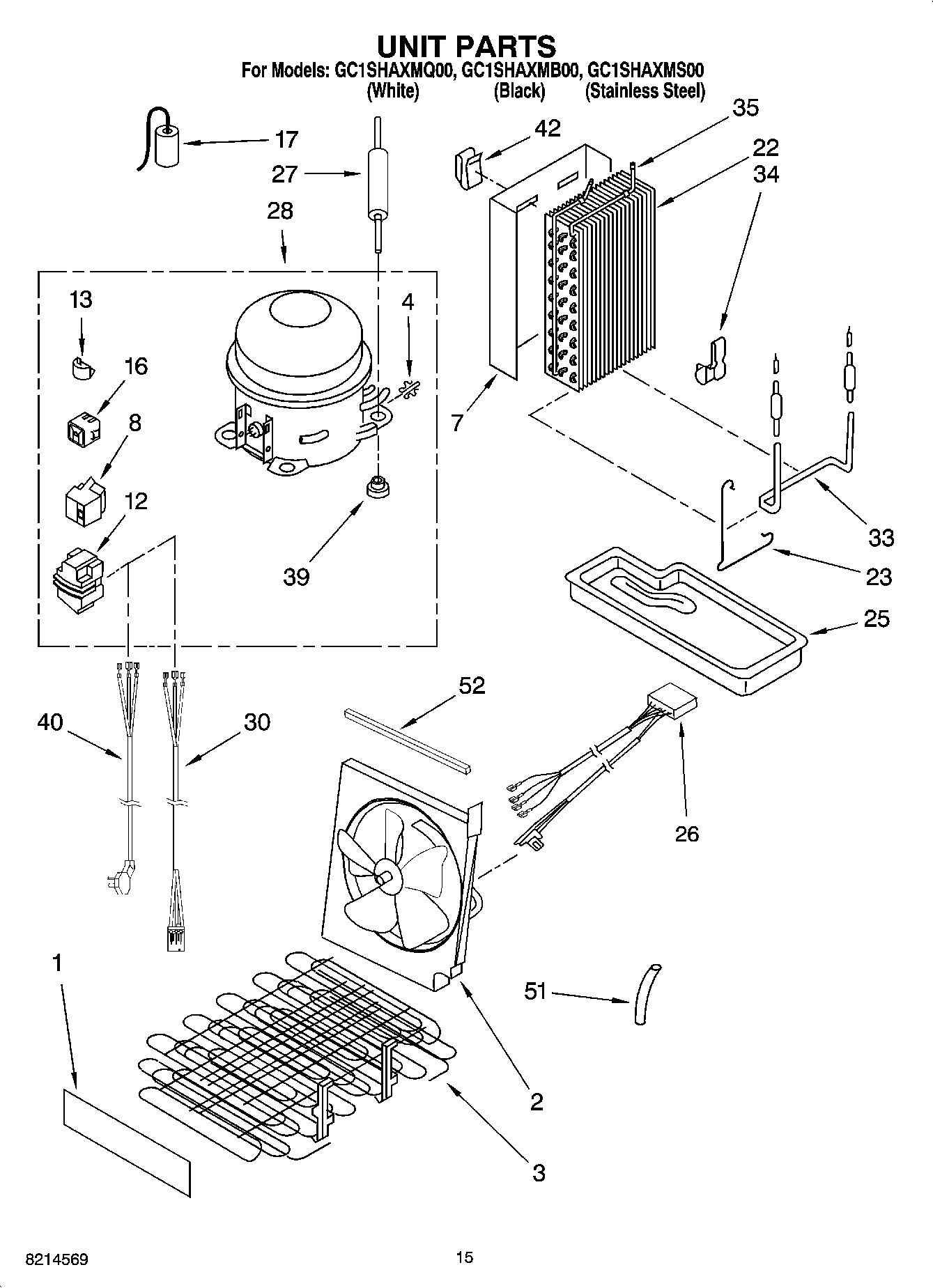

GC1SHAXMB00 09 – UNIT PARTS

Products

Position	Product
1	Insulator, Condenser
2	Fan Motor Assembly (Includes Wiring Harness 26)
3	Condenser Assembly
4	Clip, Compressor (4)
7	Heat Shield
8	Cover, Connection
12	Cover (Overload)
13	WP2262181 Whirlpool Refrigerator Start Relay
13	WP2187145 Whirlpool Refrigerator Overload
16	W10920279 Whirlpool Refrigerator Start Relay
17	Capacitor (Production)
22	WP2188823 Whirlpool Refrigerator Evaporator
23	Clamp
25	Tray, Evaporator
26	Harness, Wiring (Fan Motor/Unit)
27	Drier
28	W10309990 Whirlpool Refrigerator Compressor
30	Harness, Wiring (Overload)
33	WP2323198 Whirlpool Refrigerator Heater
34	Clip
35	Bi-Metal, Defrost
39	WP2163786 Whirlpool Refrigerator Grommet
39	WP4387558 Whirlpool Refrigerator Compressor Grommet
40	Cord, Power
42	Clip, Heat Shield
51	SLEEVE
52	GASKET
52	Following Parts Not Illustrated and Optional Parts Not Included
52	VALVE, ACCESS (5/8``)
52	VALVE, ACCESS (1/2``)
52	WP978025 Whirlpool Refrigerator Valve
52	978030 Whirlpool Refrigerator Valve
52	978027 Whirlpool Refrigerator Primary Valve
52	978026 Whirlpool Refrigerator Primary Valve
52	876764 Whirlpool Refrigerator Primary Valve
52	REFRIGERANT CHARGE 5.0 oz. (R-134A)
