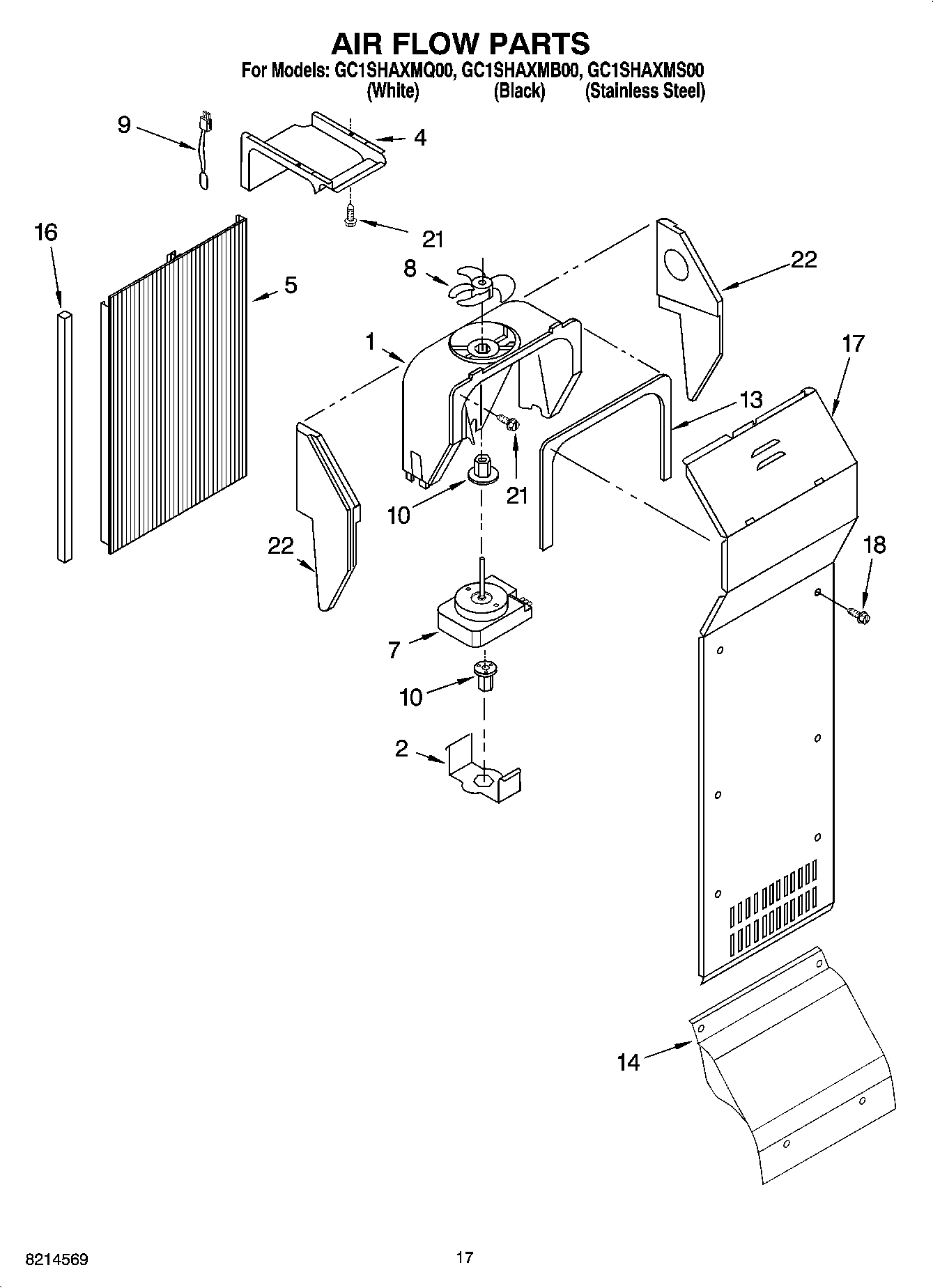

GC1SHAXMB00 10 – AIR FLOW PARTS

Products

PositionProduct
1Fan Scroll
2WP2155590 Whirlpool Refrigerator Retainer
4Air Duct, Upper
5Air Duct Freezer
7Fan Motor
8WP2169142 Whirlpool Fan Blade
9Thermistor Kit
10Fan Grommet
13WP2155789 Whirlpool Refrigerator Gasket
14Cover, Lower Evaporator
164388500 Whirlpool Refrigerator Gasket
17Cover, Evaporator (Includes 9)
18SCREW
21WP489478 Whirlpool Refrigerator Screw
224388358 Whirlpool Refrigerator Support Bracket
