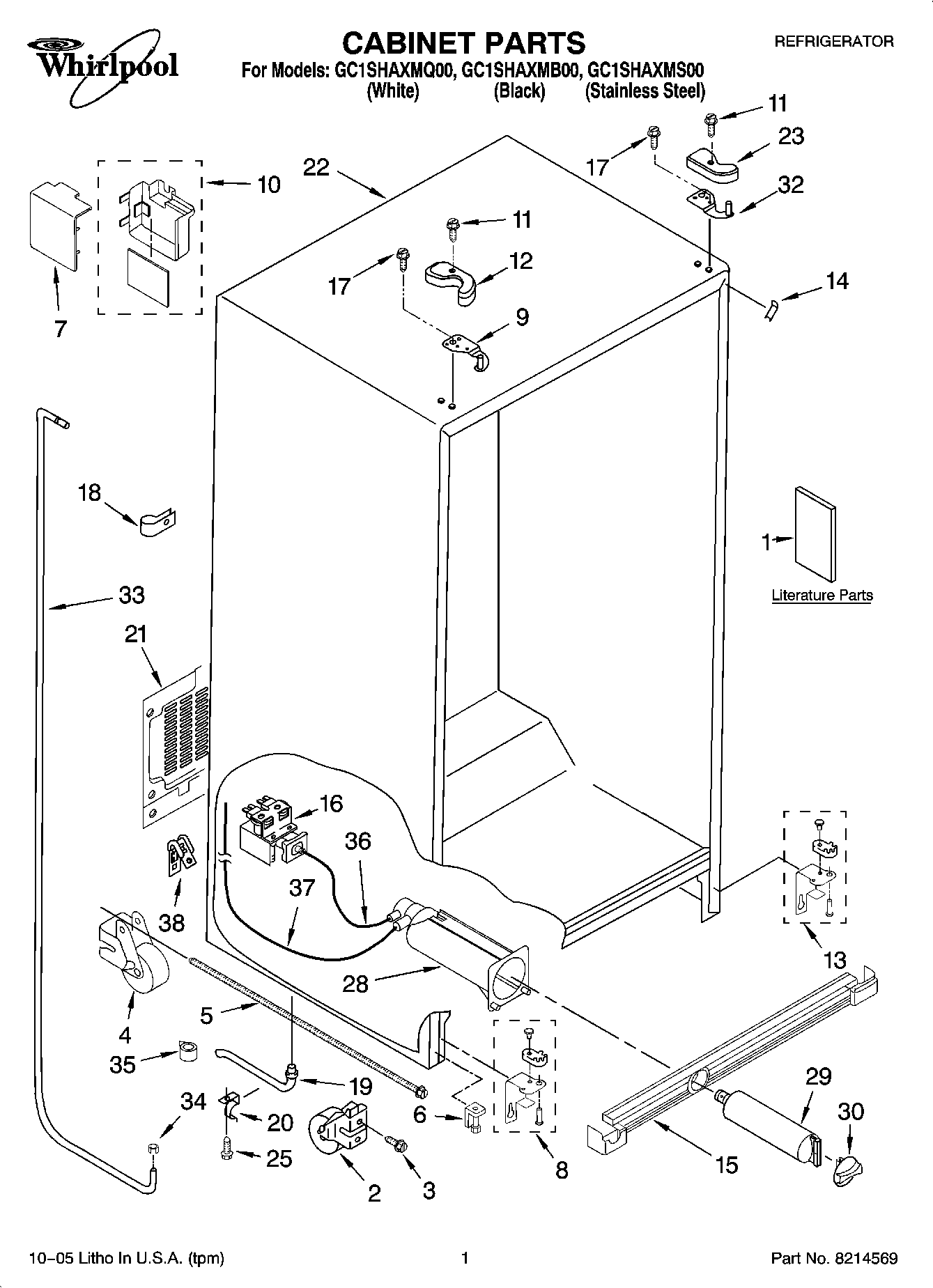

GC1SHAXMQ00 01 – CABINET PARTS

Products

Position	Product
1	Literature Energy Guide (Owners Manual)
1	Energy Guide (English)
1	Energy Guide (Spanish)
1	Energy Guide (Service & Wiring Sheet)
1	Energy Guide (Modular Icemaker Service Sheet)
2	Front Roller (2)
3	SCREW
4	Roller (Rear) (2)
5	BOLT
6	Holder, Adjustment
7	Cover, Control Box
8	Hinge, Bottom FC
9	Hinge Top (FC)
10	P.C. Board, Main Control
11	WP8281227 Whirlpool Screw
12	Hinge Cover (FC) (White)
12	Hinge Cover (FC) (Black)
13	Hinge, Bottom RC
14	Filler, Wrapper (White)
14	Filler, Wrapper (Black)
15	Grille (Black)
15	Grille (White)
16	Valve, Solenoid
17	WP489464 Whirlpool Refrigerator Screw
18	Clamp, Tube
19	Extension Tube
20	WP1108439 Whirlpool Refrigerator Clip
21	Cover, Unit
22	Cabinet (Not A Serviceable Part)
23	Hinge Cover (RC) (White)
23	Hinge Cover (RC) (Black)
25	Screw
28	WP2199840 Whirlpool Refrigerator Housing
29	EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
30	WP2186494W Whirlpool Water Filter Cap
30	WP2186494B Whirlpool Refrigerator Filter Cap
32	Hinge Top, (RC)
33	Hose, Water
34	WP627018 Whirlpool Refrigerator Nut
35	VALVE
36	W11496481 Whirlpool Refrigerator Water Tube
37	Tube, Filter Inlet
38	CLAMP
