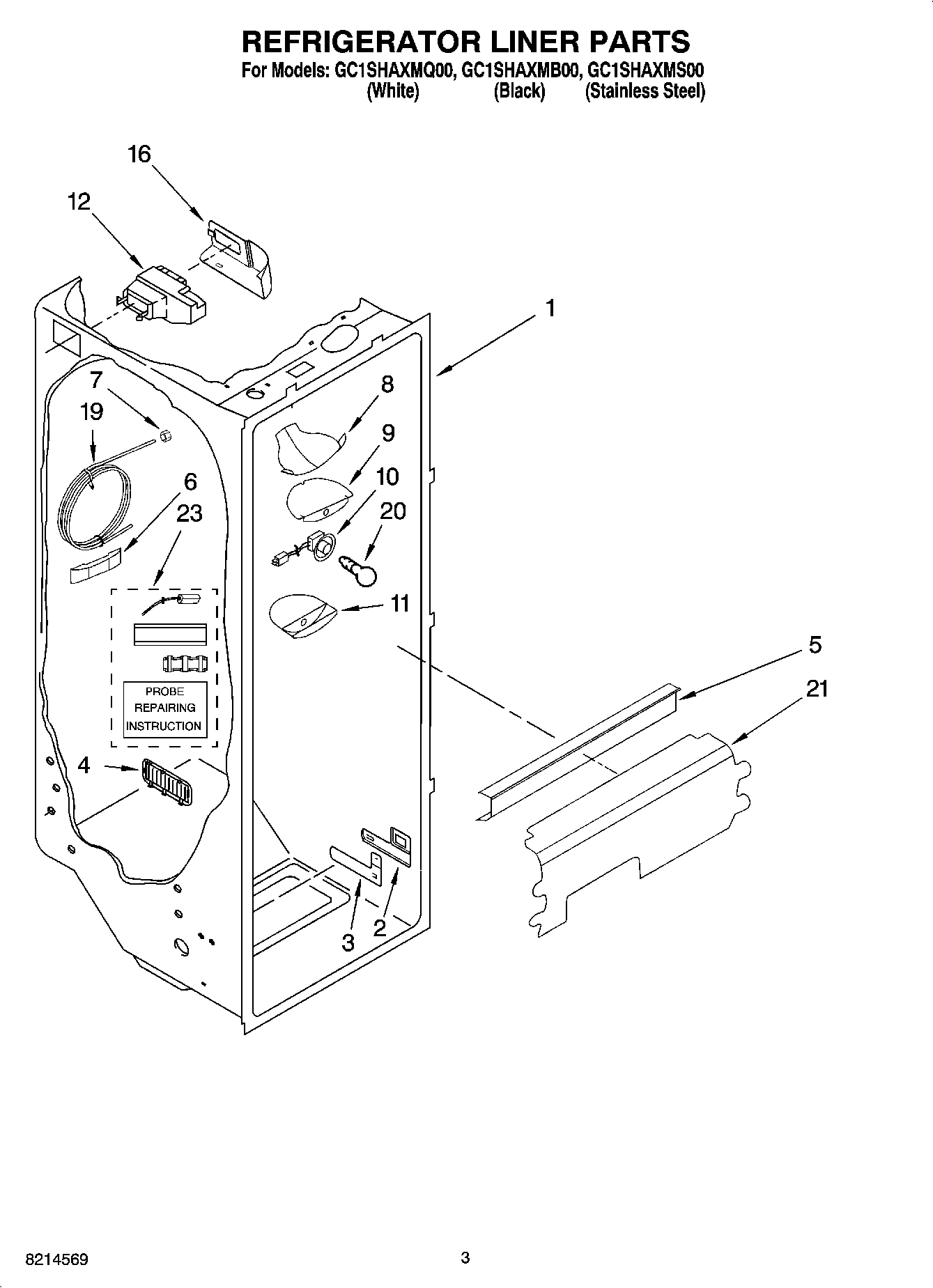

GC1SHAXMQ00 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Escutcheon, Meat Pan Control
3	2182757 Whirlpool Refrigerator Slide
4	Louver
5	Trim, Light Lens
6	Support, Sensor
7	Nut, Compression
8	COVER
9	Bracket
10	Socket Assembly
11	Housing, Light
12	WP2216112 Whirlpool Damper Control Assembly
16	Air Diffuser Cover
19	WP2256126 Whirlpool Refrigerator Reservoir
20	Light Bulb
21	Light Lens
23	Thermistor Kit
