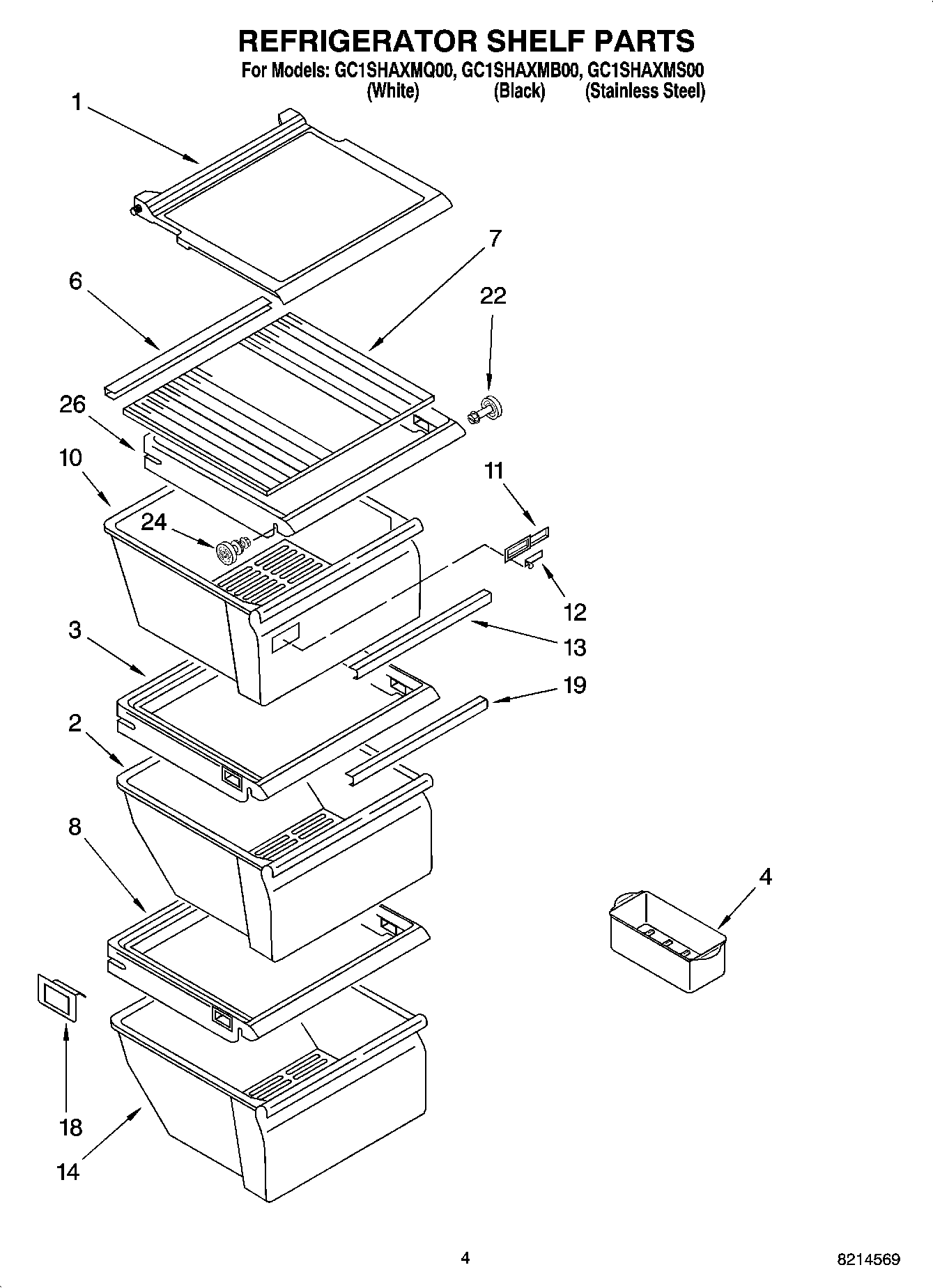

GC1SHAXMQ00 03 – REFRIGERATOR SHELF PARTS

GC1SHAXMQ00 03 – REFRIGERATOR SHELF PARTS

Written by

in

GC1SHAXMQ00 03 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1Shelf Assembly Glass Sliding
2Pan, Meat (Center)
3Cover, Center Pan
4W10136387A Whirlpool Refrigerator Egg Container
6TRIM
7Glass, Crisper Cover
8Cover, Meat Pan
10Crisper Pan
11WP2179343 Whirlpool Refrigerator Control Body
12Slide, Humidity Control
13Trim, Handle
14Meat Pan (Botttom)
18DEFLECTOR
19Trim, Handle
22WP2196483 Whirlpool Refrigerator Shelf Stud
24W11223328 Whirlpool Refrigerator Shelf Stud
26Cover, Crisper Pan
