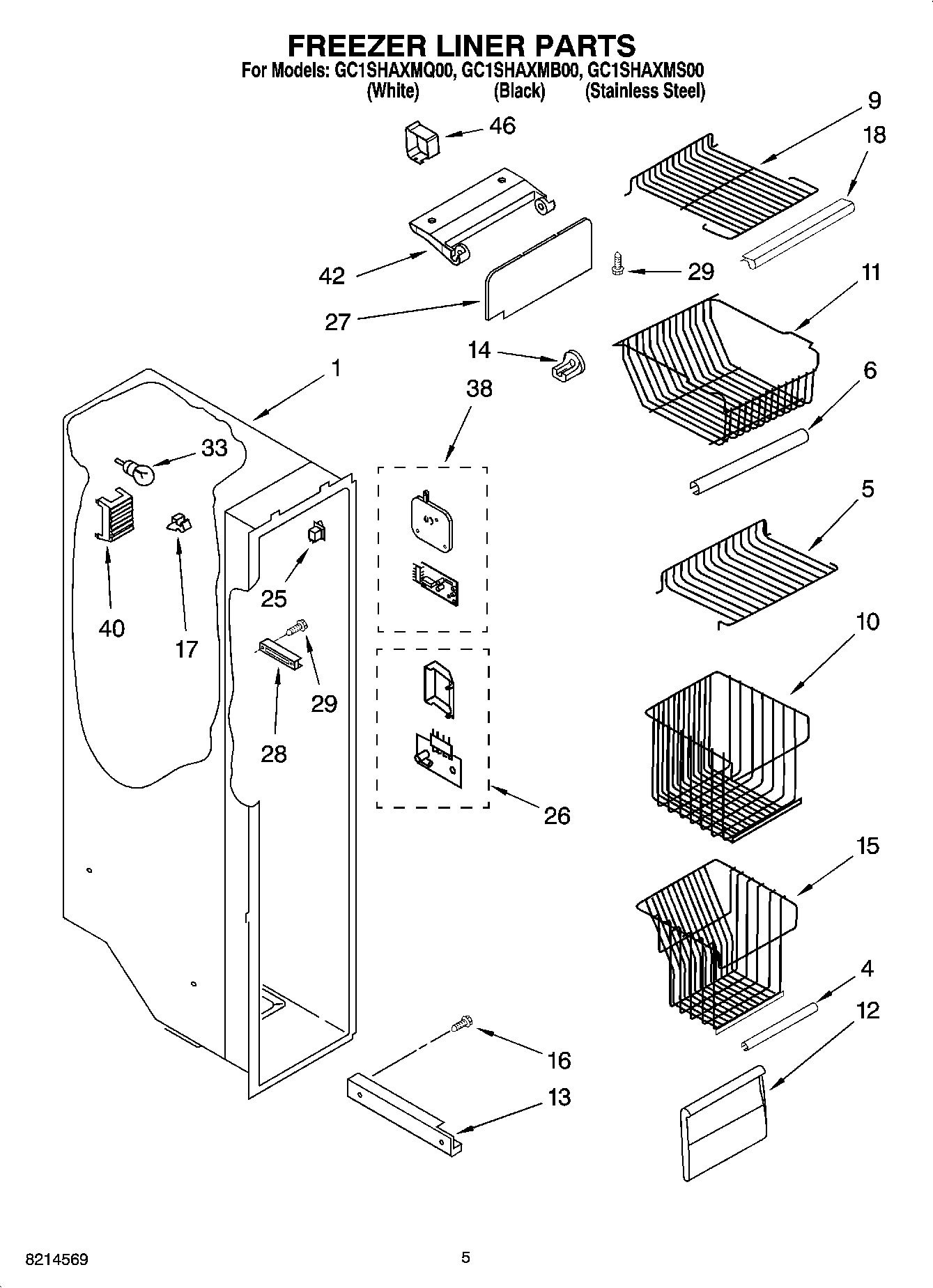

GC1SHAXMQ00 04 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part)
4	Trim, Basket
5	Shelf, Lower
6	Trim
9	Shelf, Slide Out Upper
10	Basket, Tall
11	Basket
12	Front, Basket
13	Shelf Track (Left Side)
13	Shelf Track (Right Side)
14	Stud, Rear
15	Basket, Lower
16	W10759522 Whirlpool Screw
17	2215823 Whirlpool Refrigerator Clip
18	Trim
25	WP4387911 Whirlpool Refrigerator Switch
26	P.C. Board Emitter
27	Door, Ice
28	Track, Ice Maker Mounting (Left)
28	Track, Ice Maker Mounting (Right)
29	WP489478 Whirlpool Refrigerator Screw
33	Light Bulb
38	P.C. Board, Receiver
40	Light Shield
42	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
46	Shield, Wiring
