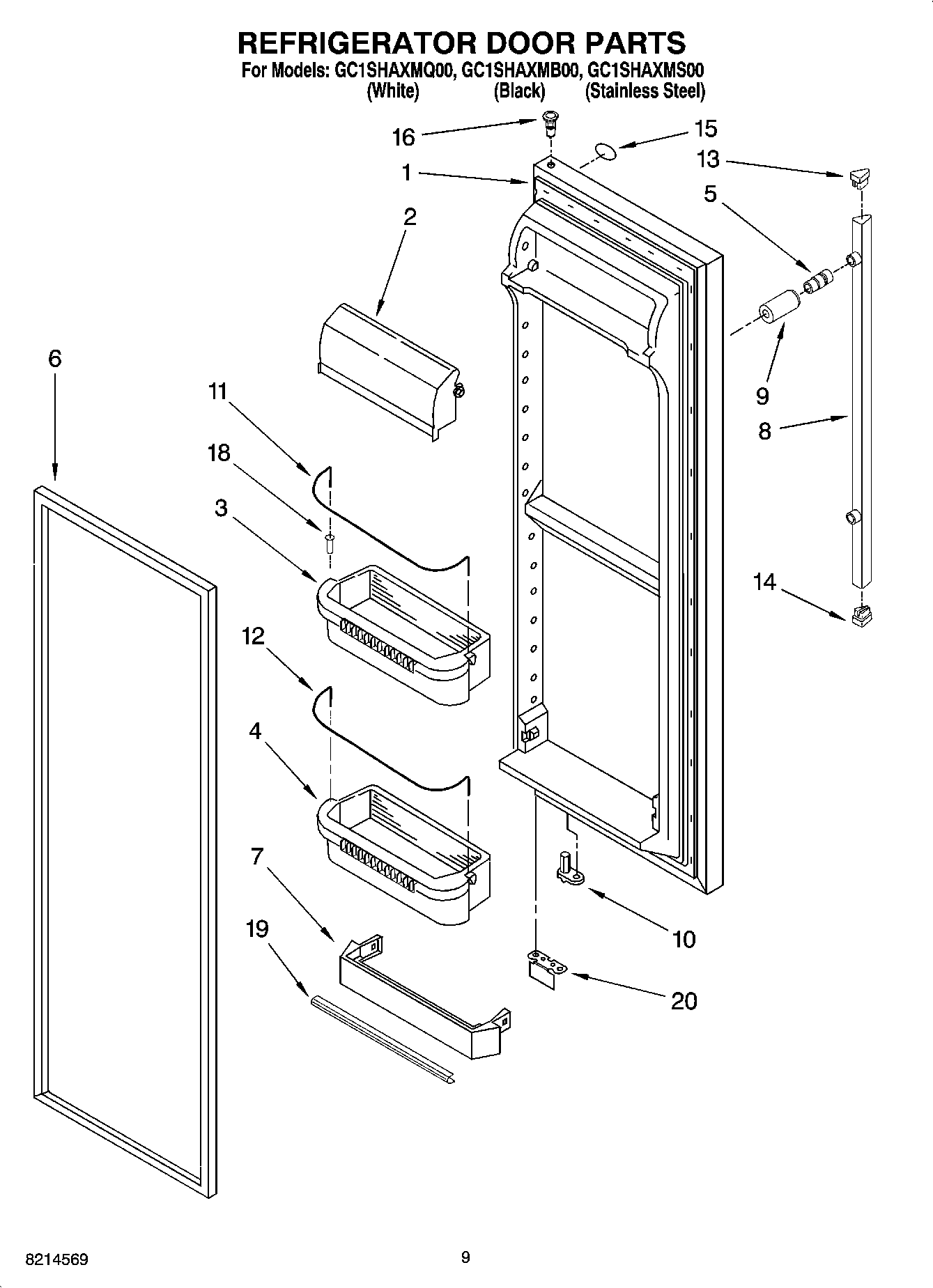

GC1SHAXMQ00 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (Stainless Steel)
1	Refrigerator Door (Includes Item 6) (White)
1	Refrigerator Door (Includes Item 6) (Black)
2	Compartment Door
3	Shelf Bin (Upper)
4	Shelf Bin (Lower)
5	Support, Inner Handle
6	Door Gasket, Magnetic (White)
6	Door Gasket, Magnetic (Black)
7	Shelf Bin
8	Handle (White)
8	Handle (Black)
9	Support, Handle (White)
9	Support, Handle (Black)
10	WP2182179 Whirlpool Cam Closer
11	Retainer, Bottle
12	Retainer, Bottle (Lower)
13	Plug, Handle
14	Plug, Handle (Bottom)
15	WP2213265 Whirlpool Refrigerator Nameplate
16	Thimble-Top
18	BUSHING
19	Trim
20	Bracket, Door Stop (Black)
20	Bracket, Door Stop (Chrome)
