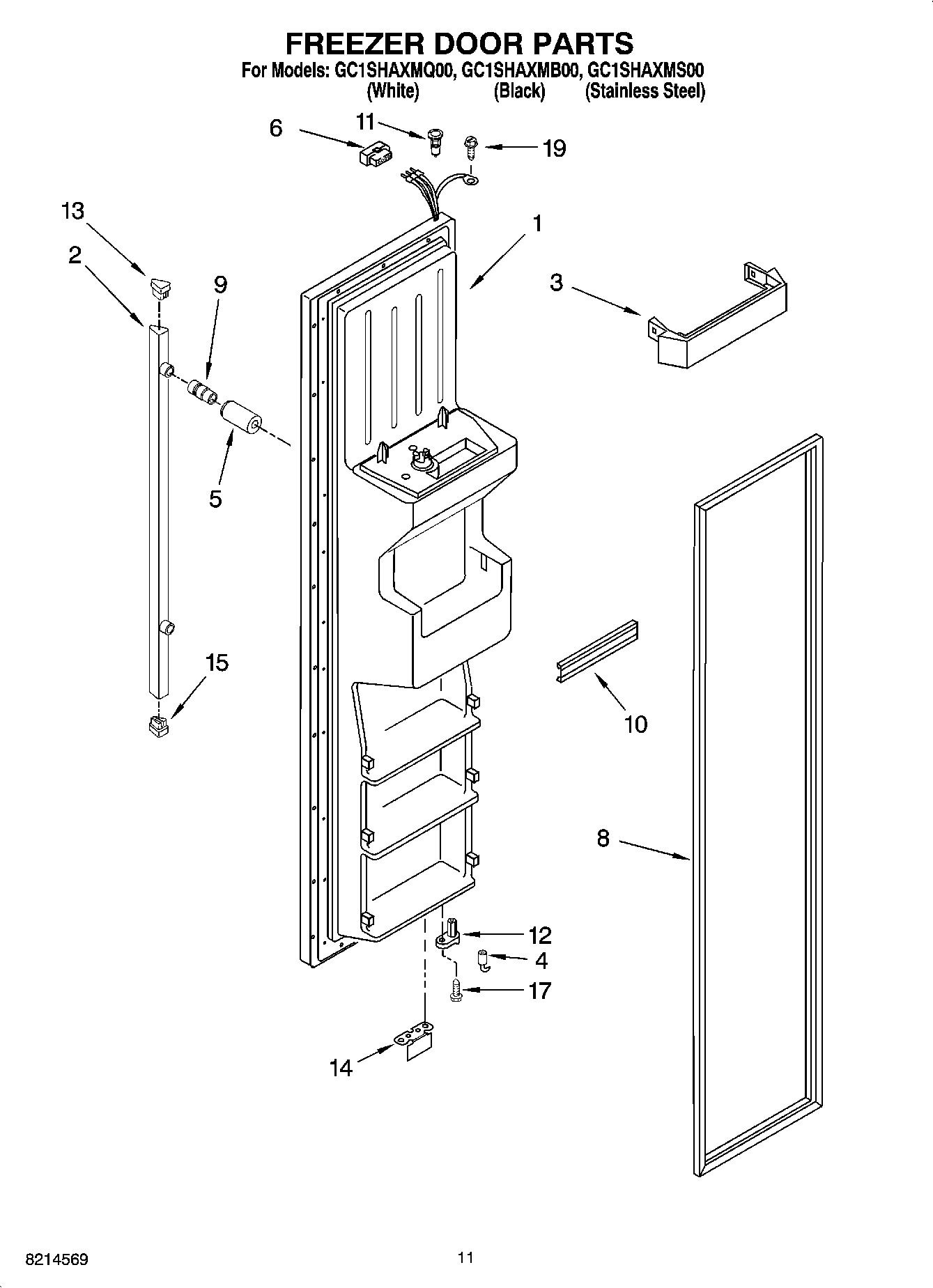

GC1SHAXMQ00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes 6,8 Note: Doesn`t include Dispenser Assy See page 13 to order parts) (SS)
1Freezer Door (Includes 6,8 Note: Doesn`t include Dispenser Assy See page 13 to order parts) (Black)
1Freezer Door (Includes 6,8 Note: Doesn`t include Dispenser Assy See page 13 to order parts) (White)
2Handle (White)
2Handle (Black)
3Shelf Bin
4WP4373559 Whirlpool Fitting
5Support, Inner Handle
6Connector Kit
8Door Gasket, Magnetic (Black)
8Door Gasket, Magnetic (White)
9Support, Handle (Black)
9Support, Handle (White)
10WPW10307490 Whirlpool Door Trim Assembly
11Thimble-Top
12WP2182179 Whirlpool Cam Closer
13Plug, Handle
14Bracket, Door Stop (Black)
14Bracket, Door Stop (Chrome)
15Plug, Handle (Bottom)
17WP3400906 Whirlpool Refrigerator Screw
19WP3196175 Whirlpool Screw
