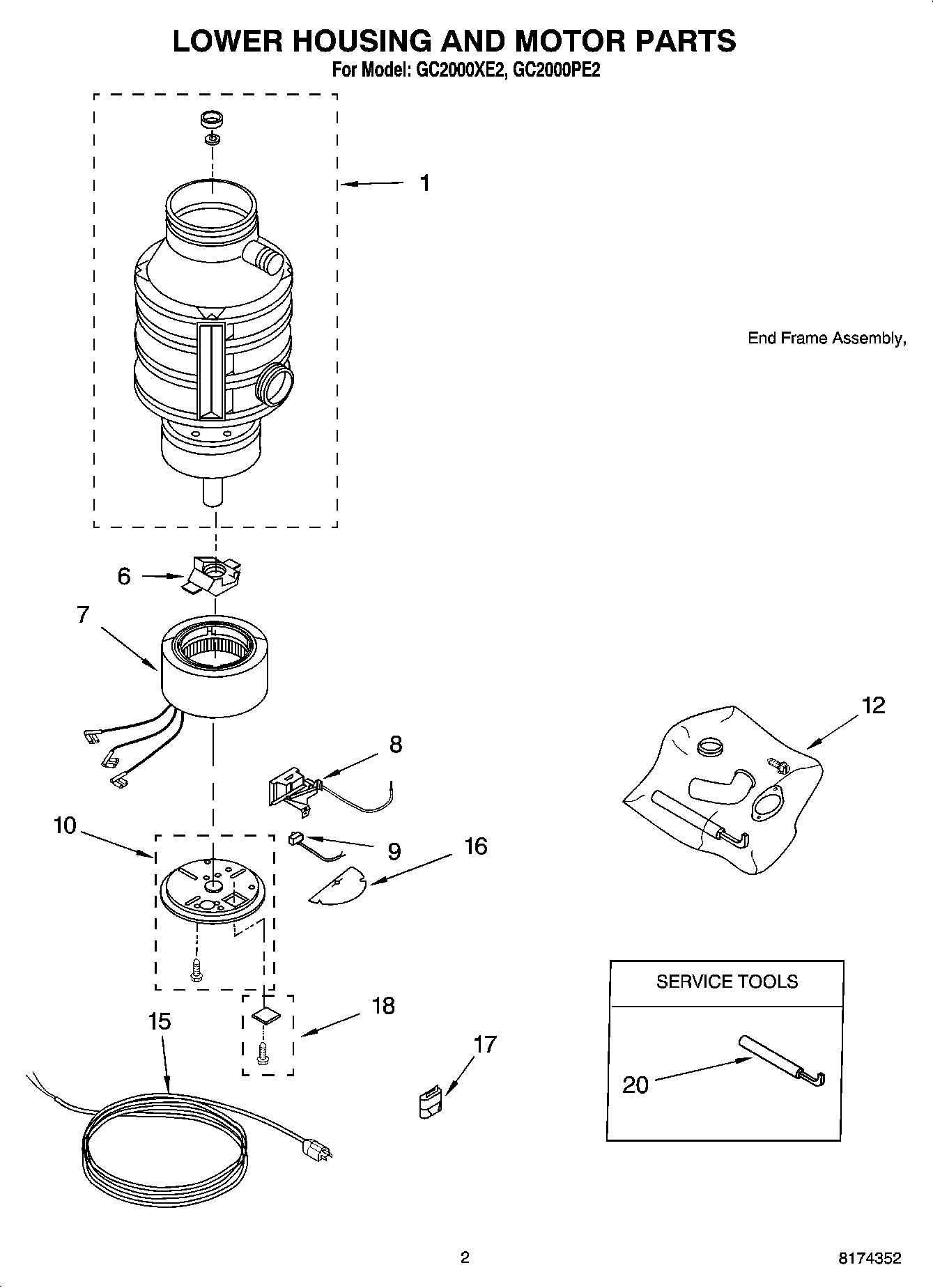

GC2000XE2 02 – LOWER HOUSING AND MOTOR PARTS

GC2000XE2 02 – LOWER HOUSING AND MOTOR PARTS

Written by

in

GC2000XE2 02 – LOWER HOUSING AND MOTOR PARTS

Products

PositionProduct
1Enclosure Assy (Not Serviceable)
64211322 Whirlpool Disposer Actuator
7Stator Assembly
88174312 Whirlpool Disposer Switch
9882726 Whirlpool Disposer Overload Protector
108174345 Whirlpool Frame
128174355A Whirlpool Disposer Installation Kit
15PLUG & CORD (GC1000PE4 ONLY)
17BUSHING (GC1000PE4 ONLY)
184211351 Whirlpool Shield
20Guide, Use And Care
20WP8174310 Whirlpool Disposer Wrench
20FOLLOWING PARTS NOT ILLUSTRATED
