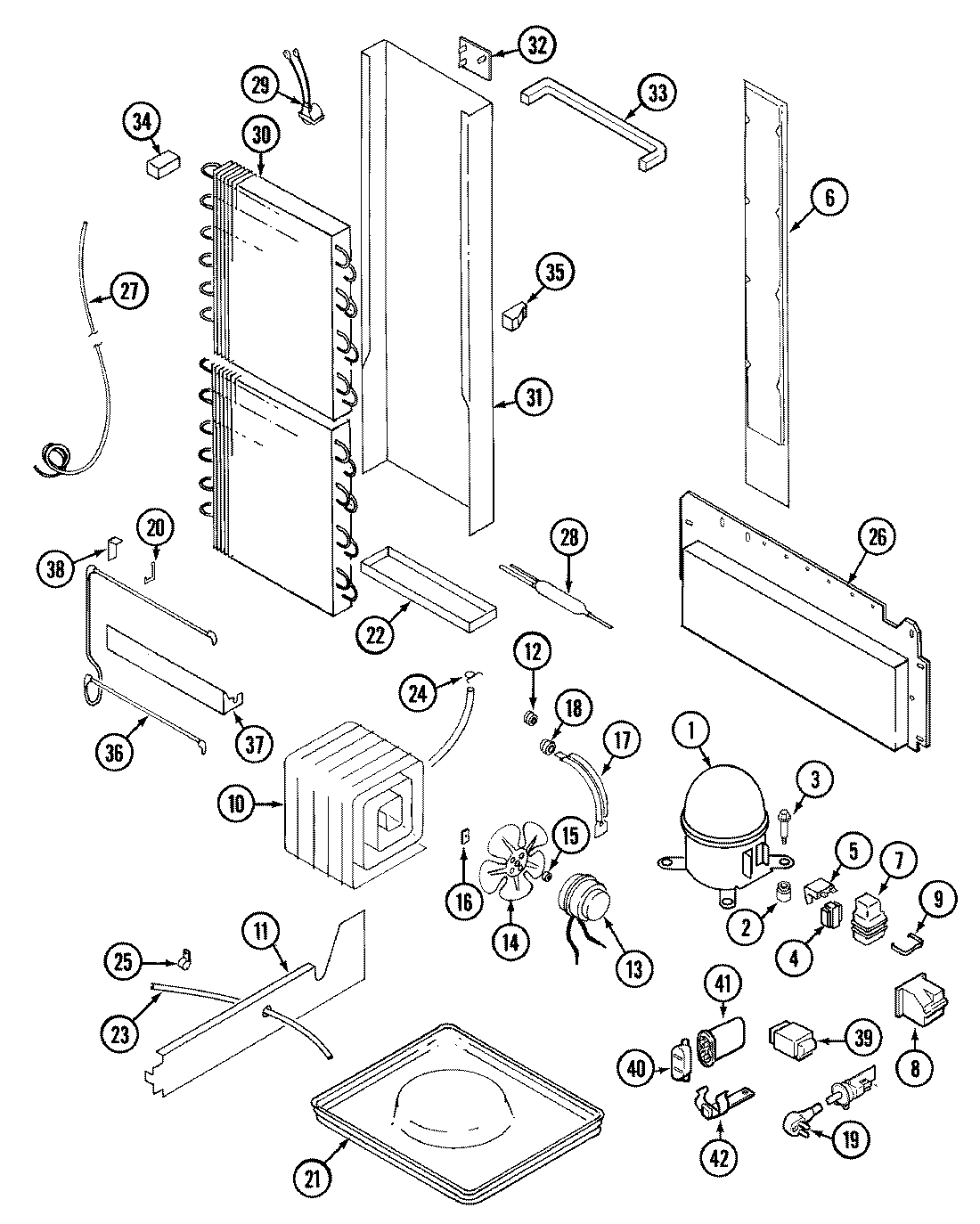

GC20B8C3EV 11 – UNIT COMPARTMENT & SYSTEM
Written by
in
GC20B8C3EV 11 – UNIT COMPARTMENT & SYSTEM
Products
Position
Product
NI
MAY 61001081
1
MAY 12001171
1
MAY 12001436
1
MAY 61001546
1
MAY 68840-2
1
MAY 61001834
1
MAY 12001334
2
MAY 17245-4
3
MAY 65275-9
4
MAY 61001832
4
MAY 61001079
5
MAY 61001786
5
MAY 61001833
5
MAY 61001080
6
MAY 400017-36
6
MAY 61001809
6
MAY 67094-1
6
MAY 61001241
6
MAY 61001851
7
MAY 69754-1
7
MAY 61001828
8
MAY 59596-1
8
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
9
MAY 52890-3
10
MAY 64998-1
10
MAY 414001-1
10
MAY 60408-2
11
MAY 70362-1
12
MAY 53351-1
13
MAY 61001208
13
MAY 68445-8
13
MAY 65275-33
14
WP12587601 Whirlpool Refrigerator Condenser Blade
15
MAY 61001686
16
WP486692 Whirlpool Refrigerator Nut
17
MAY 61001414
18
MAY 56933-1
19
MAY 61001835
20
MAY 52067-1
22
MAY 440015-300
22
MAY 53523-2
23
MAY 26911-25
24
WP596669 Whirlpool Hose Clamp
25
MAY 53516-5
26
MAY 65275-49
26
MAY 70460-3
26
WP488729 Whirlpool Refrigerator Door Screw
26
MAY 61001485
26
MAY 61001850
27
MAY 61001039
27
MAY 26088-23
28
WPW10143759 Whirlpool Dryer Filter
29
MAY 52085-37
30
MAY 52551-22
31
MAY 68834-2
32
MAY 55878-1
33
MAY 66325-18
34
MAY 65063-1
35
MAY 65064-1
36
MAY 69848-4
37
WP489478 Whirlpool Refrigerator Screw
37
MAY 29915-13
38
MAY 52561-1
39
MAY 61001829
40
MAY 61001831
41
MAY 61001827
42
MAY 405012-1
42
MAY 61001830
←
