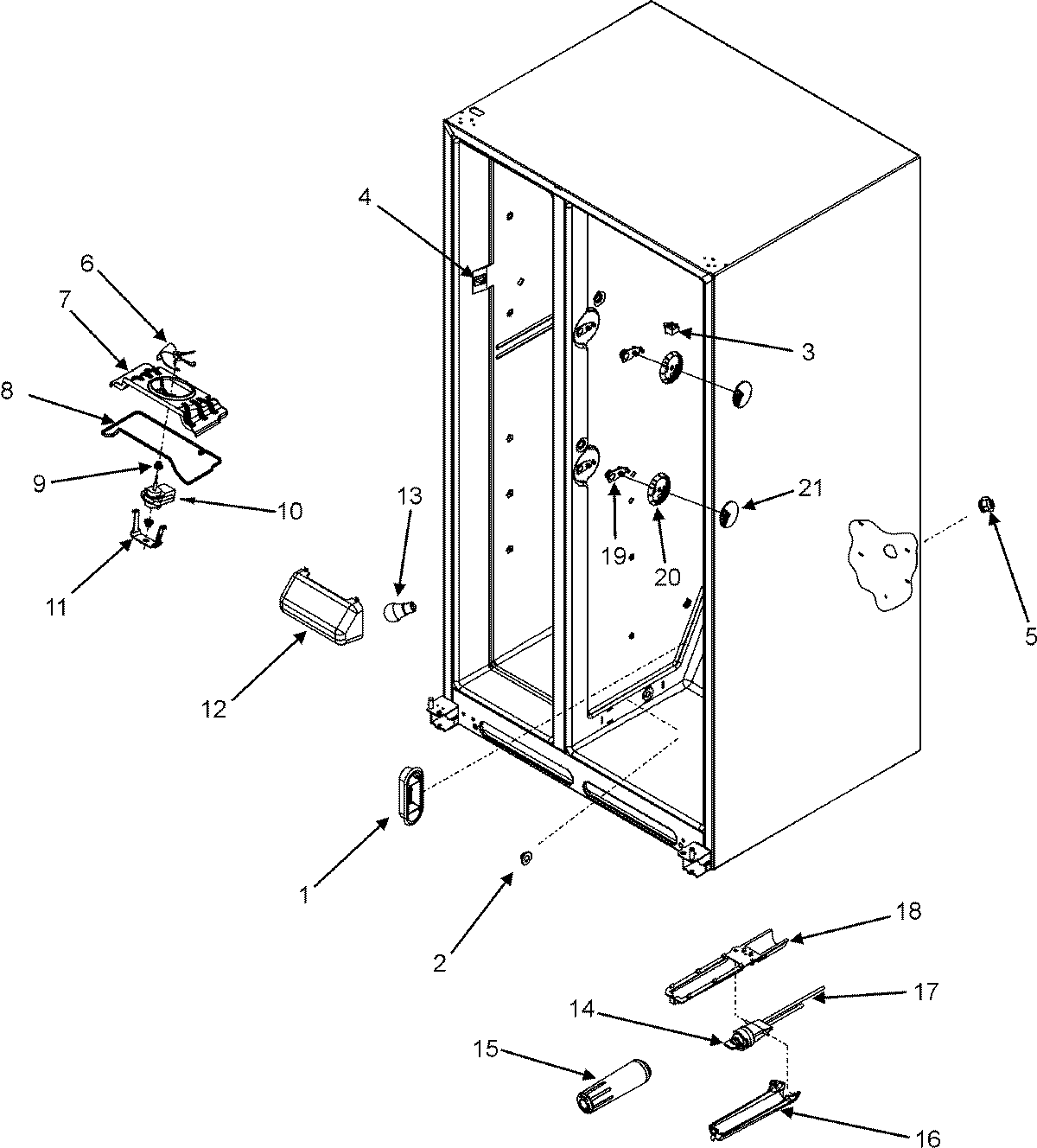

GC2224GEKB 05 – EVAP FAN/CRISP LIGHT/WATER FILTER

GC2224GEKB 05 – EVAP FAN/CRISP LIGHT/WATER FILTER

Written by

in

GC2224GEKB 05 – EVAP FAN/CRISP LIGHT/WATER FILTER

Products

PositionProduct
1MAY 12634801
2MAY 67002826
3W11291138 Whirlpool Refrigerator Door Switch
4SWITCH, LIGHT
5MAY 67005016
6MAY 12217201
7Shroud, Evap Fan
8MAY 67001508
9WP67002780 Whirlpool Refrigerator Grommet
10MAY 67005023
11WP67005633 Whirlpool Refrigerator Bracket
12MAY 67001507
13WP67002552 Whirlpool Refrigerator Light Bulb
14MAY 67003146
15MAY 67003640
16WP12568001 Whirlpool Filter Cover
17MAY 67004843
18MAY 12688503
19MAY 67002827
20MAY 67002225
21MAY 67004525
