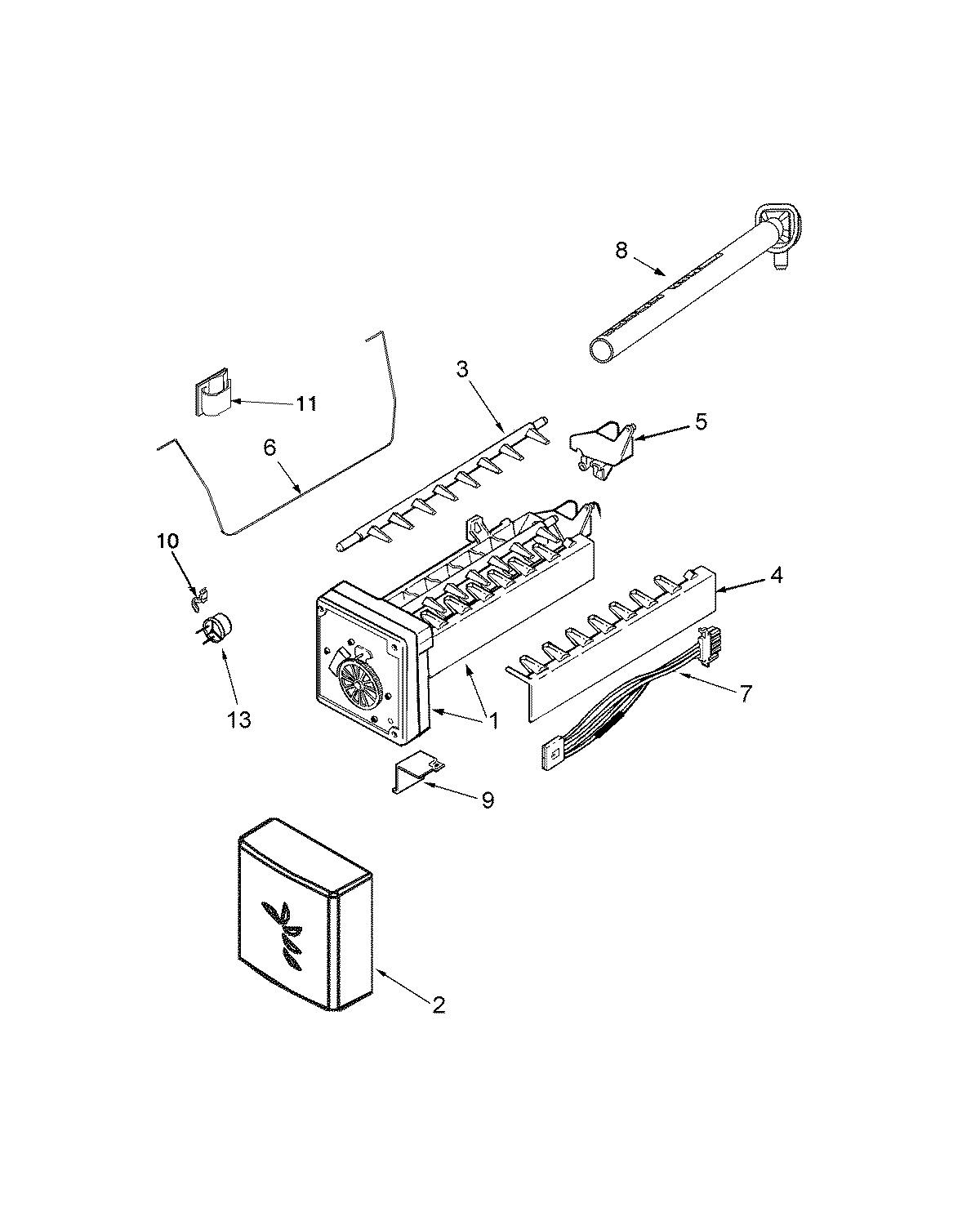

GC2224GEKW 14 – ICE MAKER

Products

Position	Product
NI	SHIELD, ICE MAKER
NI	MAY 95093-1
NI	MAY B5720302
NI	WP627985 Whirlpool Icemaker Cycling Thermostat
1	MAY D7846305
1	MAY M0238833
1	BRKT, ICE MAKER
2	Cover
3	WP627843 Whirlpool Refrigerator Ejector Arm
4	WP2182124 Whirlpool Refrigerator Stripper Arm
5	WP628356 Whirlpool Refrigerator Fill Cup
6	MAY 12671401Q
7	MAY 67002281
8	MAY 67003663
9	MAY 95108-1
9	BRACKET, MODULE & HEATER
10	WP2315522 Whirlpool Refrigerator Clip
11	WPM0104106 Whirlpool Refrigerator Clip
13	MAY 67005031
