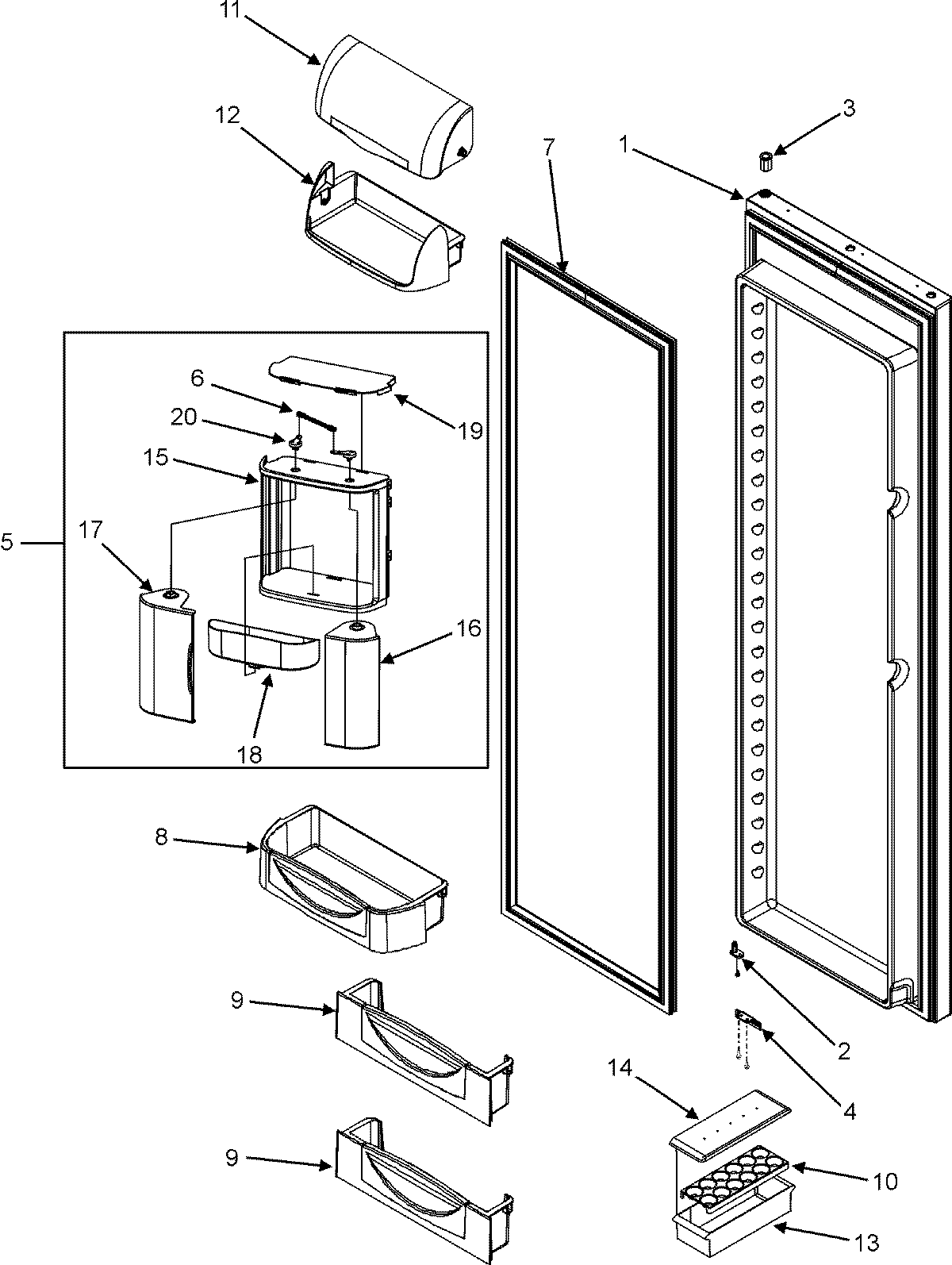

GC2225GEK3 15 – REFRIGERATOR DOOR (GC2225GEK3/5/9)

GC2225GEK3 15 – REFRIGERATOR DOOR (GC2225GEK3/5/9)

Written by

in

GC2225GEK3 15 – REFRIGERATOR DOOR (GC2225GEK3/5/9)

Products

PositionProduct
1MAY 12818239W
1MAY 67005774
2CLOSURE, DOOR (BLK)
2MAY M0220432
2MAY 12113204
3MAY 10961002
4MAY M0211018
4STOP, DOOR (WHT)
4MAY 12636401W
4SCREW
5MAY 67003321
6Linkage, Center Chiller (2)
7MAY 67003966
8MAY 67004229
9MAY 67004473
10MAY 10436506
11MAY 67001325
12MAY 67002304
13MAY 10423131
14MAY 10436404
15Frame, Chiller (Large)
16Door Chiller (RT) (Large)
17Door Chiller (LT) (Large)
18Tray, Chiller (2)
19Cover, Chiller (2)
20Linkage, Chiller (4)
