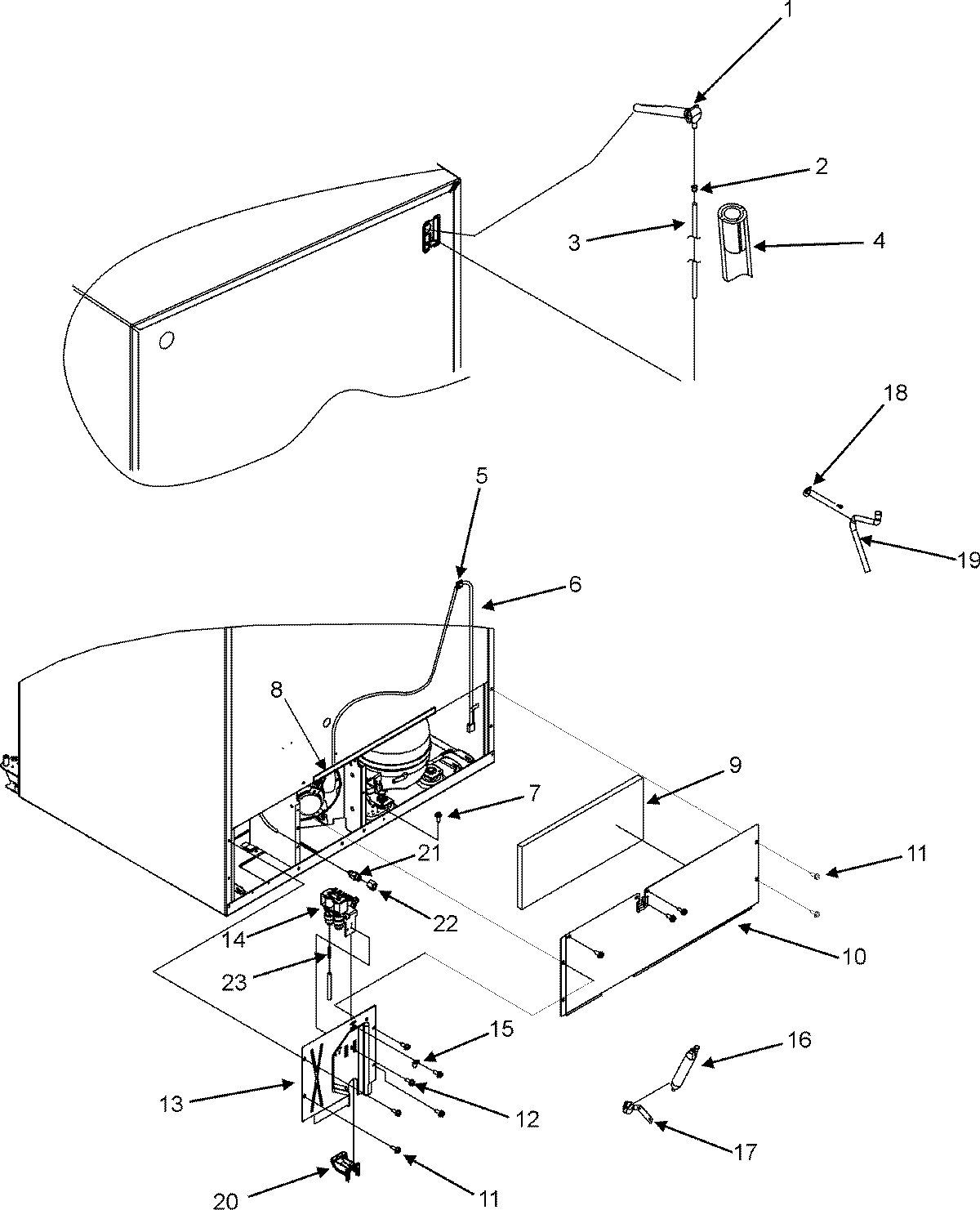

GC2225GEK5 01 – CABINET BACK (GC2225GEK3/5/9)

GC2225GEK5 01 – CABINET BACK (GC2225GEK3/5/9)

Written by

in

GC2225GEK5 01 – CABINET BACK (GC2225GEK3/5/9)

Products

PositionProduct
1MAY 67003663
2Clip
3WPB5705307 Whirlpool Refrigerator Tube
4MAY A3223101
5WPM0104106 Whirlpool Refrigerator Clip
6MAY 67006664
6MAY 67002229
7MAY M0239216
8Gasket
967003796 Whirlpool Refrigerator Fiber Acoustic
10MAY 67002230
11MAY M0238616
11MAY 67006615
12681390 Whirlpool Refrigerator Screw
13MAY 67005117
14MAY 12544116
14MAY 67005118
15W10833902 Whirlpool Refrigerator Clamp
16DRIER
17W10709801 Whirlpool Refrigerator Screw
17MAY 10547002
18MAY M0102303
18WP489069 Whirlpool Compactor Screw
19MAY 12580401
2012831101 Whirlpool Refrigerator Tube Clamp
21MAY 67005003
22MAY 67004844
23MAY A1055104
