GC2225GEK5 07 – FOUNTAIN (GC2225GEK3/5/9)

GC2225GEK5 07 – FOUNTAIN (GC2225GEK3/5/9)

Written by

in

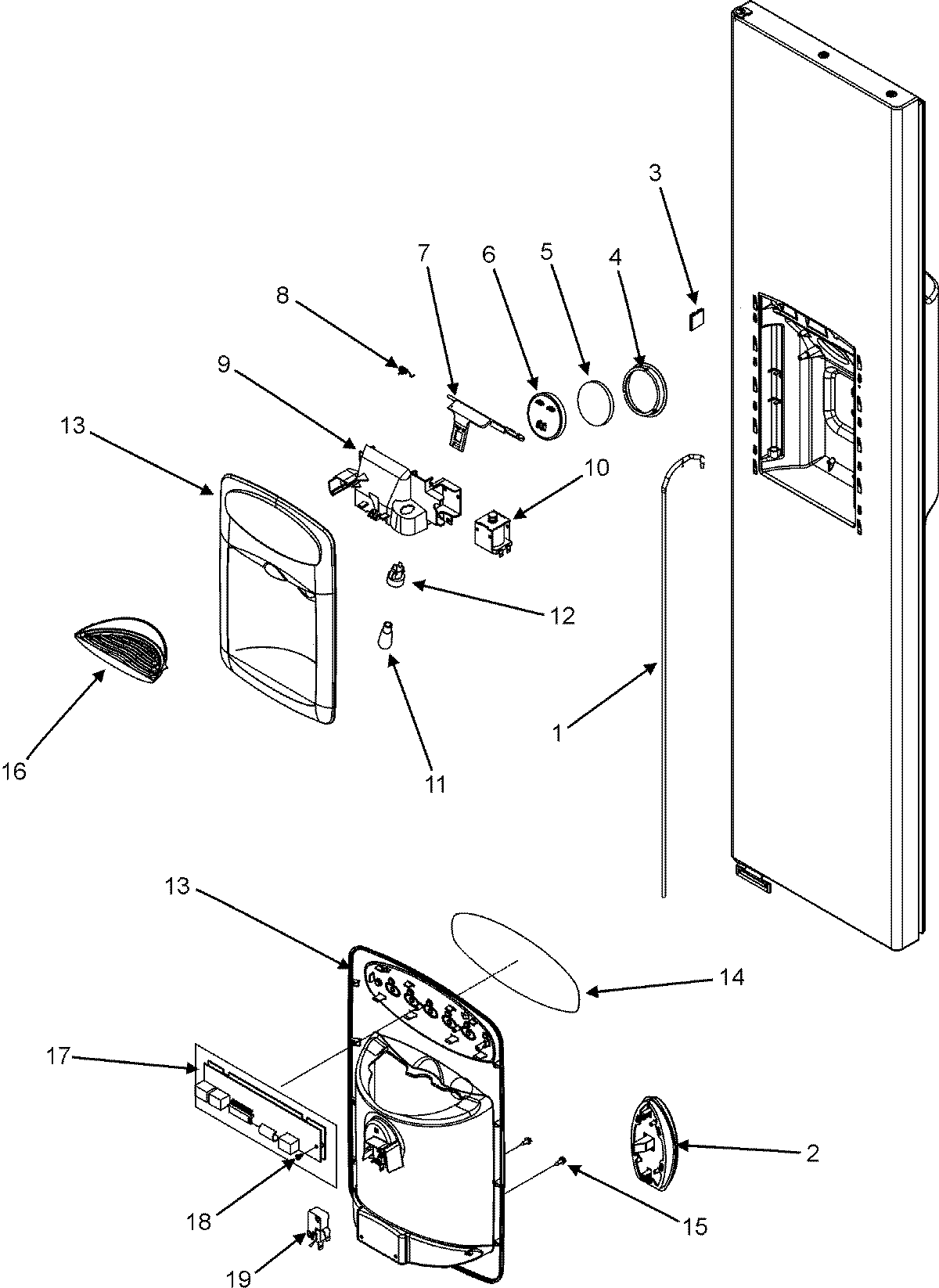

GC2225GEK5 07 – FOUNTAIN (GC2225GEK3/5/9)

Products

PositionProduct
1W10833902 Whirlpool Refrigerator Clamp
167004938 Whirlpool Refrigerator Waterline Assembly
2ACTR PAD FRAME ASSY. (BLK)
3MAY M0104102
4MAY 12665101
5MAY 12563401
6WP12562701 Whirlpool Dispenser Door
7MAY 67004119
8WP12565502 Whirlpool Refrigerator Spring
9SCREW, SM
9MAY 12703606
9MAY 67005010
10MAY 67002170
10MAY Y67006001
10WP488234 Whirlpool Air Conditioner Screw
11Bulb, Light
12MAY 12617501
13MAY 67006015
13MAY 67007003
14INSERT, FACADE (BLK)
15Screw (2)
16WP67005636 Whirlpool Refrigerator Dispenser Drip Tray
17MAY 67005013
17MAY 67007154
18MAY M0237902
18MAY 67006683
19WP12575501 Whirlpool Refrigerator Micro Switch
